- Lifting Capacity3 t
- Max Lift Height10.8 m
- Max Working Radius10 m

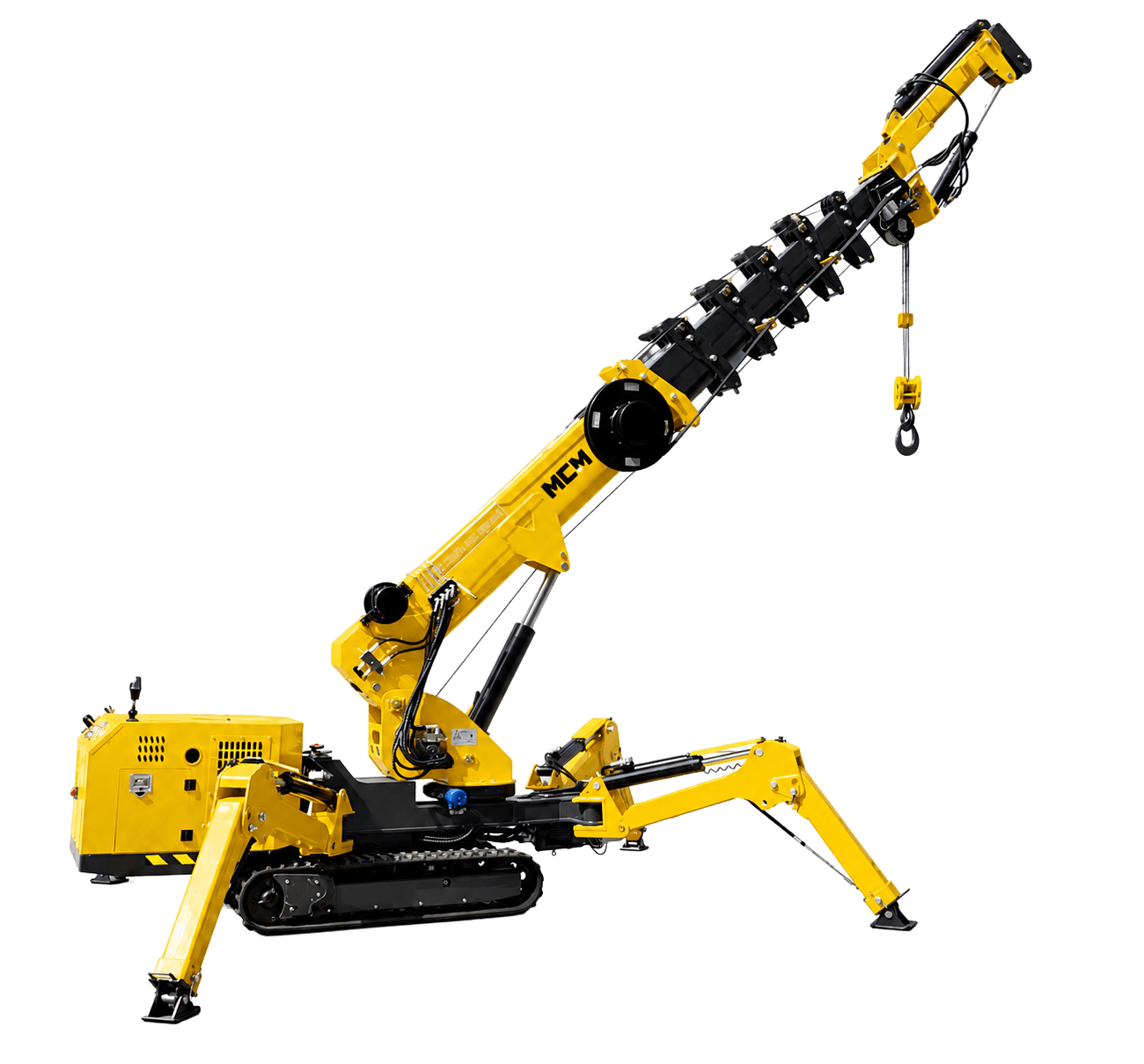

MCM SC160 Spider Crane
Be the first to reviewThe MCM SC160 Spider Crane has 25 m max lift height and 85 kW (Yuchai diesel) engine power. It costs R 1 399 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 1 November 2026
R 1 399 000excl. VAT
Lifting Capacity
16 tMax Lift Height
25 mMax Working Radius
23 mDead Weight
16.5 tEngine Power
85 kW (Yuchai diesel)Boom
5-section telescopic, 6.5 m–25 mDelivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: MCM SC160 Spider Crane
- Type
- Spider Cranes
- Brand
- MCM
- Size
- Largest of our 7 spider cranes by lifting capacity: 16 t
- Next size down
- MCM SC120 Spider Crane: 12 t, R 1 275 000 excl. VAT
- Price
- R 1 399 000 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview
The MCM SC160 is MCM’s largest spider crane: 16 t capacity, 25 m maximum ground lift and a 23 m operating radius from an 85 kW Yuchai diesel, on tracks and outriggers that set up where truck cranes cannot.
The heaviest lifter in the spider range
The MCM SC160 is built for picks that outgrow the SC120. It lifts 16 t, its 5-section telescopic boom runs from 6.5 m to 25 m, and it reaches a 23 m maximum operating radius. It is powered by an 85 kW Yuchai diesel, the most powerful engine in the range.
Still a spider crane
For all that reach, the SC160 travels at 7.2 m long, 2.0 m wide and 2.48 m high on hydraulic-drive steel tracks with 400 mm shoes, at up to 2.5 km/h and up 25° (36%) slopes. Its outriggers screw out manually and then telescope and support hydraulically, to a maximum spread of 8.6 m long and 7.3 m (front) by 6.2 m (rear). A compact set-up of about 7.4 × 5.2 m is possible where space is tight.
Key figures
- Rated capacity: 16 t (at short radius; follow the load chart as radius increases)
- Maximum ground lift: 25 m
- Maximum operating radius: 23 m
- Boom: 6 m × 5 sections, 6.5–25 m, extended in about 40 s
- Boom angle 0–78° (about 17 s); 360° continuous slewing (about 42 s)
- Hoist: Φ12 mm × 160 m wire rope, two-speed hook
- Engine: Yuchai 85 kW diesel, electric start, 45 L tank, 24 V 45 Ah battery
- Dead weight: 16.5 t
Jobs suited to the SC160
Heavy precast and steel on constrained city sites, large plant and transformer placements, high-level glazing on taller buildings, and industrial maintenance lifts inside halls where only a tracked machine can get to the load.
Options
Torque controller, remote control, man cradle and a hydraulic flying jib are available, and the crane can be supplied in several colours. For lighter work, the SC100 (10 t) and SC120 (12 t) are in the same spider crane range.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
MCM SC160 Spider Crane — Frequently Asked Questions
How much does the MCM SC160 Spider Crane cost?
+
The MCM SC160 Spider Crane starts from R 1 399 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the MCM SC160 Spider Crane?
+
Key specs for the MCM SC160 Spider Crane include Lifting Capacity: 16 t, Max Lift Height: 25 m, Max Working Radius: 23 m, Dead Weight: 16.5 t, Engine Power: 85 kW (Yuchai diesel). See the full spec sheet on this page or request the brochure for complete details.
What is the MCM SC160 Spider Crane used for?
+
The MCM SC160 Spider Crane is a spider crane used for compact lifting in confined or sensitive indoor and outdoor spaces. It is built for South African conditions and backed by local parts and service support.
Can I finance the MCM SC160 Spider Crane?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MCM SC160 Spider Crane?
+
The MCM SC160 Spider Crane includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MCM SC160 Spider Crane nationwide?
+
Yes. MCM Group delivers the MCM SC160 Spider Crane anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MCM SC160 Spider Crane in South Africa?
+
Buy the MCM SC160 Spider Crane from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 399 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
Compare Spider Cranes models
Key specifications and prices side by side to help you pick the right machine.
| Model | Lifting Capacity | Max Lift Height | Max Working Radius | From* (excl. VAT) |
|---|---|---|---|---|
| MCM SC160 Spider Crane | 16 t | 25 m | 23 m | R 1 399 000 |
| MCM SC30 Spider Crane | 3 t | 10.8 m | 10 m | R 655 000 |
| MCM SC120 Spider Crane | 12 t | 21 m | 19 m | R 1 275 000 |
| MCM SC100 Spider Crane | 10 t | 21 m | 18 m | R 1 095 000 |
| MCM SC80 Spider Crane | 8 t | 21 m | 18 m | R 955 000 |
* Prices exclude VAT.
