MCM SC120 Spider Crane
Be the first to reviewThe MCM SC120 Spider Crane has 21 m max lift height and 76 kW (Yunnei diesel) engine power. It costs R 1 275 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 1 November 2026
R 1 275 000excl. VAT
Lifting Capacity
12 tMax Lift Height
21 mMax Working Radius
19 mDead Weight
12.5 tEngine Power
76 kW (Yunnei diesel)Boom
5-section telescopic, 5.5 m–21 mDelivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: MCM SC120 Spider Crane
- Type
- Spider Cranes
- Brand
- MCM
- Size
- 2nd largest of our 7 spider cranes by lifting capacity: 12 t
- Next size down

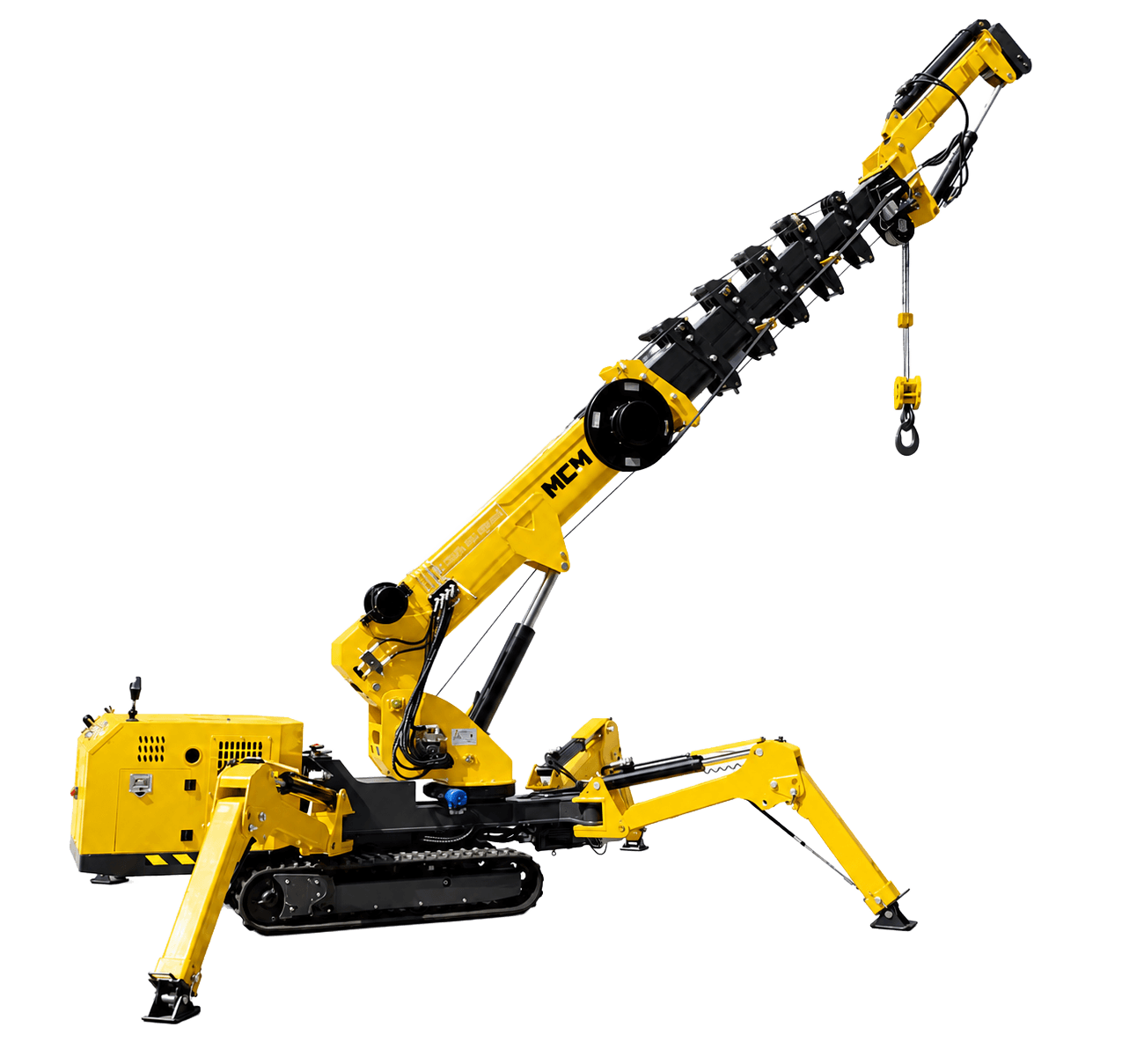

- MCM SC100 Spider Crane: 10 t, R 1 095 000 excl. VAT
- Next size up
- MCM SC160 Spider Crane: 16 t, R 1 399 000 excl. VAT
- Price
- R 1 275 000 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview
The MCM SC120 spider crane lifts 12 t, reaches a 21 m ground lift and a 19 m operating radius, and walks itself to the lift on steel tracks, bringing mobile-crane capacity to sites with no room for one.
12 tons, self-propelled, on tracks
The MCM SC120 adds 2 t of capacity and 1 m of radius to the SC100 while staying narrow enough for restricted sites: it travels at 1.86 m wide and 6.15 m long, on hydraulic-drive steel tracks that handle 25° (36%) slopes. Once at the lifting point, its four outriggers screw out manually and then telescope and support hydraulically, extending to a maximum of 7.6 m (length) by 6.7 m (front) and 5.6 m (rear).
What the SC120 lifts
| Rated capacity | 12 t |
| Maximum ground lift | 21 m |
| Maximum operating radius | 19 m |
| Boom | 5-section telescopic, 5.5–21 m |
| Boom extension | about 60 s |
| Boom angle | 0–78° (about 17 s) |
| Slewing | 360° continuous (about 42 s) |
| Hoist rope | Φ12 mm × 120 m, two-speed hook |
| Dead weight | 12.5 t |
As with any crane, capacity falls as the radius grows. Plan every lift from the SC120 load chart, not from the headline 12 t.
Engine
A 76 kW Yunnei diesel with electric start runs the crane, with a 40 L fuel tank and 24 V 45 Ah battery. The start range is rated from −50 °C to 45 °C.
Typical SC120 work
- Curtain-wall glazing and facade panels on multi-storey projects
- Steel erection and roof trusses between existing structures
- Machine installation inside factories and plant rooms
- Lifts over walls into back yards, courtyards and basements
Options and range
Remote control, torque controller, man cradle and a hydraulic flying jib are optional. Need more? The SC160 lifts 16 t to 25 m. Compare all spider cranes in the spider crane range.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
MCM SC120 Spider Crane — Frequently Asked Questions
How much does the MCM SC120 Spider Crane cost?
+
The MCM SC120 Spider Crane starts from R 1 275 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the MCM SC120 Spider Crane?
+
Key specs for the MCM SC120 Spider Crane include Lifting Capacity: 12 t, Max Lift Height: 21 m, Max Working Radius: 19 m, Dead Weight: 12.5 t, Engine Power: 76 kW (Yunnei diesel). See the full spec sheet on this page or request the brochure for complete details.
What is the MCM SC120 Spider Crane used for?
+
The MCM SC120 Spider Crane is a spider crane used for compact lifting in confined or sensitive indoor and outdoor spaces. It is built for South African conditions and backed by local parts and service support.
Can I finance the MCM SC120 Spider Crane?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MCM SC120 Spider Crane?
+
The MCM SC120 Spider Crane includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MCM SC120 Spider Crane nationwide?
+
Yes. MCM Group delivers the MCM SC120 Spider Crane anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MCM SC120 Spider Crane in South Africa?
+
Buy the MCM SC120 Spider Crane from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 275 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
Compare Spider Cranes models
Key specifications and prices side by side to help you pick the right machine.
| Model | Lifting Capacity | Max Lift Height | Max Working Radius | From* (excl. VAT) |
|---|---|---|---|---|
| MCM SC120 Spider Crane | 12 t | 21 m | 19 m | R 1 275 000 |
| MCM SC30 Spider Crane | 3 t | 10.8 m | 10 m | R 655 000 |
| MCM SC160 Spider Crane | 16 t | 25 m | 23 m | R 1 399 000 |
| MCM SC100 Spider Crane | 10 t | 21 m | 18 m | R 1 095 000 |
| MCM SC80 Spider Crane | 8 t | 21 m | 18 m | R 955 000 |
* Prices exclude VAT.
