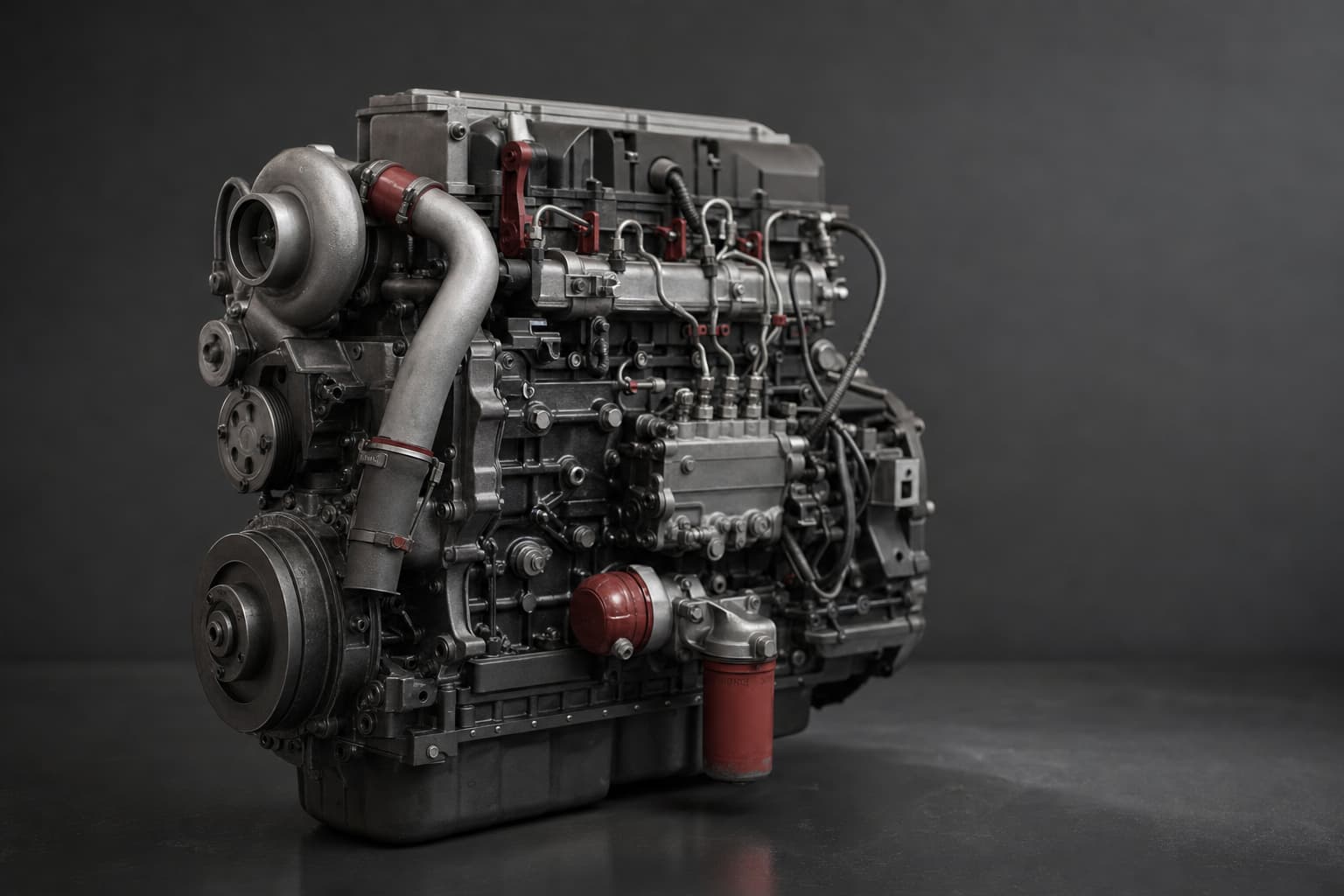

Perkins diesel engine

Diesel Engines

Perkins

Industrial, Agricultural & Construction Diesel Engines (400, 900/904, 1100, 1200 Series)

Choose Perkins and you choose more than 90 years of off-highway diesel pedigree. Perkins engines are the power behind many of the world's most trusted forklifts, wheel loaders, backhoes, telehandlers, tractors, generator sets, pumps and compactors, and they are engineered to keep working in the toughest South African conditions - heat, dust and long duty cycles. Every unit is built for a lifetime of low cost of ownership: proven, field-validated components, optimised fuel consumption, and compact "drop-in" installation envelopes that make it easy to swap one engine for another in the same family. Backed by Perkins' global distribution and aftermarket network (Perkins is a Caterpillar company), owners get genuine parts, technical support and warranty cover wherever they operate - which is exactly why importers and OEMs across the industrial, agricultural and construction sectors specify Perkins as their power of choice.

Power18.4 kW - 239 kW (24 hp - 320 hp) across the small-to-mid off-highway lineup10 models

About Perkins

Perkins Engines Company Ltd was founded in 1932 in Peterborough, England by Frank Perkins and has grown into one of the world's leading off-highway diesel engine manufacturers, producing tens of millions of engines for industrial, agricultural, construction, materials-handling and power-generation use. The company was acquired by Caterpillar Inc. in 1998 and now operates as a wholly owned Caterpillar subsidiary, giving it global manufacturing and a worldwide parts-and-service footprint. Perkins built its reputation on classics such as the 6.354 (over a million units made between 1960 and 1996) and today organises its compact-to-mid lineup into clearly defined families - the 0.5-2.2 litre 400 Series, the 2.8/3.6 litre 900/904 Series, and the 4.4-7.1 litre 1100 and 1200 Series - reaching up through larger 1700, 2000, 2200, 2400, 2500, 2600 and 2800/4000 Series units. Engine technology spans naturally aspirated and turbocharged (and turbocharged-aftercooled/charge-cooled) configurations, mechanical indirect-injection on the smallest models and electronically controlled high-pressure common-rail fuel systems on the rest. The current 'J' generation meets EU Stage V and U.S. EPA Tier 4 Final using a DOC + DPF aftertreatment package, with SCR added on the larger 1206J, delivering significant gains in power density and torque over previous generations while a modular design keeps installation footprints and OEM development costs down.

Perkins Engine Models (10)

Perkins 403J-17 / 403J-E17T

Power
18.4 kW (24 hp) naturally aspirated, up to 36 kW (48 hp) turbocharged
Cylinders
3, in-line
Displacement
1.7 L
Bore x Stroke
84 x 100 mm
Aspiration
Naturally aspirated (403J-17) / Turbocharged (403J-E17T)
Emission tier
EU Stage V / U.S. EPA Tier 4 Final
Applications
Compact construction, materials handling (small forklifts), small gensets, agricultural, pumps

Applications: Compact construction equipment, small forklifts and materials handling, small generator sets, agricultural machinery and pumps

Request price

Perkins 404J-E22T

Power
45 kW (60 hp)
Cylinders
4, in-line
Displacement
2.2 L
Bore x Stroke
84 x 100 mm
Aspiration
Turbocharged
Emission tier
EU Stage V / U.S. EPA Tier 4 Final
Applications
Forklifts/materials handling, compact construction, gensets, pumps, agricultural

Applications: Forklifts and materials handling, compact construction equipment, generator sets, pumps and agricultural machinery

Request price

Perkins 404J-E22TA

Power
Up to 55 kW (74 hp)
Cylinders
4, in-line
Displacement
2.2 L
Bore x Stroke
84 x 100 mm
Aspiration
Turbocharged aftercooled
Emission tier
EU Stage V / U.S. EPA & CARB Tier 4 Final / Japan 2014 (Tier 4 Final)
Applications
Materials handling, construction, mining, aircraft ground support, agricultural, gensets

Applications: Materials handling, construction, mining, aircraft ground support, agricultural equipment and generator sets

Request price

Perkins 404D-22 (legacy)

Power
31-38 kW (42-51 hp) @ 2200-3000 rpm
Cylinders
4, in-line
Displacement
2.2 L
Bore x Stroke
84 x 100 mm
Aspiration
Naturally aspirated
Emission tier
EU Stage IIIA / U.S. EPA Tier 4 Interim equivalent
Applications
Off-highway industrial, compact machines, pumps, small gensets

Applications: Off-highway industrial machines, compact construction, pumps and small generator sets

Request price

Perkins 904J-E36TA

Power
55-106 kW (74-142 hp) @ 2000-2400 rpm
Cylinders
4, in-line
Displacement
3.6 L
Bore x Stroke
98 x 120 mm
Aspiration
Turbocharged aftercooled
Emission tier
EU Stage V / U.S. EPA & CARB Tier 4 Final / Japan 2014 (DOC + DPF, optional SCR)
Applications
Construction, agriculture (tractors), industrial, materials handling, gensets

Applications: Construction equipment, agricultural tractors, general industrial machinery, materials handling and generator sets

Request price

Perkins 1104D-44T

Power
55.5-74.5 kW (75-99.9 hp) @ 2200-2400 rpm
Cylinders
4, in-line
Displacement
4.4 L
Bore x Stroke
105 x 127 mm
Aspiration
Turbocharged
Emission tier
EU Stage IIIA / U.S. EPA Tier 3 equivalent
Applications
Gensets, tractors, telehandlers, loaders, compressors, materials handling

Applications: Generator sets, agricultural tractors, telehandlers, wheel loaders, compressors and materials handling

Request price

Perkins 1104D-44TA

Power
68-83 kW (91.2-111.3 hp) @ 2200-2400 rpm
Cylinders
4, in-line
Displacement
4.4 L
Bore x Stroke
105 x 127 mm
Aspiration
Turbocharged aftercooled (air-to-air charge cooled)
Emission tier
EU Stage IIIA / U.S. EPA Tier 3 equivalent
Applications
Construction, agriculture, materials handling, gensets, compressors

Applications: Construction equipment, agricultural machinery, materials handling, generator sets and compressors

Request price

Perkins 1104C-44TA (legacy)

Power
97 kW (130.1 hp) @ 2200 rpm
Cylinders
4, in-line
Displacement
4.4 L
Bore x Stroke
105 x 127 mm
Aspiration
Turbocharged aftercooled
Emission tier
EU Stage II / U.S. EPA Tier 2 equivalent
Applications
Construction, agriculture, gensets, materials handling

Applications: Construction equipment, agricultural machinery, generator sets and materials handling

Request price

Perkins 1204J-E44TA

Power
Up to 110 kW (147.6 hp)
Cylinders
4, in-line
Displacement
4.4 L
Bore x Stroke
105 x 127 mm
Aspiration
Turbocharged aftercooled
Emission tier
EU Stage V / U.S. EPA Tier 4 Final
Applications
Construction, agriculture, materials handling, general industrial, gensets

Applications: Medium-sized construction machines, agricultural equipment, materials handling, general industrial machinery and generator sets

Request price

Perkins 1206J-E70TTA

Power
151-239 kW (202-320 hp)
Cylinders
6, in-line
Displacement
7.0 L
Bore x Stroke
105 x 135 mm
Aspiration
Series turbocharged aftercooled
Emission tier
EU Stage V / U.S. EPA & CARB Tier 4 Final (DOC + DPF + SCR)
Applications
Large/medium construction, agriculture, materials handling, general industrial, gensets

Applications: Large and medium-sized construction machines, agricultural equipment, materials handling, general industrial applications and generator sets

Request price
