MCM SC80 Spider Crane
Be the first to reviewThe MCM SC80 Spider Crane has 21 m max lift height and 58 kW (Yuchai diesel) engine power. It costs R 955 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 22 September 2026
R 955 000excl. VAT
Lifting Capacity
8 tMax Lift Height
21 mMax Working Radius
18 mDead Weight
8.7 tEngine Power
58 kW (Yuchai diesel)Boom
5-section telescopic, 5.5 m–21 mDelivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: MCM SC80 Spider Crane
- Type
- Spider Cranes
- Brand
- MCM
- Size
- 4th smallest of our 7 spider cranes by lifting capacity: 8 t
- Next size down
- MCM SC50 Spider Crane: 5 t, R 745 000 excl. VAT
- Next size up
- MCM SC100 Spider Crane: 10 t, R 1 095 000 excl. VAT
- Price
- R 955 000 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview

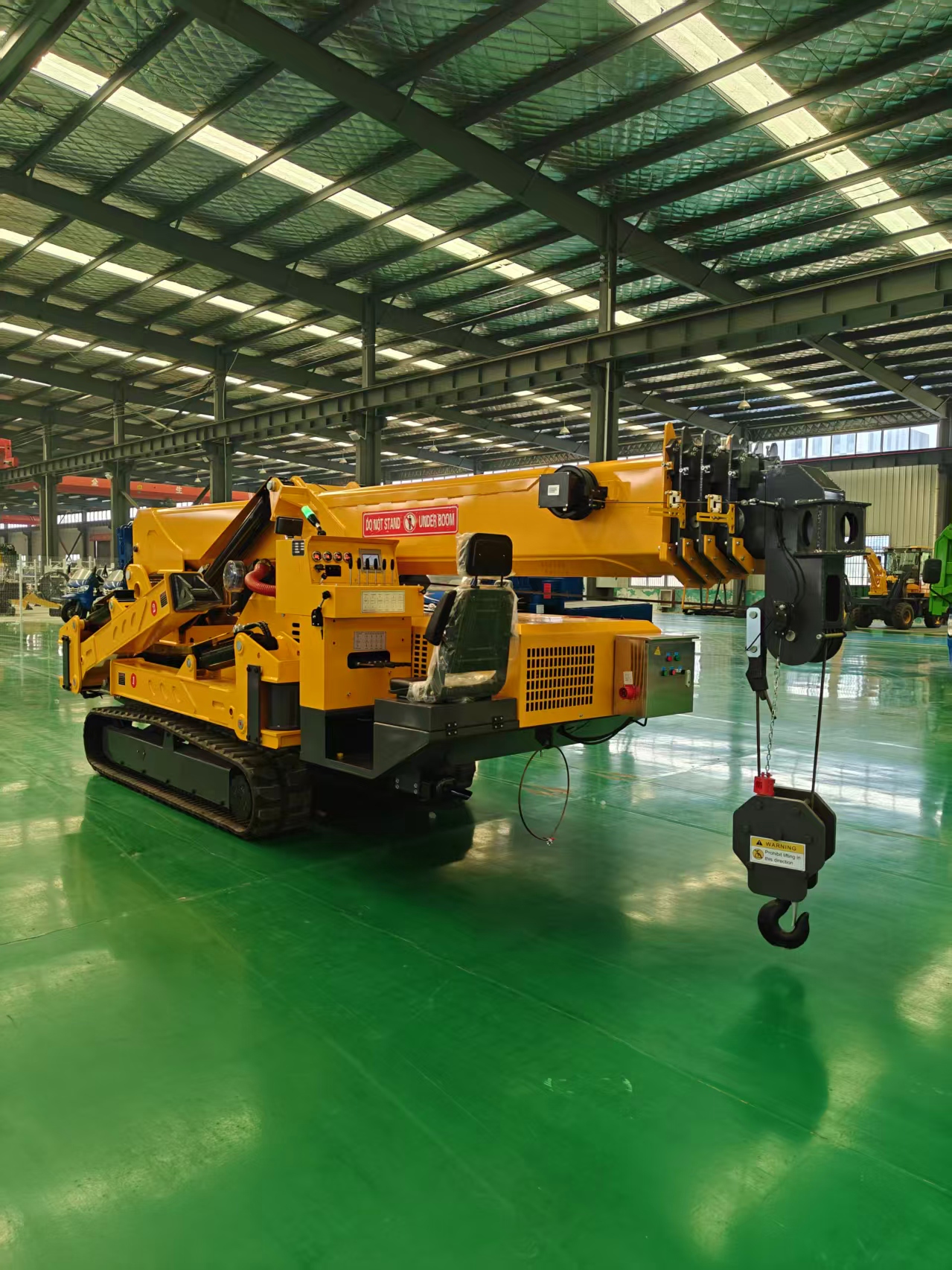

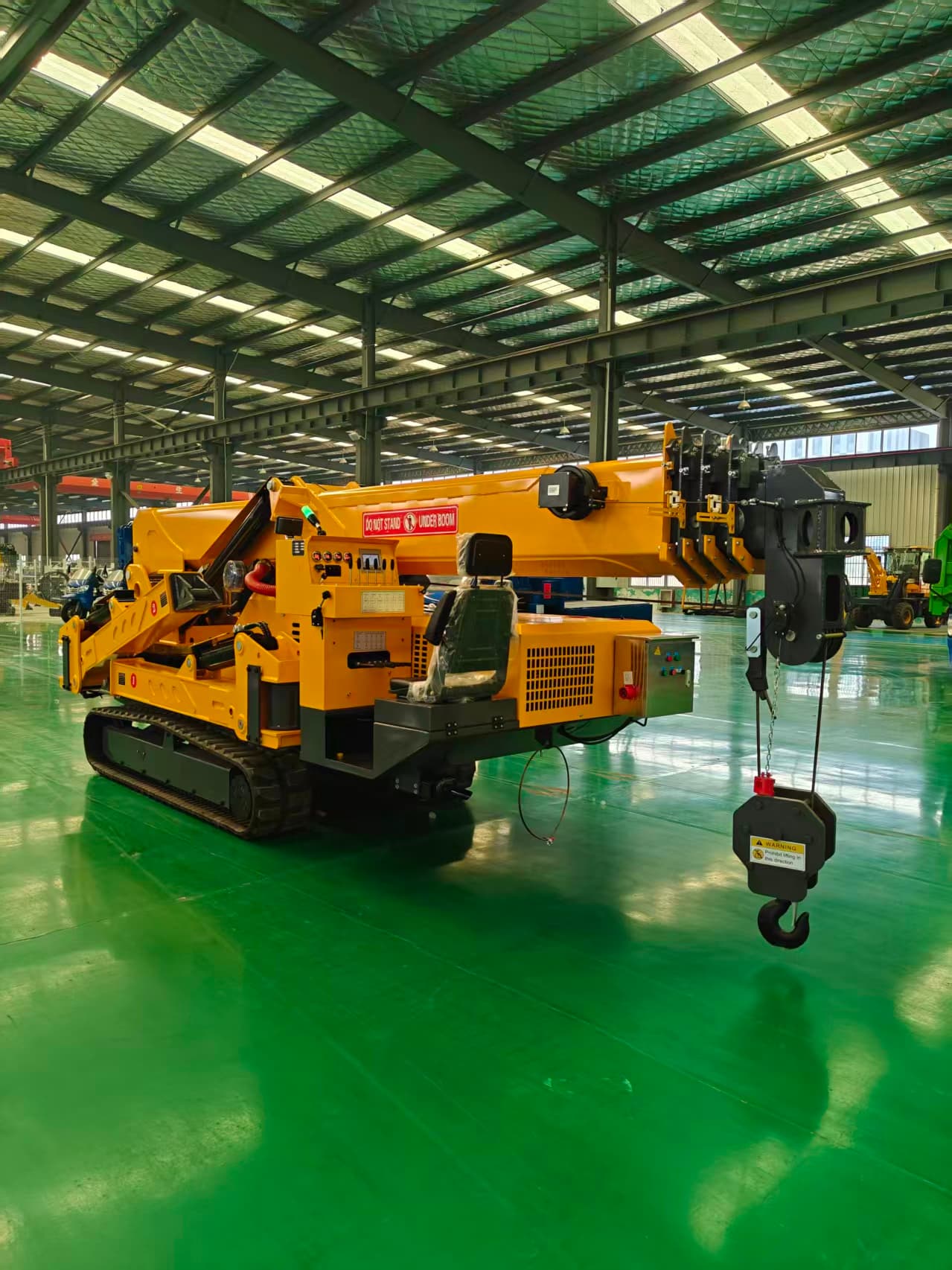

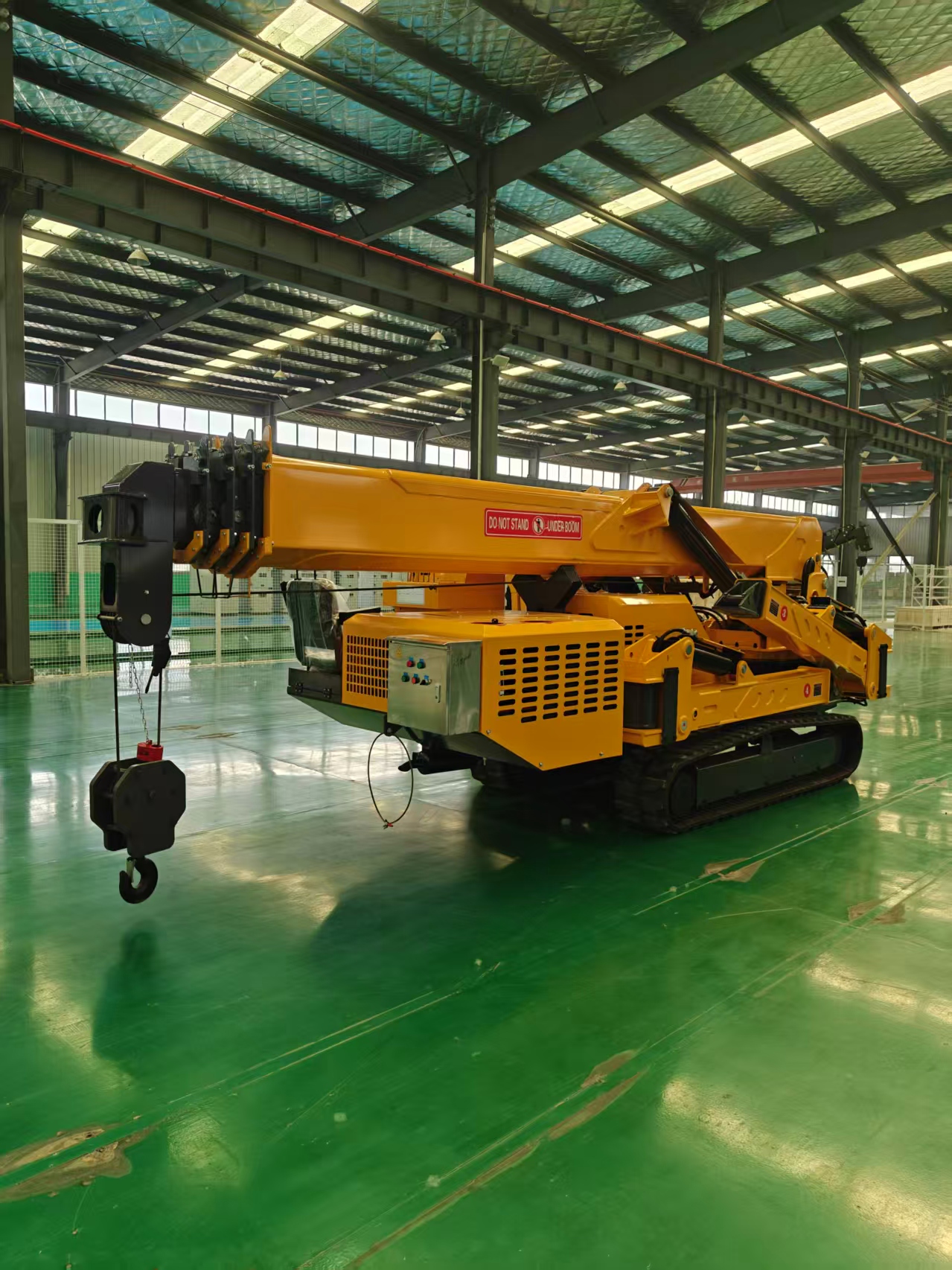

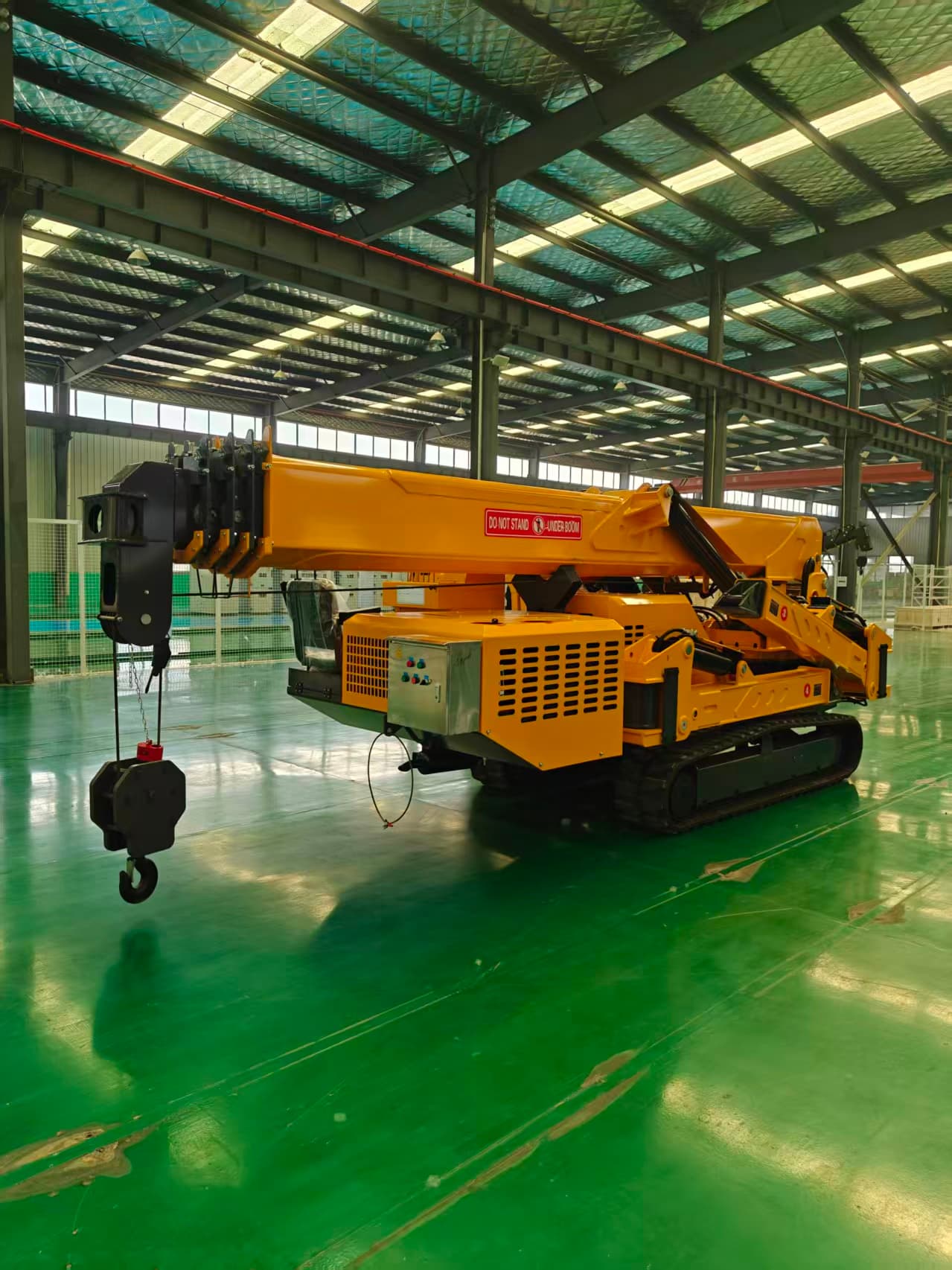

The MCM SC80 is an 8-tonne capacity spider crane available in South Africa from MCM Group, with a 21 m maximum lift height, 18 m maximum working radius, rubber crawler tracks, 360° continuous rotation and optional remote control — engineered for heavy lifting in confined indoor spaces, sensitive flooring and restricted-access sites, with finance and nationwide delivery from branches in Cape Town, George, Gauteng and Bloemfontein.
Compact Power, Maximum Reach

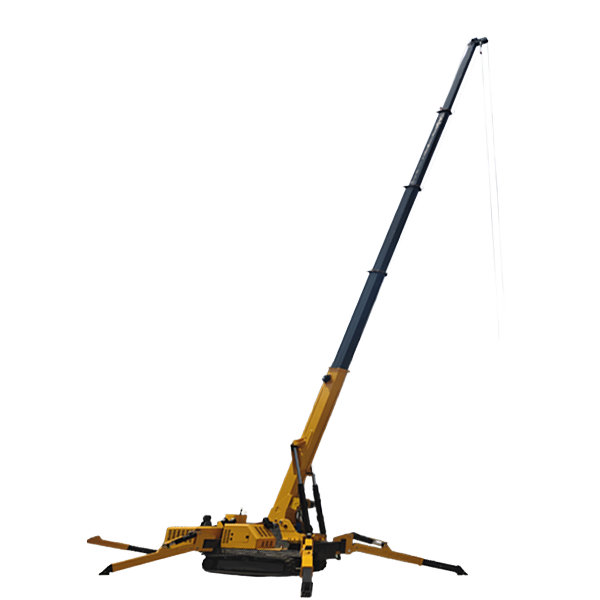

The MCM SC80 Spider Crane packs an 8-ton lifting capacity and a 21m maximum lift height into a compact, rubber-tracked machine that fits where bigger cranes can’t. Engineered for glass installation, steel erection, machinery placement and industrial maintenance, it balances power, precision and portability.
Key Features & Specifications
- Lifting Capacity: 8 Ton
- Maximum Lift Height: 21 m
- Maximum Working Radius: 18 m
- Dead Weight: 8.7 T

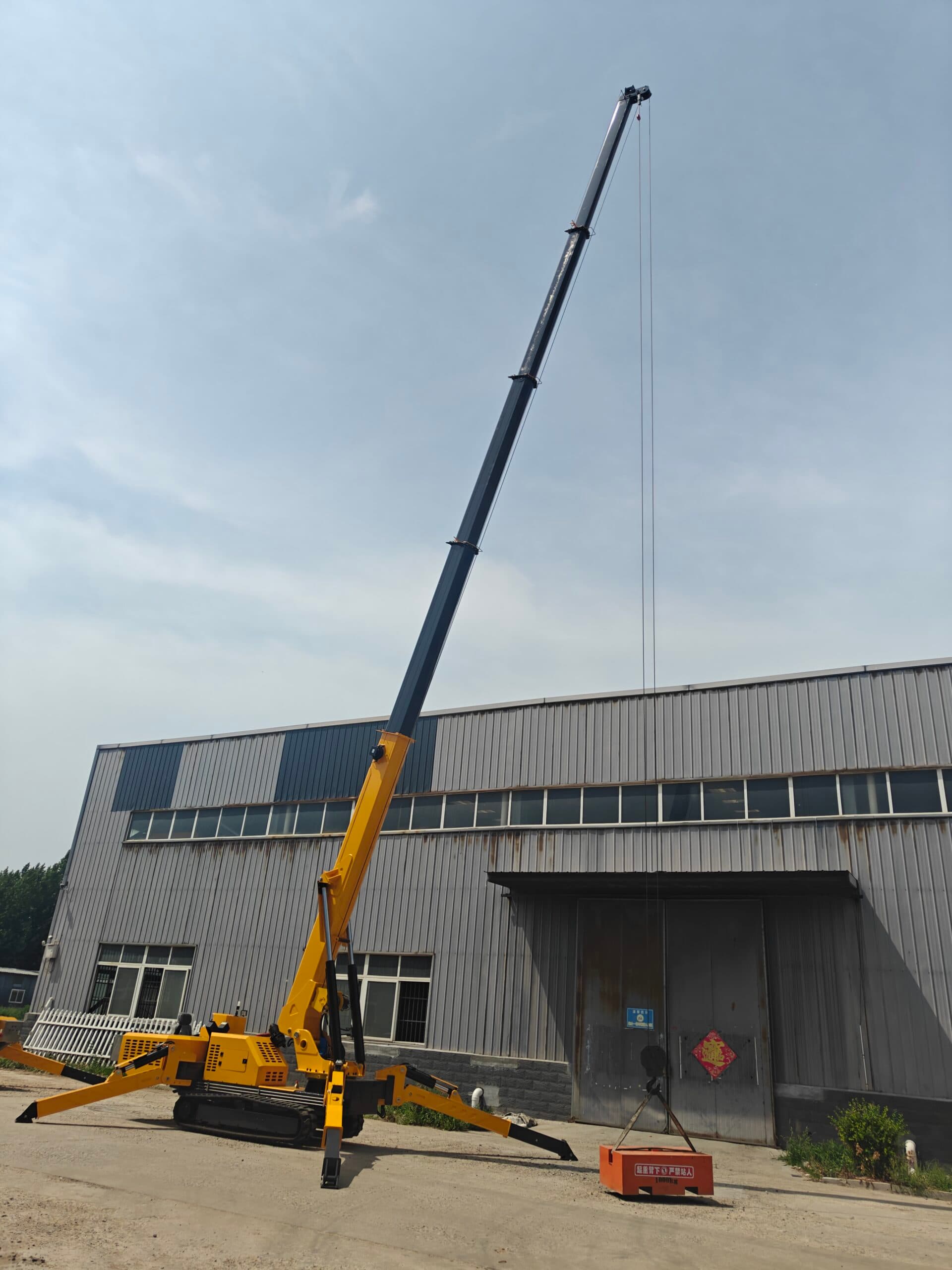

- Boom: 5-section telescopic, 5.5 m–21 m (extends in 54 sec)
- Boom Angle: 0–78° in 13 sec
- Rotation: 360° continuous (38 sec)
- Winch: hook speed 12 m/min, 4-rope two-speed; Φ12mm × 80 m wire rope
- Engine: Yuchai diesel, 58 kW, 490 CC, electric start, 35 L tank, 24V 45Ah

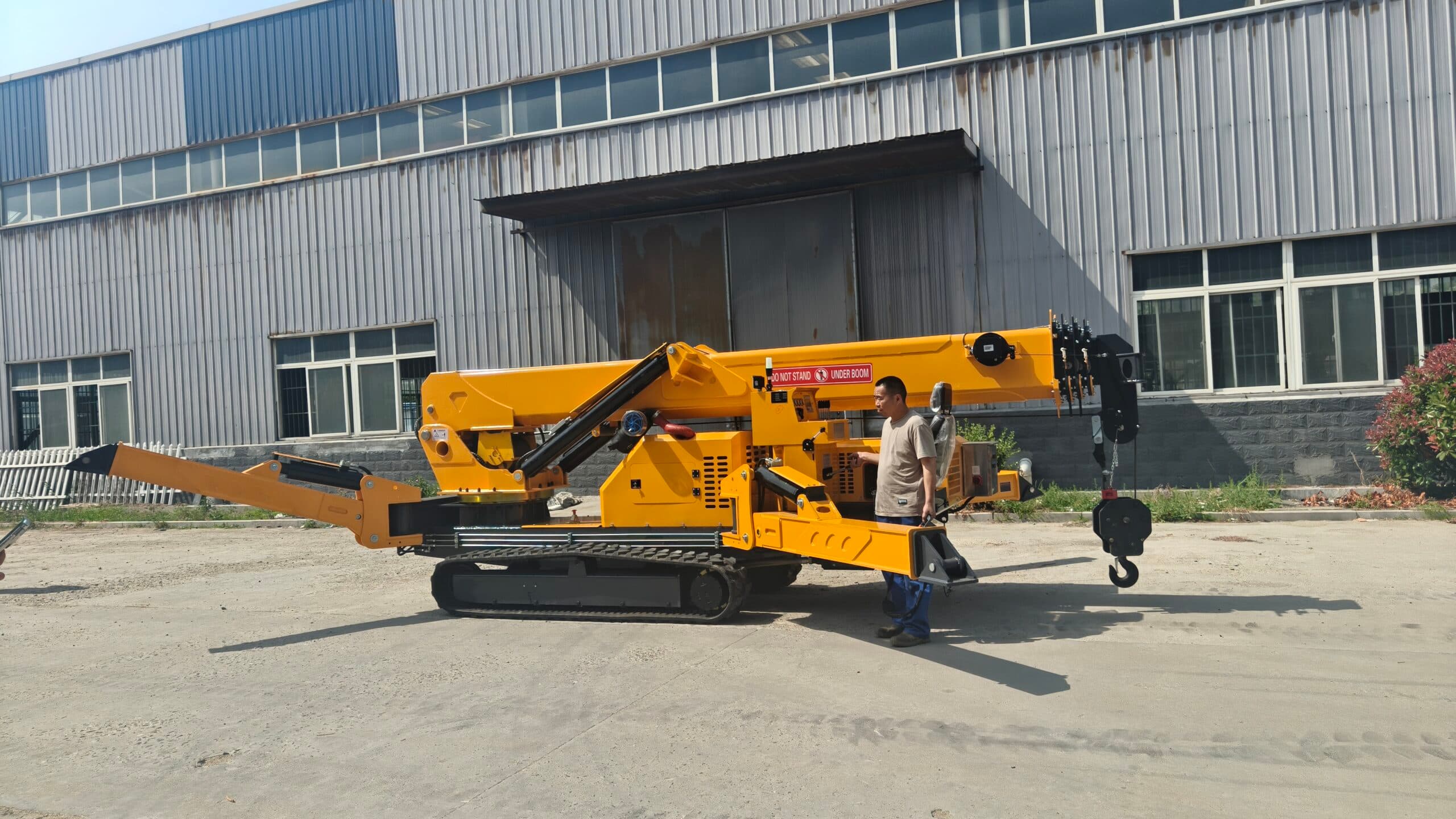

- Tracks: rubber, 350 mm wide, hydraulic drive, 0–2.5 km/h, 25° (36%) gradeability

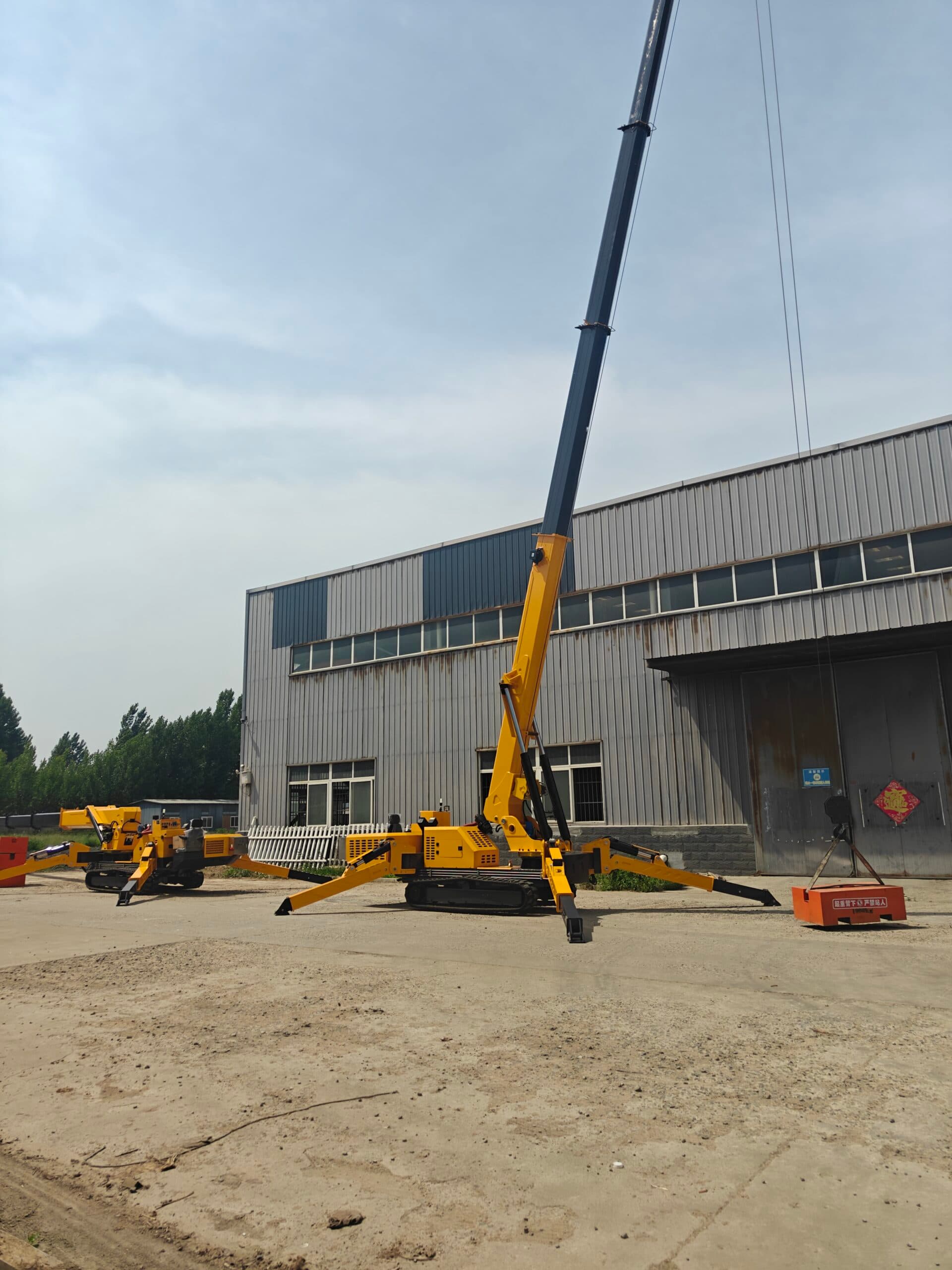

- Outriggers: manual screw + cylinder support, max span 7000 × 5070 (rear) × 6700 (front) mm
- Body Width: 1600 mm | Overall: 6.15 m × 1.6 m × 2.25 m
- Control: manual operation, optional remote control
- Options: torque controller, remote control, man-cage, hydraulic flying jib
Ideal For
Glaziers, steel erectors, factories, maintenance teams, plant relocation and any heavy confined or access-restricted lifting work.
Compare Spider Cranes models
Key specifications and prices side by side to help you pick the right machine.
| Model | Lifting Capacity | Max Lift Height | Max Working Radius | From* (excl. VAT) |
|---|---|---|---|---|
| MCM SC80 Spider Crane | 8 t | 21 m | 18 m | R 955 000 |
| MCM SC30 Spider Crane | 3 t | 10.8 m | 10 m | R 655 000 |
| MCM SC160 Spider Crane | 16 t | 25 m | 23 m | R 1 399 000 |
| MCM SC120 Spider Crane | 12 t | 21 m | 19 m | R 1 275 000 |
| MCM SC100 Spider Crane | 10 t | 21 m | 18 m | R 1 095 000 |
* Prices exclude VAT.
The MCM SC80 Spider Crane is an 8-ton capacity compact crane built for heavy lifting in confined spaces where conventional cranes cannot reach across South Africa. With a rubber-tracked chassis, a 5-section telescopic boom reaching 21m and 360° continuous rotation, it delivers serious lifting power in a compact, easily transported package.
Overview
This spider crane combines high-strength manganese-steel boom construction, hydraulic outrigger legs for stable set-up on uneven ground, and optional remote-control operation for precise, safe load placement. The rubber tracks protect sensitive flooring, while the compact 1600mm body fits through tight access points that larger cranes cannot.
Applications in South Africa
Glass and curtain-wall installers, steel erectors, and machinery installers use the SC80 for heavy lifts in restricted-access locations. Its 8-ton capacity suits industrial maintenance, plant relocation, rooftop equipment installation and confined-site construction.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
MCM SC80 Spider Crane — Frequently Asked Questions
How much does the MCM SC80 Spider Crane cost?
+
The MCM SC80 Spider Crane starts from R 955 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the MCM SC80 Spider Crane?
+
Key specs for the MCM SC80 Spider Crane include Lifting Capacity: 8 t, Max Lift Height: 21 m, Max Working Radius: 18 m, Dead Weight: 8.7 t, Engine Power: 58 kW (Yuchai diesel). See the full spec sheet on this page or request the brochure for complete details.
What is the MCM SC80 Spider Crane used for?
+
The MCM SC80 Spider Crane is a spider crane used for compact lifting in confined or sensitive indoor and outdoor spaces. It is built for South African conditions and backed by local parts and service support.
Can I finance the MCM SC80 Spider Crane?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MCM SC80 Spider Crane?
+
The MCM SC80 Spider Crane includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MCM SC80 Spider Crane nationwide?
+
Yes. MCM Group delivers the MCM SC80 Spider Crane anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MCM SC80 Spider Crane in South Africa?
+
Buy the MCM SC80 Spider Crane from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 955 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
