Yanmar 3TNV70
- Type
- Diesel
- Displacement (cm3)
- 854
- Bore (mm)
- 70
- Power (kW) / Speed (r/min)
- 16./3600
- Dimensions (mm)
- 528 x 426.7 x 546
- Weight
- 141kg
- Number of Cylinders
- 3
Diesel Engines
Yanmar
TNV Series
Since 1933 Yanmar have manufactured, with precise craftmanship, over 15 million diesel and gas engines ranging from 4.5 to 5,000 horsepower. Their engines can be found across a multitude of landscapes and industries – from agriculture, to industrial, to marine leisure, and everything in between.
Power7.0 kW – 155 kW10 models
About Yanmar
Founded in Japan in 1933, Yanmar has built over 15 million diesel and gas engines. Its compact TNV series offers Tier 4 compliance out of the box, with low noise, low vibration and easy installation.
Yanmar Engine Models (10)

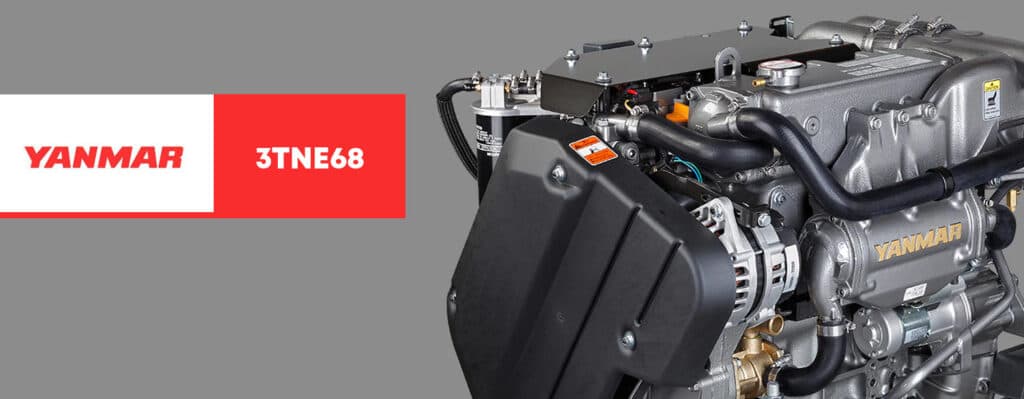

Yanmar 3TNE68
- Type
- Diesel
- Displacement (cm3)
- 784
- Bore (mm)
- 68
- Power (kW) / Speed (r/min)
- 12.9/3000
- Dimensions (mm)
- 517 x 409 x 526
- Weight
- 85kg
- Number of Cylinders
- 3
Yanmar 3TNV76
- Type
- Diesel
- Displacement (cm3)
- 1.116
- Bore (mm)
- 76
- Power (kW) / Speed (r/min)
- 10.7/1800
- Dimensions (mm)
- 567 x 430 x 601
- Weight
- 160kg
- Number of Cylinders
- 3
Yanmar 3TN82A
- Type
- Diesel
- Displacement (cm3)
- 1.331
- Bore (mm)
- 82
- Power (kW) / Speed (r/min)
- 22.2/3000
- Dimensions (mm)
- 575 x 488 x 612
- Weight
- 170kg
- Number of Cylinders
- 3
Yanmar 3TNV84T
- Type
- Diesel
- Displacement (cm3)
- 1.496
- Bore (mm)
- 84
- Power (kW) / Speed (r/min)
- 29.1/2800
- Dimensions (mm)
- 611 x 518 x 700
- Weight
- 180kg
- Number of Cylinders
- 3
Yanmar 3TNV88
- Type
- Diesel
- Displacement (cm3)
- 1.642
- Bore (mm)
- 88
- Power (kW) / Speed (r/min)
- 29.6/3000
- Dimensions (mm)
- 600 x 522 x 667
- Weight
- 186kg
- Number of Cylinders
- 3
Yanmar 4TNV84T
- Type
- Diesel
- Displacement (cm3)
- 1.995
- Bore (mm)
- 84
- Power (kW) / Speed (r/min)
- 41.2/3000
- Dimensions (mm)
- 726 x 520 x 710
- Weight
- 240kg
- Number of Cylinders
- 4
Yanmar 4TNV88
- Type
- Diesel
- Displacement (cm3)
- 2.190
- Bore (mm)
- 88
- Power (kW) / Speed (r/min)
- 35/3000
- Dimensions (mm)
- 726 x 519 x 662
- Weight
- 240kg
- Number of Cylinders
- 4
Yanmar 4TNV98
- Type
- Diesel
- Displacement (cm3)
- 3.319
- Bore (mm)
- 98
- Power (kW) / Speed (r/min)
- 50.7/2500
- Dimensions (mm)
- 791 x 529 x 756
- Weight
- 318kg
- Number of Cylinders
- 4
Yanmar 4TNV98T
- Type
- Diesel
- Displacement (cm3)
- 3.319
- Bore (mm)
- 98
- Power (kW) / Speed (r/min)
- 61.7/2500
- Dimensions (mm)
- 791 x 550 x 864
- Weight
- 310kg
- Number of Cylinders
- 4
