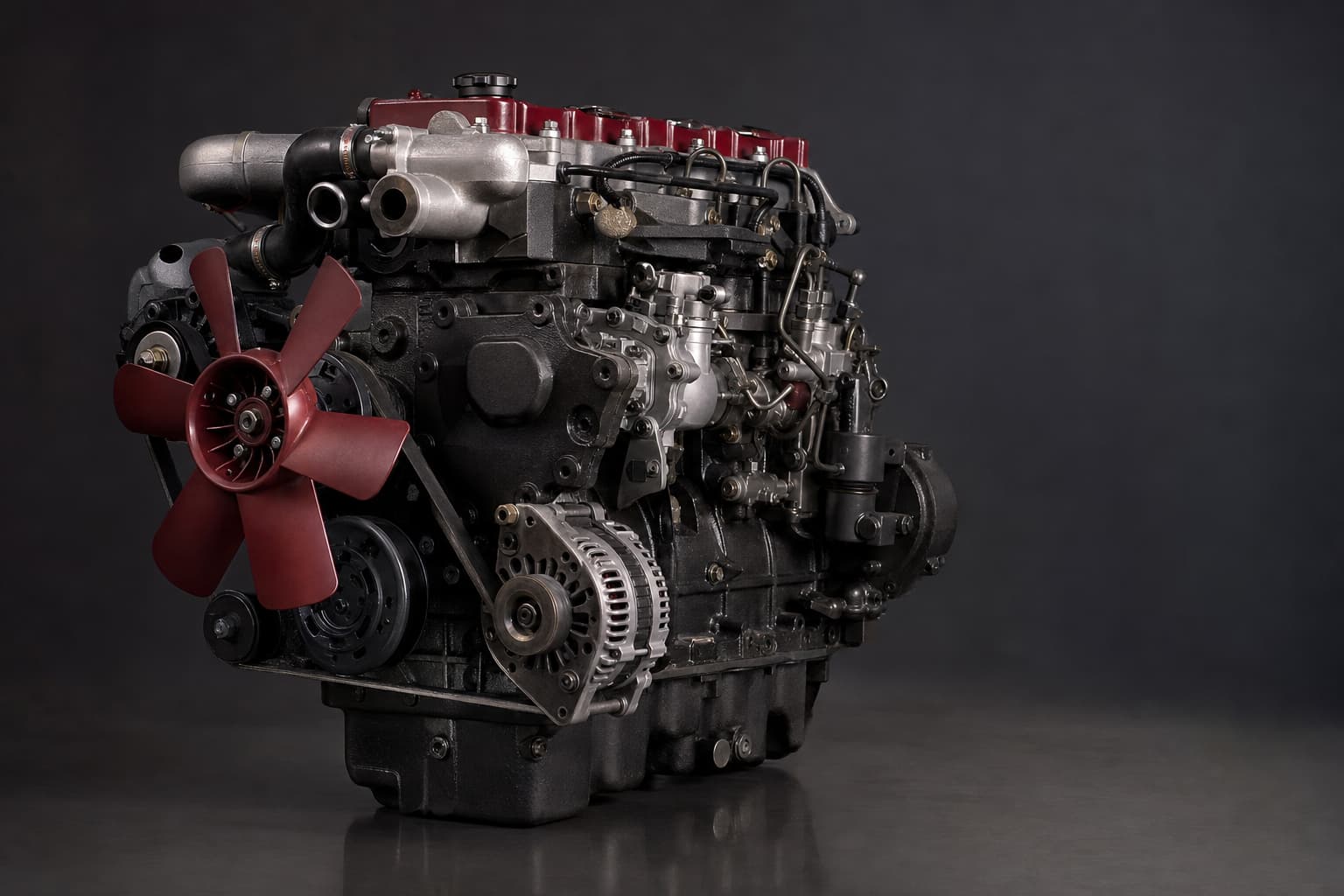

Isuzu diesel engine

Diesel Engines

Isuzu

Isuzu Industrial Diesel Engines

When uptime is non-negotiable, Isuzu is the diesel engine the world's equipment builders trust. For over half a century Isuzu industrial power units have earned a global reputation for bullet-proof reliability, long service life and low cost of ownership — the very qualities that matter most to operators of forklifts, generator sets, loaders, tractors, pumps and compactors. Every Isuzu industrial engine is engineered for high torque at low RPM, exceptional fuel economy and quiet, vibration-free running, so machines work harder for longer on less fuel. Backed by one of the largest worldwide parts and service networks of any engine maker (Isuzu Diesel alone supports roughly 400 authorised service dealers across the Americas, plus distributors worldwide), spares and support are always within reach. From a compact 1.1-litre three-cylinder unit through to a 15.7-litre six, the lineup offers a clean-running, emission-compliant option for almost any off-highway application — making Isuzu a safe, future-proof choice for South African industrial, agricultural and construction equipment.

Power18.7 kW - 382 kW (25 hp - 512 hp)10 models

About Isuzu

Isuzu Motors Limited traces its roots to 1916 in Tokyo and is one of the oldest and most respected names in diesel engineering, having built diesel engines since the 1930s. The company adopted the Isuzu name (after Japan's Isuzu River) in 1949 and has since grown into one of the largest producers of medium-duty and industrial diesel engines in the world, with cumulative output measured in the tens of millions of units. Its industrial off-highway division offers more than 30 engine models covering roughly 8.8 kW to 382 kW for generators, construction machinery, agricultural equipment, forklifts, pumps and compressors. Technically, the modern lineup is built around proven engine families - the compact L-series (4LE2), the J-series (4JG, 4JJ1), the H-series (4HK1, 6HK1) and larger B/W-series (6BG1, 6WG1) - using four-stroke, water-cooled, vertical in-line architecture with cast-iron blocks for durability. Smaller legacy units use direct or indirect injection and natural aspiration, while the current generation employs electronically controlled high-pressure common-rail injection, variable-geometry (VNT) turbocharging and air-to-air charge-air cooling. To meet stringent emissions limits such as US EPA Tier 4 Final, Stage IIIA and Euro V/Stage V, Isuzu combines cooled EGR with after-treatment including diesel particulate filters (DPF) and selective catalytic reduction (SCR), with several Tier 4 ratings achieved without a DPF.

Isuzu Engine Models (10)

Isuzu Isuzu 3CB1

Power
18.7 kW (25.1 hp) @ 3200 rpm (gross, SAE J1995)
Cylinders
3, vertical in-line
Displacement
1.1 L
Bore x Stroke
76 x 82 mm
Aspiration
Naturally aspirated
Injection
Indirect injection (IDI), 4-cycle, water-cooled, OHV
Max torque
64 Nm (47 lb-ft) @ 2300 rpm
Dry weight
117 kg
Applications
Compact gensets, light construction equipment, welders, turf/environmental equipment, small pumps
Request price

Isuzu Isuzu 3LD1

Power
approx. 24.8 kW (33.3 hp intermittent) / 21.8 kW (29.3 hp continuous) @ 3000 rpm
Cylinders
3, vertical in-line
Displacement
1.5 L
Bore x Stroke
83.1 x 92 mm
Aspiration
Naturally aspirated
Injection
Direct injection (DI), 4-cycle, water-cooled
Max torque
95 Nm (70.3 lb-ft) @ 1800 rpm
Applications
Small gensets, light agricultural machinery, pumps, compact construction/turf equipment
Request price

Isuzu Isuzu 4LE2 (Tier 2)

Power
38.1 kW (51.1 hp) @ 3000 rpm (general power rating)
Cylinders
4, vertical in-line
Displacement
2.179 L
Bore x Stroke
85 x 96 mm
Aspiration
Naturally aspirated
Injection
Direct injection, 4-cycle, water-cooled, OHV
Emission tier
Tier 2
Max torque
140 Nm (103 lb-ft) @ 2250 rpm
Dry weight
150 kg
Applications
Forklifts, excavators, general power, generator sets
Request price

Isuzu Isuzu 4LE2X (Tier 4 Final)

Power
49 kW (66 hp) @ 1800 rpm
Cylinders
4, vertical in-line
Displacement
2.179 L
Bore x Stroke
85 x 96 mm
Aspiration
Turbocharged and charge-air-cooled
Injection
Direct injection, 4-cycle, water-cooled, OHV
Emission tier
Tier 4 Final
Applications
Forklifts, compact excavators, skid steers, generator sets, pumps
Request price

Isuzu Isuzu 4JG1

Power
48 kW (65 PS) @ 2500 rpm (naturally aspirated); turbo 4JG1T approx. 63 kW (86 PS)
Cylinders
4, vertical in-line
Displacement
3.059 L
Bore x Stroke
95.4 x 107 mm
Aspiration
Naturally aspirated (4JG1) / turbocharged (4JG1T)
Injection
Direct injection, 4-cycle, water-cooled, OHV
Applications
Counterbalance forklifts, generator sets, compactors, agricultural and construction machinery
Request price

Isuzu Isuzu 4JJ1X (Tier 4 Final)

Power
71 kW (95 hp) @ 1800 rpm (industrial rating)
Cylinders
4, vertical in-line
Displacement
2.999 L
Bore x Stroke
95.4 x 104.9 mm
Aspiration
Turbocharged and charge-air-cooled (VNT)
Injection
Direct injection, high-pressure common rail, 4-cycle, water-cooled, OHC
Emission tier
Tier 4 Final
Applications
Mid-size forklifts, excavators, wheel loaders, generator sets, mobile compressors and pumps
Request price

Isuzu Isuzu 4HK1X (Tier 4 Final)

Power
127.4 kW (171 hp) @ 1800 rpm (industrial); up to 154 kW (207 hp) commercial rating
Cylinders
4, vertical in-line
Displacement
5.193 L
Bore x Stroke
115 x 125 mm
Aspiration
Turbocharged and charge-air-cooled (VGS/VNT)
Injection
Direct injection, high-pressure common rail, 4-cycle, water-cooled, OHC
Emission tier
Tier 4 Final
Applications
Mid/large excavators, wheel loaders, cranes, prime-power generator sets, large forklifts
Request price

Isuzu Isuzu 6BG1 / 6BG1T

Power
approx. 85 kW (114 hp continuous) NA up to approx. 132 kW (177 hp) turbo (6BG1T) @ 2500 rpm
Cylinders
6, vertical in-line
Displacement
6.494 L
Bore x Stroke
105 x 125 mm
Aspiration
Naturally aspirated (6BG1) / turbocharged (6BG1T)
Injection
Direct injection, 4-cycle, water-cooled, OHV
Max torque
approx. 424 Nm (313 lb-ft) @ 1500 rpm (NA)
Applications
Generator sets, excavators, wheel loaders, construction and industrial machinery
Request price

Isuzu Isuzu 6HK1

Power
approx. 151-224 kW (205-300 hp) depending on rating and RPM
Cylinders
6, vertical in-line
Displacement
7.79 L
Bore x Stroke
115 x 125 mm
Aspiration
Turbocharged and charge-air-cooled (VNT)
Injection
Direct injection, high-pressure common rail, 4-cycle, water-cooled, OHC
Emission tier
Available Euro III to Tier 4 Final
Max torque
approx. 980 Nm
Applications
Large excavators, wheel loaders, mobile cranes, prime/standby generator sets
Request price

Isuzu Isuzu 6WG1X (Tier 4 Final)

Power
382 kW (512 hp) @ 1800 rpm
Cylinders
6, vertical in-line
Displacement
15.681 L
Bore x Stroke
147 x 154 mm
Aspiration
Turbocharged and charge-air-cooled
Injection
Direct injection, high-pressure common rail, 4-cycle, water-cooled, OHC
Emission tier
Tier 4 Final
Applications
Large/mining excavators, large wheel loaders, heavy prime-power generator sets (upper end of off-highway range)
Request price

Need a Isuzu engine or parts?

MCM Group imports & distributes Isuzu diesel engines across South Africa, with nationwide parts support and finance. Send your details and our parts team will get back to you with a quote.

Engine enquiry

Tell us which engine you need and how to reach you — our parts team will quote you.
