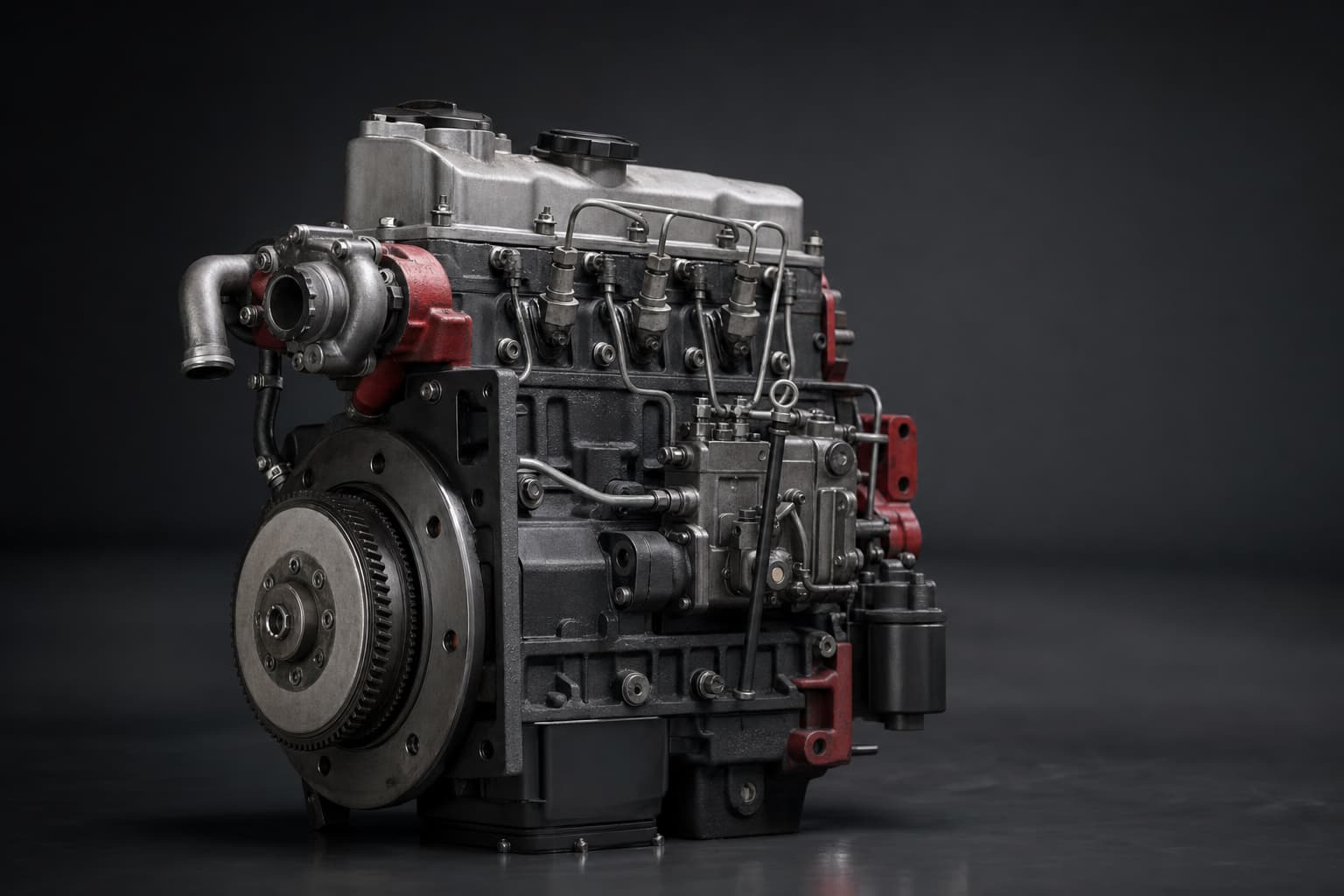

Kubota diesel engine

Diesel Engines

Kubota

Kubota Industrial Diesel Engines (Super Mini, 05, 03-M, 07, V3 and 09 Series)

When uptime is non-negotiable, Kubota is the diesel partner the world's leading OEMs trust. Kubota is the global benchmark in compact industrial diesel power, with more than a century of engineering heritage and tens of millions of engines in service worldwide. For forklifts, loaders, gensets, tractors, pumps and compactors, Kubota delivers an unmatched combination of high power density in a compact, lightweight package, legendary reliability, and class-leading fuel efficiency. Every engine is built to demanding Japanese quality standards and backed by one of the broadest service, parts and dealer-support networks on the planet, ensuring spares and technical backing are never far away even in remote South African operating conditions. From clean-burning Stage V / Tier 4 Final certified units to durable mechanical-injection workhorses for emerging markets, Kubota offers a model for virtually every off-highway application, making it the safe, long-life choice for buyers who measure value over the full life of the machine.

Power18.5 kW – 157.3 kW (24.8 hp – 210.9 hp)9 models

About Kubota

Kubota traces its roots to 1890, when 19-year-old Gonshiro Ohde (later Gonshiro Kubota) founded Ohde Casting in Osaka, Japan, initially producing castings for weighing equipment and everyday goods. The company built its first engine in 1923, the 3-horsepower agricultural and industrial "Type A," and by the late 1920s was producing engines for fishing boats. Over the following century Kubota grew into a global industrial group spanning tractors, combine harvesters, construction equipment, water and environmental systems, and a dedicated Engine Division that is today one of the world's largest manufacturers of compact off-highway diesel engines under roughly 100 kW (with the V5009 extending the range past 200 hp). Kubota engines are predominantly vertical, water-cooled, four-cycle units offered with a choice of fuel systems — indirect injection (IDI), direct injection (DI) and electronically controlled common-rail (CR) — and span single-cylinder to four-cylinder layouts in naturally aspirated, turbocharged and turbo-aftercooled forms. To meet the world's toughest emissions standards (EPA/CARB Tier 4 Final, EU Stage V, China NR IV, India BS V), Kubota integrates aftertreatment such as Diesel Oxidation Catalysts (DOC) and Diesel Particulate Filters (DPF), plus EGR, while engineering long ash-cleaning and oil-change intervals to keep maintenance and operating costs low. The 2019 launch of the V5009 — Kubota's first engine above 200 hp, which won Diesel of the Year — marked the brand's move into higher-power industrial territory while retaining its trademark compactness and reliability.

Kubota Engine Models (9)

Kubota Kubota D902 (Super Mini Series)

Power
18.5 kW (24.8 hp) at 3,600 rpm
Cylinders
3 (inline, water-cooled)
Displacement
0.898 L (898 cc)
Bore × Stroke
72.0 × 73.6 mm
Aspiration
Naturally aspirated
Emission tier
EPA Tier 4 / EU Stage V variants available (D902-E4B)
Applications
Compact gensets, lighting towers, small pumps, mini construction equipment, turf and utility machines

Applications: Compact generator sets, lighting towers, small water pumps, mini-loaders and turf/utility equipment

Request price

Kubota Kubota D1105 (05 Series)

Power
18.7 kW (25.0 hp) at 3,000 rpm
Cylinders
3 (inline, water-cooled)
Displacement
1.123 L (1,123 cc)
Bore × Stroke
78.0 × 78.4 mm
Aspiration
Naturally aspirated
Emission tier
EPA Tier 4 / EU Stage V variants available
Applications
Forklifts, telehandlers, gensets, compactors, pumps and small industrial equipment

Applications: Forklifts, telehandlers, generator sets, plate compactors, pumps and small mobile machinery

Request price

Kubota Kubota D1703-M-DI (03-M Series)

Power
26.1 kW (35.0 hp) at 2,800 rpm
Cylinders
3 (inline, water-cooled)
Displacement
1.647 L (1,647 cc)
Bore × Stroke
87.0 × 92.4 mm
Aspiration
Naturally aspirated (direct injection)
Emission tier
EPA Tier 4 Final / EU Stage V (D1703-M-DI-E4B)
Applications
Loaders, gensets, compactors, agricultural machinery and industrial pumps

Applications: Skid-steer and compact loaders, generator sets, soil/plate compactors, agricultural implements and pumps

Request price

Kubota Kubota V1505-T (05 Series, turbo)

Power
33.0 kW (44.2 hp) at 3,000 rpm
Cylinders
4 (inline, water-cooled)
Displacement
1.498 L (1,498 cc)
Bore × Stroke
78.0 × 78.4 mm
Aspiration
Turbocharged
Emission tier
EPA interim Tier 4 / EU Stage IIIA (E3B); Stage V variants available
Applications
Forklifts, compact loaders, gensets, compressors and agricultural equipment

Applications: Forklifts, compact wheel loaders, generator sets, air compressors and agricultural machinery

Request price

Kubota Kubota V2403-CR-TE5 (03 Series, common rail, Stage V)

Power
48.6 kW (65.2 hp) at 2,700 rpm
Cylinders
4 (inline, water-cooled)
Displacement
2.434 L (2,434 cc)
Bore × Stroke
87.0 × 102.4 mm
Aspiration
Turbocharged (common-rail direct injection)
Emission tier
EPA/CARB Tier 4 Final + EU Stage V (DOC + DPF)
Applications
Loaders, telehandlers, gensets, compactors, pumps and construction equipment

Applications: Wheel/skid-steer loaders, telehandlers, generator sets, road compactors, pumps and construction machinery

Request price

Kubota Kubota V2607-CR-T-E5 (07 Series, common rail, Stage V)

Power
53.0 kW (71.1 hp) at 2,700 rpm
Cylinders
4 (inline, water-cooled)
Displacement
2.615 L (2,615 cc)
Bore × Stroke
87.0 × 110.0 mm
Aspiration
Turbocharged (common-rail direct injection)
Emission tier
EPA/CARB Tier 4 Final + EU Stage V + India BS V (DOC + DPF)
Applications
Loaders, excavators, telehandlers, gensets and construction/agricultural equipment

Applications: Compact excavators, wheel loaders, telehandlers, generator sets and agricultural/construction machinery

Request price

Kubota Kubota V3307-CR-T-E5 (07 Series, common rail, Stage V)

Power
55.4 kW (74.3 hp) at 2,600 rpm
Cylinders
4 (inline, water-cooled)
Displacement
3.331 L (3,331 cc)
Bore × Stroke
94.0 × 120.0 mm
Aspiration
Turbocharged (common-rail direct injection)
Emission tier
EPA/CARB Tier 4 Final + EU Stage V + China NR IV (DOC + DPF)
Applications
Excavators, wheel loaders, telehandlers, gensets and construction equipment

Applications: Mid-size excavators, wheel loaders, telehandlers, generator sets and construction machinery

Request price

Kubota Kubota V3800-CR-TE5 (V3 Series, common rail, Stage V)

Power
55.4 kW (74.3 hp) at 2,200 rpm
Cylinders
4 (inline, water-cooled)
Displacement
3.769 L (3,769 cc)
Bore × Stroke
100.0 × 120.0 mm
Aspiration
Turbocharged (common-rail direct injection, external EGR)
Emission tier
EU Stage V + India BS V (DOC + DPF)
Applications
Loaders, gensets, compactors, agricultural tractors and construction equipment

Applications: Wheel loaders, generator sets, road compactors, agricultural tractors and construction machinery

Request price

Kubota Kubota V5009-TIE5 (09 Series, turbo-aftercooled, Stage V)

Power
157.3 kW (210.9 hp) at 2,200 rpm
Cylinders
4 (inline, water-cooled)
Displacement
5.017 L (5,017 cc)
Bore × Stroke
110.0 × 132.0 mm
Aspiration
Turbocharged with aftercooler
Emission tier
EPA Tier 4 Final / EU Stage V (DOC + DPF + SCR)
Applications
Large loaders, gensets, irrigation pumps, mobile crushers/screeners and heavy construction equipment

Applications: Large wheel loaders, high-output generator sets, irrigation pumps, mobile crushing/screening plants and heavy construction equipment

Request price
