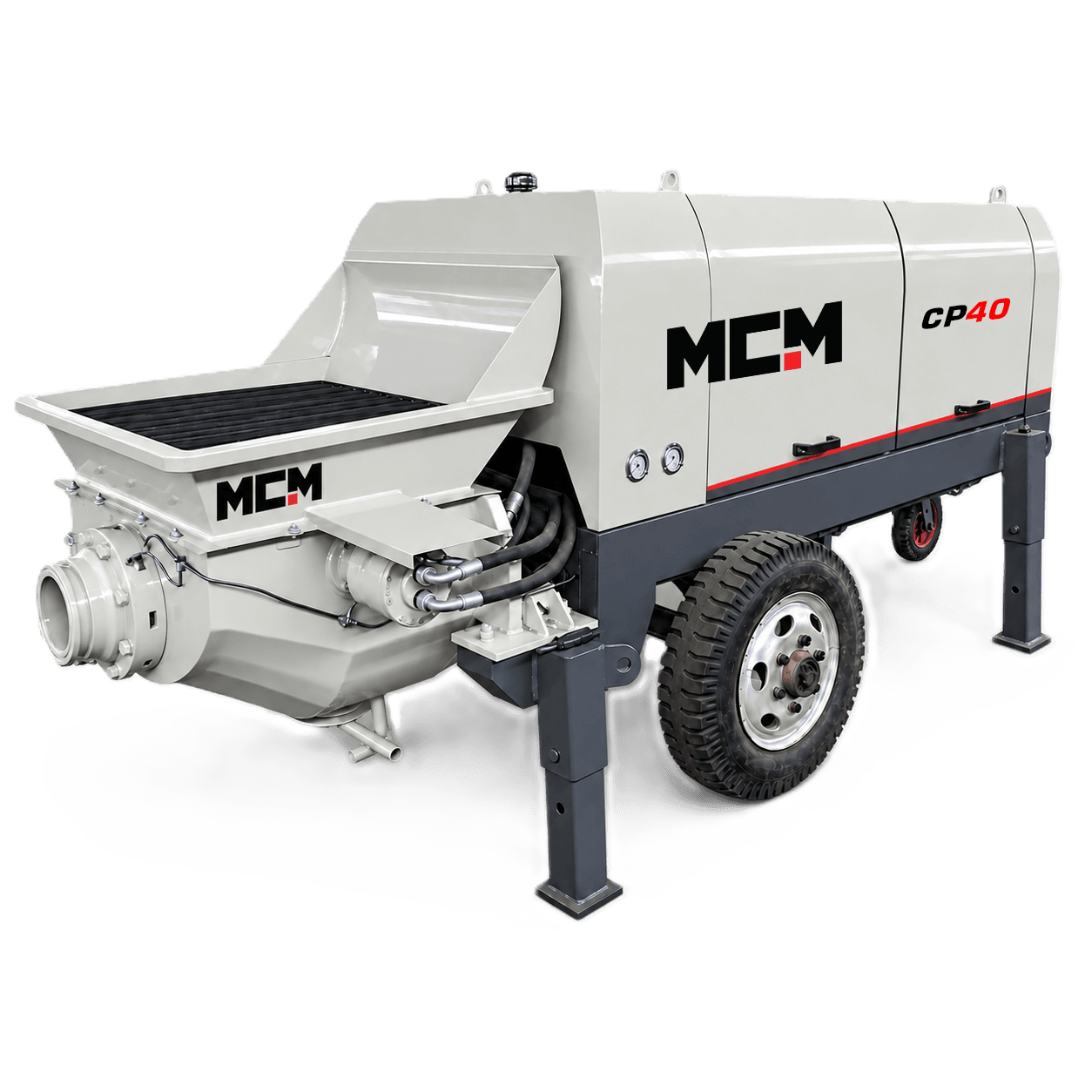

MCM CP40 Concrete Pump
Be the first to reviewThe MCM CP40 Concrete Pump has 76 kW (102 hp) engine power. It costs R 499 532 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 31 August 2026
R 499 532excl. VAT
Concrete Output
40 m³/hEngine Power
76 kW (102 hp)Total Weight
3200 kgMax Aggregate Size
30 mmDimensions (L×W×H)
4.4 × 1.7 × 1.75 mDelivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: MCM CP40 Concrete Pump
- Type
- Concrete Mixers
- Brand
- MCM
- Price
- R 499 532 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview
The MCM CP40 Concrete Pump is a trailer-mounted diesel concrete pump built for high-output concrete placement on construction sites across South Africa. In fact, it delivers up to 40 m³ of concrete per hour at pumping pressures of up to 11 MPa, letting contractors move concrete quickly and precisely to where it is needed — over distance and to height — without relying on wheelbarrows, cranes or a hired pump truck.
This concrete pump pairs a proven S-pipe distribution valve with a Kawasaki hydraulic system and a Huadong 76 kW diesel engine for reliable, continuous pumping. Moreover, the Φ180 × 1000 mm concrete cylinders drive material through a Φ125 mm outlet at up to 24 strokes per minute, while the low-level loading hopper keeps the pump fed with minimal effort. The towable chassis lets operators move the CP40 around site and between jobs with ease, and it ships complete with 100 m of steel delivery pipe plus 10 m of rubber hose. Handling aggregate up to 30 mm, the CP40 suits everything from structural concrete to screeds and grout.
Compare Concrete Mixers models
Key specifications and prices side by side to help you pick the right machine.
| Model | Mixing Capacity | Concrete Output | Engine Power | From* (excl. VAT) |
|---|---|---|---|---|
| MCM CP40 Concrete Pump | — | 40 m³/h | 76 kW (102 hp) | R 499 532 |
| MCM F2800 Concrete Mixer | ≥2.8 m³ | — | 85 / 90 kW (114 / 121 hp) | R 765 000 |
| MCM F1300 Concrete Mixer | ≥1.3 m³ | — | 73 kW (98 hp) | R 550 000 |
| MCM CMP45 Concrete Mixer Pump | 0.45 m³ | 45 m³/h | 92 kW (123 hp) | R 629 499 |
| MCM CMP38 Concrete Mixer Pump | 0.45 m³ | 38 m³/h | 83 kW (111 hp) | R 589 497 |
* Prices exclude VAT.
The MCM CP40 Concrete Pump is a trailer-mounted diesel concrete pump built for high-output concrete placement on construction sites across South Africa. In fact, it delivers up to 40 m³ of concrete per hour at pumping pressures of up to 11 MPa, letting contractors move concrete quickly and precisely to where it is needed — over distance and to height — without relying on wheelbarrows, cranes or a hired pump truck.
MCM CP40 Concrete Pump – Key Features
This concrete pump pairs a proven S-pipe distribution valve with a Kawasaki hydraulic system and a Huadong 76 kW diesel engine for reliable, continuous pumping. Moreover, the Φ180 × 1000 mm concrete cylinders drive material through a Φ125 mm outlet at up to 24 strokes per minute, while the low-level loading hopper keeps the pump fed with minimal effort. The towable chassis lets operators move the CP40 around site and between jobs with ease, and it ships complete with 100 m of steel delivery pipe plus 10 m of rubber hose. Handling aggregate up to 30 mm, the CP40 suits everything from structural concrete to screeds and grout.
Specifications
| Max. theoretical concrete output | 40 m³/h |
| Max. concrete pumping pressure | 11 MPa |
| Max. number of pumps | 24 / min |
| Distribution valve type | S-pipe valve |
| Hydraulic pump | Kawasaki |
| Main electrical components | LS or Siemens |
| Concrete cylinder | Φ180 × 1000 mm |
| Oil cylinder | Φ100 × 1000 mm |
| Outlet diameter | Φ125 mm |
| Loading height | 1 100 mm |
| Diesel engine | Huadong 76 kW |
| Pumping system pressure | 28 MPa |
| Oil tank capacity | 170 L |
| Max. aggregate diameter | 30 mm |
| Delivery pipe inside diameter | Φ125 / 100 mm |
| Dimensions (L×W×H) | 4 400 × 1 700 × 1 750 mm |
| Total weight | 3 200 kg |
| Drag speed | ≤ 8 km/h |
| Supplied with | 100 m steel pipe + 10 m rubber hose |
Applications in South Africa
Building and civil contractors use the CP40 for floor slabs, foundations, columns, retaining walls and hard-to-reach pours. In addition, it is well suited to multi-storey floors, bridge works and large civil projects where concrete must travel over distance or up to height. Because it runs on diesel, the CP40 works on remote and off-grid sites where mains power is not available. Learn more about how a concrete pump is used in construction.
Related Equipment
MCM Group offers a growing range of concrete equipment. Also view the MCM CMP38 and MCM CMP45 concrete mixer pumps, or browse the full concrete range. For on-site batching, see the MCM CM750 concrete mixer.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
MCM CP40 Concrete Pump — Frequently Asked Questions
How much does the MCM CP40 Concrete Pump cost?
+
The MCM CP40 Concrete Pump starts from R 499 532 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the MCM CP40 Concrete Pump?
+
Key specs for the MCM CP40 Concrete Pump include Concrete Output: 40 m³/h, Engine Power: 76 kW (102 hp), Total Weight: 3200 kg, Max Aggregate Size: 30 mm, Dimensions (L×W×H): 4.4 × 1.7 × 1.75 m. See the full spec sheet on this page or request the brochure for complete details.
Can I finance the MCM CP40 Concrete Pump?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MCM CP40 Concrete Pump?
+
The MCM CP40 Concrete Pump includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MCM CP40 Concrete Pump nationwide?
+
Yes. MCM Group delivers the MCM CP40 Concrete Pump anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MCM CP40 Concrete Pump in South Africa?
+
Buy the MCM CP40 Concrete Pump from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 499 532 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
