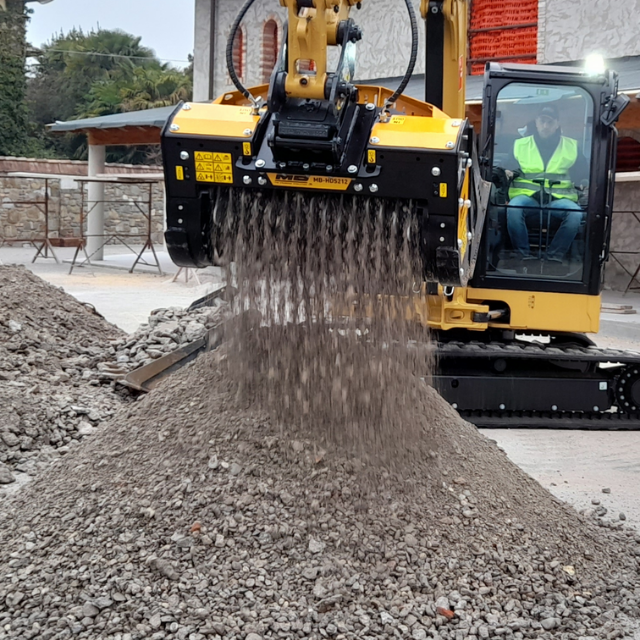

The MB-HDS212 shaft screener is engineered for tough screening applications using mini excavators from 5 – 10 tons, backhoe loaders from 8 – 9 tons, and skid steer loaders from 3 – 4 tons.
With a robust weight of 480 kg and a 0.15 m³ load capacity, it features a unique structural design: the coupler sits lower than the rest of the frame, reducing wear, increasing maneuverability, and boosting productivity. This smart build helps channel material directly to the rotating shafts for maximum output.
The MB-HDS212 also includes fixed gear covers to protect internal components from dirt, sand, and other contaminants. Welded back covers safeguard bolts and side casings, and operators can replace shafts directly on-site with ease.
Specification | Value (Metric) |
---|---|
Recommended Excavator | 5,000 – 10,000 kg |
Recommended Backhoe Loader | 8,000 – 9,000 kg |
Recommended Skid Steer Loader | 3,000 – 4,000 kg |
Load Capacity | 0.15 m³ |
Hydraulic Pressure | 200 – 250 bar |
Back Pressure | < 20 bar |
Oil Flow Rate | 75 – 100 L/min |
Backhoe Compatibility Note | Only compatible with the posterior boom of a backhoe. |
Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
The MB-HDS212 shaft screener is engineered for tough screening applications using mini excavators from 5 – 10 tons, backhoe loaders from 8 – 9 tons, and skid steer loaders from 3 – 4 tons.
With a robust weight of 480 kg and a 0.15 m³ load capacity, it features a unique structural design: the coupler sits lower than the rest of the frame, reducing wear, increasing maneuverability, and boosting productivity. This smart build helps channel material directly to the rotating shafts for maximum output.
The MB-HDS212 also includes fixed gear covers to protect internal components from dirt, sand, and other contaminants. Welded back covers safeguard bolts and side casings, and operators can replace shafts directly on-site with ease.
Specification | Value (Metric) |
---|---|
Recommended Excavator | 5,000 – 10,000 kg |
Recommended Backhoe Loader | 8,000 – 9,000 kg |
Recommended Skid Steer Loader | 3,000 – 4,000 kg |
Load Capacity | 0.15 m³ |
Hydraulic Pressure | 200 – 250 bar |
Back Pressure | < 20 bar |
Oil Flow Rate | 75 – 100 L/min |
Backhoe Compatibility Note | Only compatible with the posterior boom of a backhoe. |
Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
