- Recommended Excavator50 – 80 t
- Working Weight6.6 t
- Load Capacity3.8 m³
MB-HDS523 Padding Bucket
Be the first to reviewThe MB-HDS523 Padding Bucket has 3350 kg working weight and 2.0 m³ load capacity. Ask any of MCM Group's four branches for the price: finance, nationwide delivery and a local warranty are available.
Price and details updated 2 November 2026
Pricing
Price on request
Request a quote for current pricing, finance options and delivery to your site.
Recommended Excavator
30 – 45 tWorking Weight
3350 kgLoad Capacity
2.0 m³Oil Flow
230 – 250 L/minHydraulic Pressure
250 – 300 barWidth (Size A)
2330 mmDelivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: MB-HDS523 Padding Bucket
- Type
- Padding Buckets
- Brand
- MB Crusher
- Fits
- excavators of 30 – 45 t
- Size
- 2nd largest of our 13 padding buckets by working weight: 3350 kg
- Next size down
- MB-HDS323 Padding Bucket: 2400 kg, price on request
- Next size up
- MB-HDS533 Padding Bucket: 6.6 t, price on request
- Price
- On request: ask any branch
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview

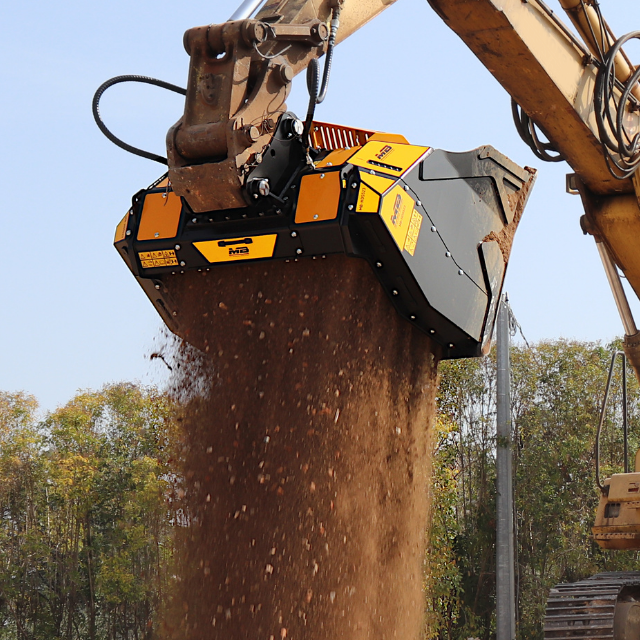

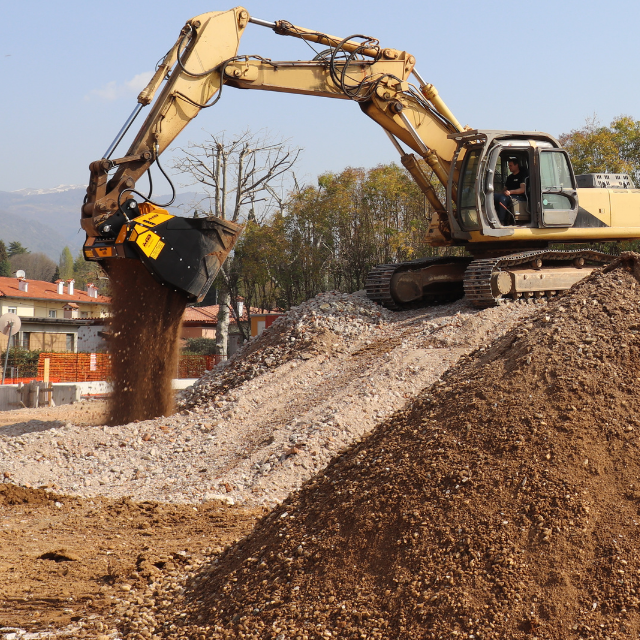

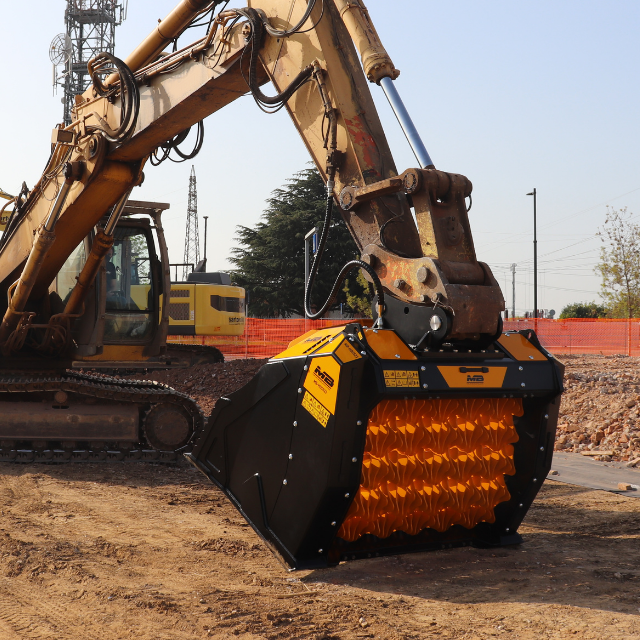

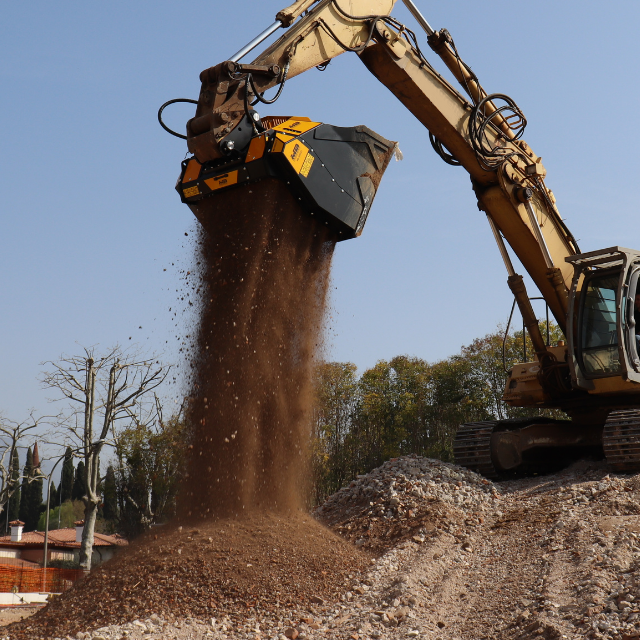

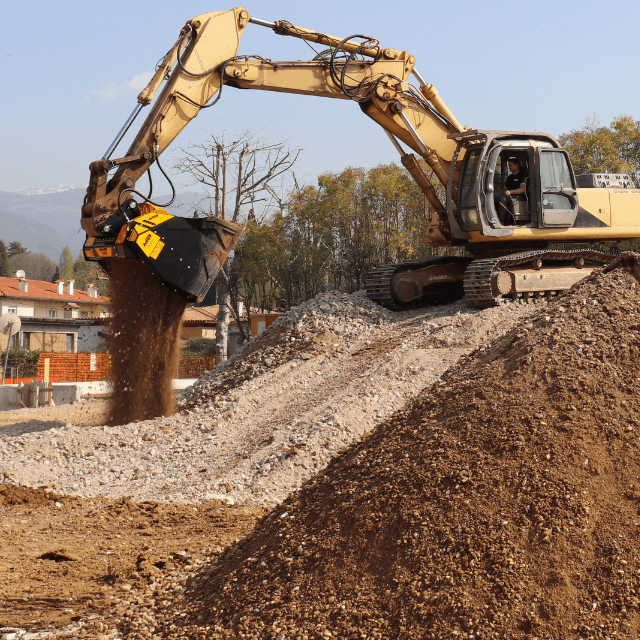

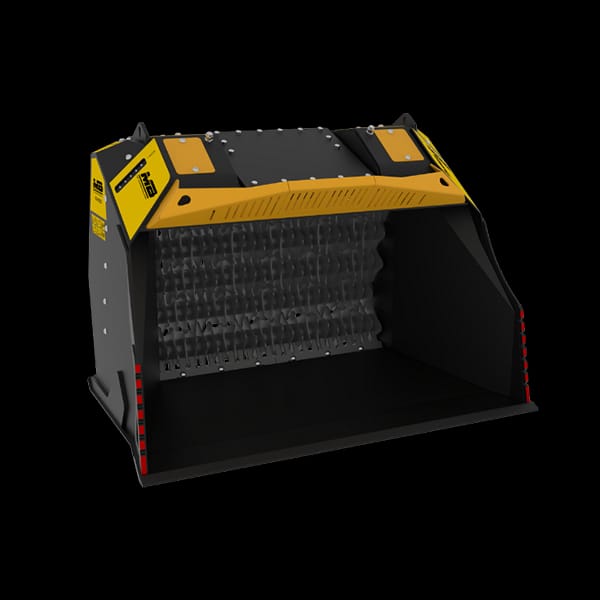

The MB-HDS523 Padding Bucket is a 3.35 t padding bucket for 30–45 t excavators: 2.00 m³ (2.40–3.50 m³ with the capacity increase kit). It screens and crushes excavated soil into fine fill for pipeline padding and backfill.
Up to 3.5 m³ with the increase kit
On 30–45 t excavators the MB-HDS523 screens 2.00 m³ per load, or 2.40–3.50 m³ with the capacity increase kit, driven by 230–250 L/min.
The shafts are interchangeable: different sifting kits change the size of what passes through, and a mixer kit turns the same bucket into a tool for aerating soil or compost.
Specifications
- Weight: 3.35 t
- Load capacity: 2.00 m³; 2.40–3.50 m³ with capacity increase kit
- Carrier: 30–45 t excavator
- Oil flow: 230–250 L/min
- Pressure: 250–300 bar
- Shaft kits: sifting kits of 8, 20 and 50 mm, fine sifting kits of 8.5 and 16 mm, a mixer kit and an RC compost kit
- Warranty: 24 months
Where it is used
Large-scale screening on mines, quarries and recycling sites where volumes justify a big excavator.
Price on request: contact a branch for a quote. See also the MB-HDS533, or all padding buckets.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
MB-HDS523 Padding Bucket — Frequently Asked Questions
How much does the MB-HDS523 Padding Bucket cost?
+
Pricing for the MB-HDS523 Padding Bucket depends on configuration and any attachments. Contact your nearest MCM Group branch or request a quote for current pricing and available specials.
What are the key specifications of the MB-HDS523 Padding Bucket?
+
Key specs for the MB-HDS523 Padding Bucket include Recommended Excavator: 30 – 45 t, Working Weight: 3350 kg, Load Capacity: 2.0 m³ (up to 2.4 – 3.5 m³ with coal capacity kit), Oil Flow: 230 – 250 L/min, Hydraulic Pressure: 250 – 300 bar. See the full spec sheet on this page or request the brochure for complete details.
Can I finance the MB-HDS523 Padding Bucket?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MB-HDS523 Padding Bucket?
+
The MB-HDS523 Padding Bucket includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MB-HDS523 Padding Bucket nationwide?
+
Yes. MCM Group delivers the MB-HDS523 Padding Bucket anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MB-HDS523 Padding Bucket in South Africa?
+
Buy the MB-HDS523 Padding Bucket from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa. Phone +27 81 885 0535 or email sales@mcmco.co.za.
Compare Padding Buckets models
Key specifications and prices side by side to help you pick the right machine.
| Model | Recommended Excavator | Working Weight | Load Capacity | From* (excl. VAT) |
|---|---|---|---|---|
| MB-HDS523 Padding Bucket | 30 – 45 t | 3350 kg | 2.0 m³ (up to 2.4 – 3.5 m³ with coal capacity kit) | Request quote |
| MB-HDS533 Padding Bucket | 50 – 80 t | 6.6 t | 3.8 m³ | Request quote |
| MB-HDS323 Padding Bucket | 22 – 35 t | 2400 kg | 1.65 m³ (up to 2.0 – 2.4 m³ with coal capacity kit) | Request quote |
| MB-HDS320 Padding Bucket | 18 – 24 t | 2100 kg | 1.35 m³ | R 585 000 |
| MB-HDS314 Padding Bucket | 13 – 20 t | 1400 kg | 0.9 m³ | R 495 000 |
* Prices exclude VAT.
