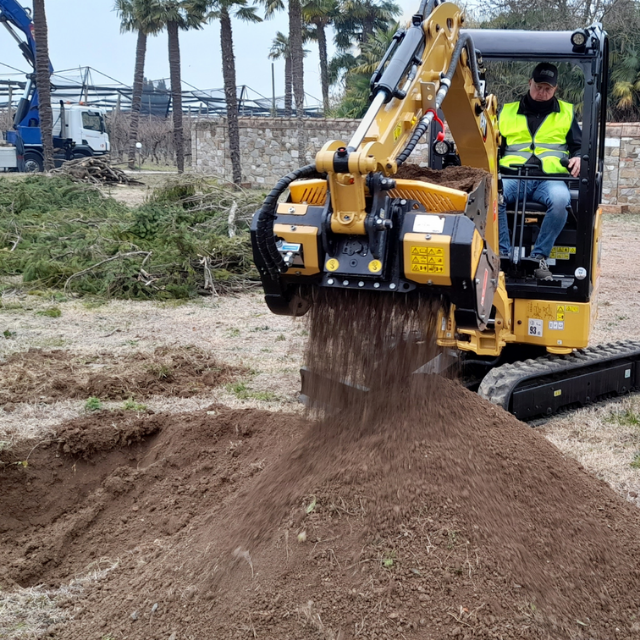

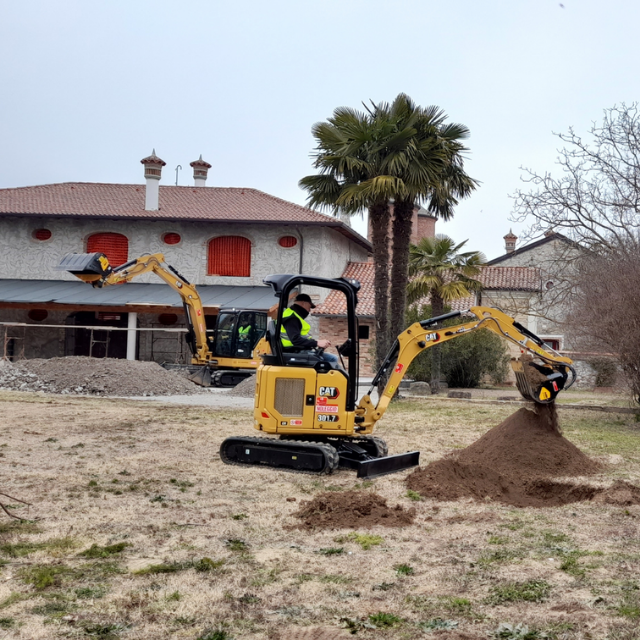

The MB-HDS207 shaft screening bucket is the smallest in the MB Crusher HDS line, purpose-built for precision work in landscaping, trenching, and urban construction sites. Designed for excavators from 1.3 – 2.8 tons and backhoes from 3 – 4 tons, it offers unmatched maneuverability in tight spaces.
Weighing only 98 kg and offering a 0.05 m³ load capacity, the MB-HDS207 boosts productivity through its centralized coupler design. This lowers frame stress and increases handling precision. Its gears are shielded by a fixed cover to prevent damage from dirt and sand, while the welded rear guard protects bolts and side casings during operation.
Operators can easily replace shafts and perform maintenance directly on-site. An optional load capacity kit is available, increasing the bucket volume from 50 to 57 liters for enhanced performance.
| Specification | Value (Metric) |
|---|---|
| Recommended Excavator | 1,300 – 2,800 kg |
| Recommended Backhoe Loader | 3,000 – 4,000 kg |
| Load Capacity | 0.05 m³ (upgradeable to 0.057 m³) |
| Hydraulic Pressure | 200 – 220 bar |
| Back Pressure | < 20 bar |
| Oil Flow Rate | 26 – 34 L/min |
| Backhoe Compatibility Note | Only compatible with posterior boom of a backhoe. |
| Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
The MB-HDS207 shaft screening bucket is the smallest in the MB Crusher HDS line, purpose-built for precision work in landscaping, trenching, and urban construction sites. Designed for excavators from 1.3 – 2.8 tons and backhoes from 3 – 4 tons, it offers unmatched maneuverability in tight spaces.
Weighing only 98 kg and offering a 0.05 m³ load capacity, the MB-HDS207 boosts productivity through its centralized coupler design. This lowers frame stress and increases handling precision. Its gears are shielded by a fixed cover to prevent damage from dirt and sand, while the welded rear guard protects bolts and side casings during operation.
Operators can easily replace shafts and perform maintenance directly on-site. An optional load capacity kit is available, increasing the bucket volume from 50 to 57 liters for enhanced performance.
| Specification | Value (Metric) |
|---|---|
| Recommended Excavator | 1,300 – 2,800 kg |
| Recommended Backhoe Loader | 3,000 – 4,000 kg |
| Load Capacity | 0.05 m³ (upgradeable to 0.057 m³) |
| Hydraulic Pressure | 200 – 220 bar |
| Back Pressure | < 20 bar |
| Oil Flow Rate | 26 – 34 L/min |
| Backhoe Compatibility Note | Only compatible with posterior boom of a backhoe. |
| Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
