MCM 90WDT Wheel-Crawler Excavator available from MCM Group South Africa

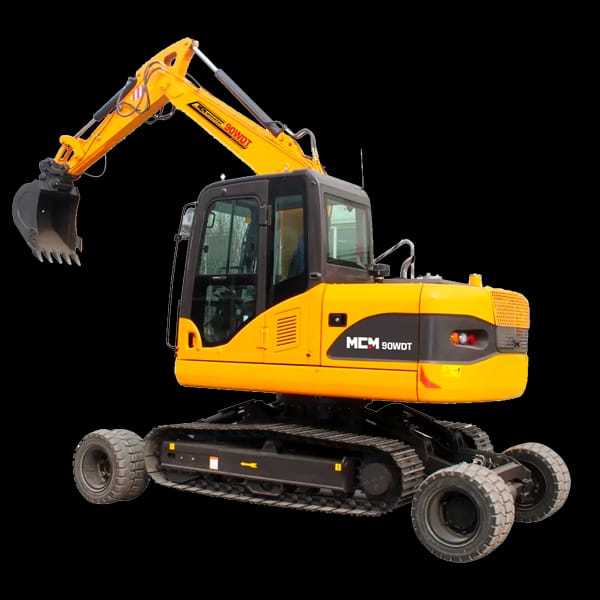

MCM 90WDT Wheel-Crawler Excavator

Be the first to review
Medium Excavators

The MCM 90WDT Wheel-Crawler Excavator has 52.1 kW (68.5 hp) engine power and 9000 kg operating weight. It costs R 1 250 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.

Price and details updated 2 November 2026

R 1 250 000excl. VAT
Engine Power
52.1 kW (68.5 hp)
Operating Weight
9000 kg
Bucket Capacity
0.32 m³
Max Digging Depth
3.77 m
Max Digging Force
59 kN
Drive Type
Wheel (2WD) / Crawler

Delivery

Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy

Need help choosing?

Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.

WhatsApp

Already own one? Request a service

Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA

Key facts: MCM 90WDT Wheel-Crawler Excavator

Brand
MCM
Size
2nd largest of our 10 medium excavators by operating weight: 9000 kg
Next size down
MCM 83WDT Wheel-Crawler Excavator: 8300 kg, R 995 000 excl. VAT
Next size up
MCM 120WDT Wheel-Crawler Excavator: 12000 kg, R 1 395 000 excl. VAT
Price
R 1 250 000 excl. VAT
Buy from
our branches in Cape Town, George, Bloemfontein and Midrand

Overview

The MCM 90WDT is a 9-ton wheel-crawler excavator with a 52.1 kW Yanmar 4TNV98 engine, 0.32 m³ bucket, 3.77 m dig depth and 59 kN digging force.

Mobility of wheels, grip of tracks

The WDT design carries both wheels and crawler tracks. On wheels (hydraulic 2WD) the machine drives itself between jobs on a farm or site; lowered onto its tracks, it gets the stability and traction of a crawler for digging.

The MCM 90WDT weighs 9 000 kg, with a Yanmar 4TNV98 diesel of 52.1 kW (68.5 hp) and a 0.32 m³ bucket that digs to 3.77 m and delivers 59 kN of digging force.

Specifications

  • Operating weight: 9 000 kg
  • Engine: Yanmar 4TNV98, 52.1 kW (68.5 hp)
  • Bucket: 0.32 m³
  • Maximum digging depth: 3 772 mm
  • Maximum digging reach: 6 880 mm
  • Maximum dumping height: 5 220 mm
  • Maximum bucket digging force: 59 kN
  • Working fuel consumption: 6.1 L/h
  • Drive: wheel (hydraulic 2WD) / crawler
  • Length × width × height: 6 570 × 2 225 × 2 982 mm

Range

Lighter: MCM 83WDT. Deeper digging: MCM 120WDT. See all medium excavators.

Ready to take the next step?

Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.

+27 81 885 0535 sales@mcmco.co.za Cape Town · George · Midrand · Bloemfontein
Get Price
Wheels And Tracks – Mobility And Grip

Wheels And Tracks – Mobility And Grip

The WDT design carries both wheels and crawler tracks. On wheels (hydraulic 2WD) the MCM 90WDT drives itself between jobs on a farm or site; lowered onto its tracks, it gets the stability and traction of a crawler for digging.

Yanmar 4TNV98, 52.1 kW (68.5 hp)

Yanmar 4TNV98, 52.1 kW (68.5 hp)

A Yanmar 4TNV98 diesel of 52.1 kW (68.5 hp) powers the 9 000 kg 90WDT, with working fuel consumption of 6.1 L/h.

Digs 3.77 m, Reaches 6.88 m

Digs 3.77 m, Reaches 6.88 m

The 0.32 m³ bucket digs to 3 772 mm, reaches 6 880 mm and delivers 59 kN of digging force.

Dumps At 5.22 m

Dumps At 5.22 m

A maximum dumping height of 5 220 mm loads tipper trucks. The 90WDT measures 6 570 × 2 225 × 2 982 mm.

No reviews yet

Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.

MCM 90WDT Wheel-Crawler Excavator — Frequently Asked Questions

How much does the MCM 90WDT Wheel-Crawler Excavator cost?

+

The MCM 90WDT Wheel-Crawler Excavator starts from R 1 250 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.

What are the key specifications of the MCM 90WDT Wheel-Crawler Excavator?

+

Key specs for the MCM 90WDT Wheel-Crawler Excavator include Engine Power: 52.1 kW (68.5 hp), Operating Weight: 9000 kg, Bucket Capacity: 0.32 m³, Max Digging Depth: 3.77 m, Max Digging Force: 59 kN. See the full spec sheet on this page or request the brochure for complete details.

Can I finance the MCM 90WDT Wheel-Crawler Excavator?

+

Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.

What warranty and support comes with the MCM 90WDT Wheel-Crawler Excavator?

+

The MCM 90WDT Wheel-Crawler Excavator includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.

Does MCM Group deliver the MCM 90WDT Wheel-Crawler Excavator nationwide?

+

Yes. MCM Group delivers the MCM 90WDT Wheel-Crawler Excavator anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.

Where can I buy the MCM 90WDT Wheel-Crawler Excavator in South Africa?

+

Buy the MCM 90WDT Wheel-Crawler Excavator from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 250 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.

Compare Medium Excavators models

Key specifications and prices side by side to help you pick the right machine.

ModelEngine PowerOperating WeightBucket CapacityFrom* (excl. VAT)
MCM 90WDT Wheel-Crawler Excavator52.1 kW (68.5 hp)9000 kg0.32 m³R 1 250 000
Yuchai YC80 Excavator44.4 kW / 42.4 kW7800 kg0.26 m³R 875 000
Yuchai U60 Excavator35 kW5600 kg0.18 m³R 825 000
MCM 60DS Excavator42.4 kW5900 kg0.21 m³R 699 500
MCM 30DS Excavator14 kW2700 kg0.10 m³R 499 500

* Prices exclude VAT.
