The MCM 120WDT Wheel-Crawler Excavator has 73.5 kW engine power and 12000 kg operating weight. It costs R 1 395 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.

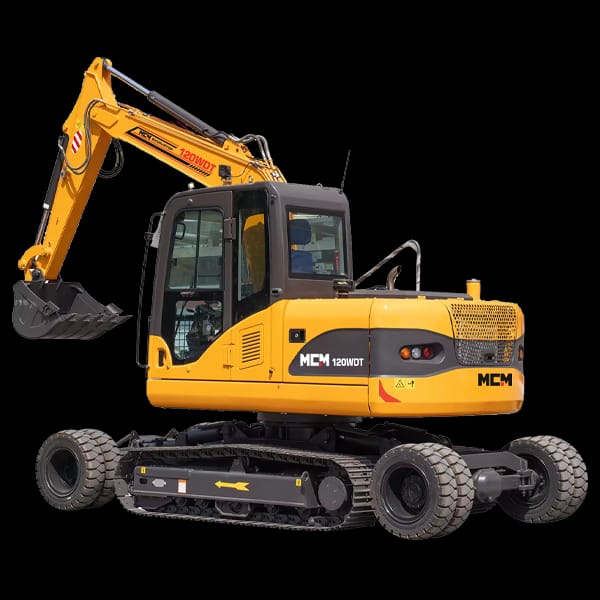

The MCM 120WDT is a 12-ton wheel-crawler excavator with a 73.5 kW Yuchai YC4DK100 engine, 0.40 m³ bucket, 4.84 m dig depth and a Liufeng axle.
The largest WDT
The WDT design carries both wheels and crawler tracks. On wheels (hydraulic 2WD) the machine drives itself between jobs on a farm or site; lowered onto its tracks, it gets the stability and traction of a crawler for digging.
The MCM 120WDT is the biggest of the three: 12 000 kg, a Yuchai YC4DK100 engine of 73.5 kW, 30 MPa hydraulics and a 0.40 m³ bucket that digs to 4.84 m.
Specifications
Operating weight: 12 000 kg
Engine: Yuchai YC4DK100, 73.5 kW
Bucket: 0.40 m³
Maximum digging depth: 4 840 mm
Maximum digging reach: 7 680 mm
Maximum dumping height: 6 042 mm
Maximum bucket digging force: 61 kN
System pressure: 30 MPa
Axle and transmission: Liufeng
Working fuel consumption: 7.9 L/h
Length × width × height: 7 222 × 2 360 × 3 050 mm
Who buys it
Road and pipeline contractors, forestry and sugar estates, and municipalities with spread-out work. Compare the 90WDT or all medium excavators.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
The MCM 120WDT is the biggest of the three wheel-crawler excavators. On wheels (hydraulic 2WD, Liufeng axle and transmission) it drives itself between jobs; lowered onto its tracks, it gets the stability and traction of a crawler for digging. Road and pipeline contractors, forestry and sugar estates and municipalities with spread-out work use it.
Yuchai YC4DK100, 73.5 kW
A Yuchai YC4DK100 engine of 73.5 kW and 30 MPa hydraulics power the 12 000 kg 120WDT, with working fuel consumption of 7.9 L/h.
Digs 4.84 m, Reaches 7.68 m
The 0.40 m³ bucket digs to 4 840 mm, reaches 7 680 mm and delivers 61 kN of bucket digging force.
Dumps At 6.04 m
A maximum dumping height of 6 042 mm loads tipper trucks. The 120WDT measures 7 222 × 2 360 × 3 050 mm.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
How much does the MCM 120WDT Wheel-Crawler Excavator cost?
+
The MCM 120WDT Wheel-Crawler Excavator starts from R 1 395 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the MCM 120WDT Wheel-Crawler Excavator?
+
Key specs for the MCM 120WDT Wheel-Crawler Excavator include Engine Power: 73.5 kW, Operating Weight: 12000 kg, Bucket Capacity: 0.40 m³, Max Digging Depth: 4.84 m, Max Digging Force: 61 kN. See the full spec sheet on this page or request the brochure for complete details.
Can I finance the MCM 120WDT Wheel-Crawler Excavator?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the MCM 120WDT Wheel-Crawler Excavator?
+
The MCM 120WDT Wheel-Crawler Excavator includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the MCM 120WDT Wheel-Crawler Excavator nationwide?
+
Yes. MCM Group delivers the MCM 120WDT Wheel-Crawler Excavator anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the MCM 120WDT Wheel-Crawler Excavator in South Africa?
+
Buy the MCM 120WDT Wheel-Crawler Excavator from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 395 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
