The MB-S14 S4 screening bucket is the perfect solution for medium-duty applications. Designed for excavators from 9,000 – 20,000 kg, it delivers high performance in site preparation, landscaping, and demolition projects.
This bucket features a 1.1 m³ load capacity and significantly reduces crushing time—up to 60%—by screening out unwanted materials like dry soil, river stones, and quarry residue. It’s ideal for both pre- and post-crushing phases.
Equipped with interchangeable modular panels, the MB-S14 S4 allows quick adjustment of screen size depending on the task. Its robust design ensures lasting durability, even in demanding environments.
| Specification | Value (Metric) |
|---|---|
| Recommended Excavator | 9,000 – 20,000 kg |
| Load Capacity | 1.1 m³ |
| Hydraulic Pressure | 150 – 200 bar |
| Back Pressure | < 20 bar |
| Oil Flow Rate | 60 – 80 L/min |
| Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |
The MB-S14 S4 screening bucket is the perfect solution for medium-duty applications. Designed for excavators from 9,000 – 20,000 kg, it delivers high performance in site preparation, landscaping, and demolition projects.
This bucket features a 1.1 m³ load capacity and significantly reduces crushing time—up to 60%—by screening out unwanted materials like dry soil, river stones, and quarry residue. It’s ideal for both pre- and post-crushing phases.
Equipped with interchangeable modular panels, the MB-S14 S4 allows quick adjustment of screen size depending on the task. Its robust design ensures lasting durability, even in demanding environments.
| Specification | Value (Metric) |
|---|---|
| Recommended Excavator | 9,000 – 20,000 kg |
| Load Capacity | 1.1 m³ |
| Hydraulic Pressure | 150 – 200 bar |
| Back Pressure | < 20 bar |
| Oil Flow Rate | 60 – 80 L/min |
| Hydraulic Requirement Note | Hydraulic flow and pressure must meet required parameters. |

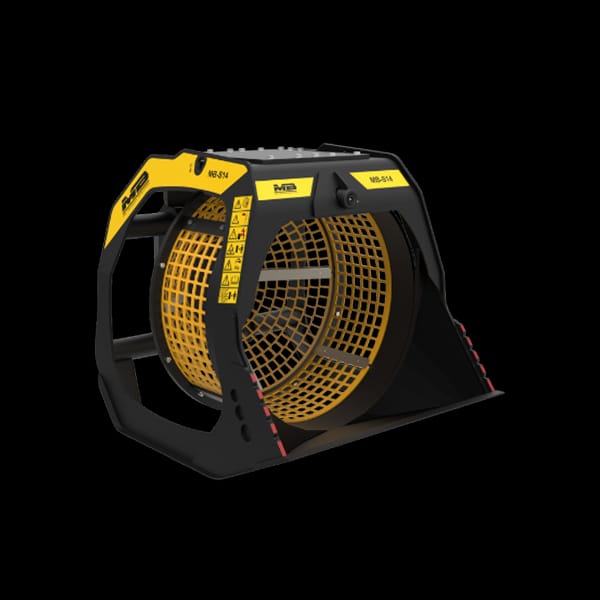

MB-S14 S4 Screening Bucket
