- Engine Power162 kW (220 hp)
- Operating Weight16700 kg
- Rated Load5000 kg

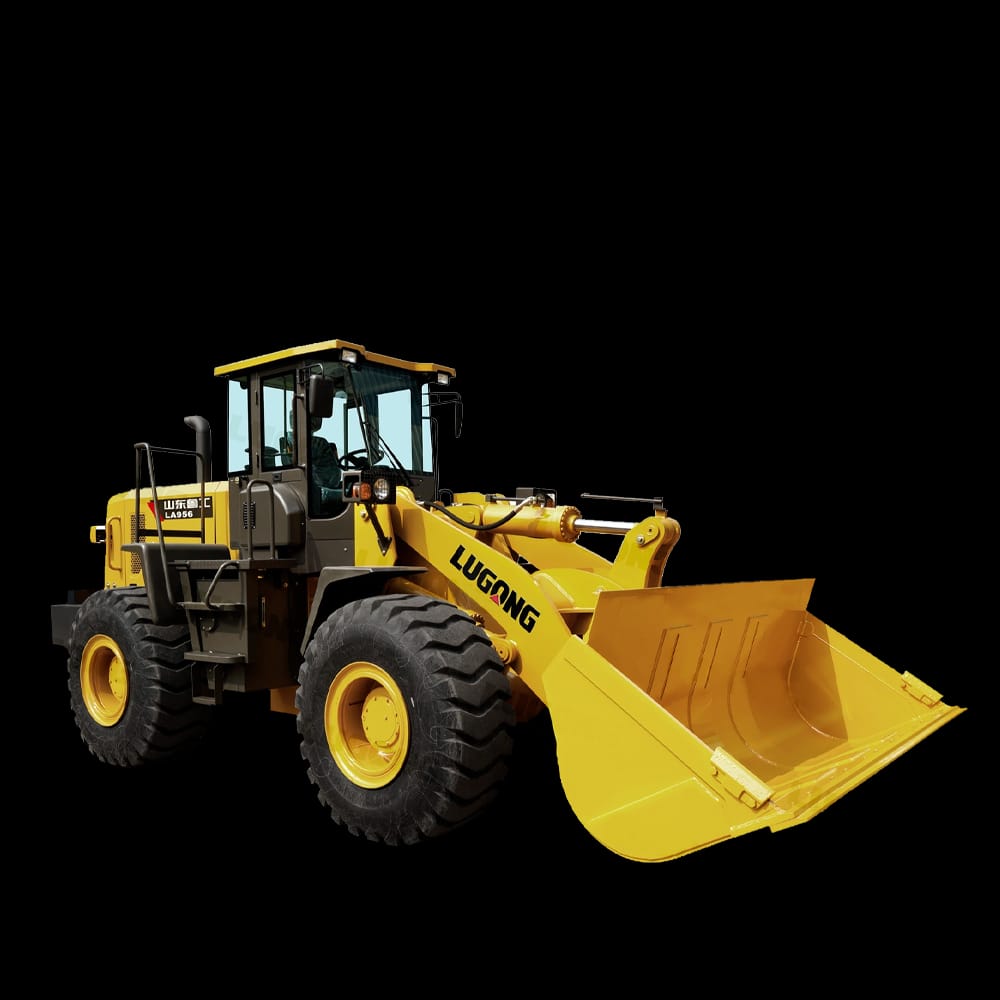

LGMA LA956 Front End Loader
Be the first to reviewThe LGMA LA956 Front End Loader is a wheel loader with 162 kW (220 hp) engine power and 16500 kg operating weight. It costs R 1 350 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 1 November 2026
R 1 350 000excl. VAT
Engine Power
162 kW (220 hp)Operating Weight
16500 kgRated Load
5000 kgBucket Capacity
3.0 m³Max Dump Height
3.15 mEngine Model
Weichai Steyr WD10G220E23Delivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: LGMA LA956 Front End Loader
- Brand
- LGMA
- Size
- Joint largest of our 28 front end loaders by rated load: 5000 kg
- Next size down
- HZM 938 Front End Loader: 3000 kg, R 950 000 excl. VAT
- Price
- R 1 350 000 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview
The LGMA LA956 is a 16.5-ton, 5-ton-rated wheel loader with a 3.0 m³ bucket, 162 kW Weichai Steyr engine, ZL50 transmission and 38 km/h top speed, for quarries and high-volume loading.
The heavyweight of the LGMA range
The LGMA LA956 is a full-size 5-ton loader. It carries a 3.0 m³ bucket, a 5 000 kg rated load and 152 kN maximum tractive force, driven by a Weichai Steyr WD10G220E23 rated at 162 kW.
Moves fast between face and truck
A ZL50 torque converter with a planetary gearbox (2 forward, 1 reverse) gives the LA956 a maximum speed of 38 km/h, so it can also travel efficiently between stockpiles on large sites. The 300 L fuel tank covers long shifts, and the minimum fuel consumption is rated at 215 g/kW·h.
Specifications
| Rated load | 5 000 kg |
| Bucket capacity | 3.0 m³ |
| Maximum dump height / reach | 3.15 m / 1.25 m |
| Operating weight | 16 500 kg |
| Engine | Weichai Steyr WD10G220E23, 162 kW |
| Lift / lower time | 5.95 s / 10.95 s |
| Brakes | Air-assist disc; manual disc parking brake |
| Minimum turning radius | 6.64 m |
| Wheelbase / tread | 3 340 / 2 250 mm |
| Tyres | 23.5-25 |
| Dimensions (L × W × H) | 8.36 × 3.05 × 3.48 m |
Applications
Quarry and mine loading, coal and ore stockpiles, large sand and aggregate yards, and bulk handling at ports and rail sidings.
Alternatives
The HZM 953 is also a 5-ton, 3 m³ loader with Weichai power. For a smaller LGMA, see the LG946. All front end loaders.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
LGMA LA956 Front End Loader — Frequently Asked Questions
How much does the LGMA LA956 Front End Loader cost?
+
The LGMA LA956 Front End Loader starts from R 1 350 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the LGMA LA956 Front End Loader?
+
Key specs for the LGMA LA956 Front End Loader include Engine Power: 162 kW (220 hp), Operating Weight: 16500 kg, Rated Load: 5000 kg, Bucket Capacity: 3.0 m³, Max Dump Height: 3.15 m. See the full spec sheet on this page or request the brochure for complete details.
What is the LGMA LA956 Front End Loader used for?
+
The LGMA LA956 Front End Loader is a front-end loader used for loading trucks, moving bulk material like soil, sand, gravel and feed, stockpiling and yard work on farms, quarries and construction sites. It is built for South African conditions and backed by local parts and service support.
Can I finance the LGMA LA956 Front End Loader?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the LGMA LA956 Front End Loader?
+
The LGMA LA956 Front End Loader includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the LGMA LA956 Front End Loader nationwide?
+
Yes. MCM Group delivers the LGMA LA956 Front End Loader anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the LGMA LA956 Front End Loader in South Africa?
+
Buy the LGMA LA956 Front End Loader from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 350 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
Compare Front End Loaders models
Key specifications and prices side by side to help you pick the right machine.
| Model | Engine Power | Operating Weight | Rated Load | From* (excl. VAT) |
|---|---|---|---|---|
| LGMA LA956 Front End Loader | 162 kW (220 hp) | 16500 kg | 5000 kg | R 1 350 000 |
| HZM 953 Front End Loader | 162 kW (220 hp) | 16700 kg | 5000 kg | R 1 250 000 |
| LGMA LM946 Front End Loader | 97 kW (130 hp) | 8200 kg | 2800 kg | R 725 000 |
| MCM 912 Front End Loader | 36.8 kW (49 hp) | 2200 kg | 800 kg | R 299 500 |
| LGMA LG938 Front End Loader | 74 kW (99 hp) | 5200 kg | 2000 kg | R 599 500 |
* Prices exclude VAT.
