- Engine Power162 kW (220 hp)
- Operating Weight16500 kg
- Rated Load5000 kg

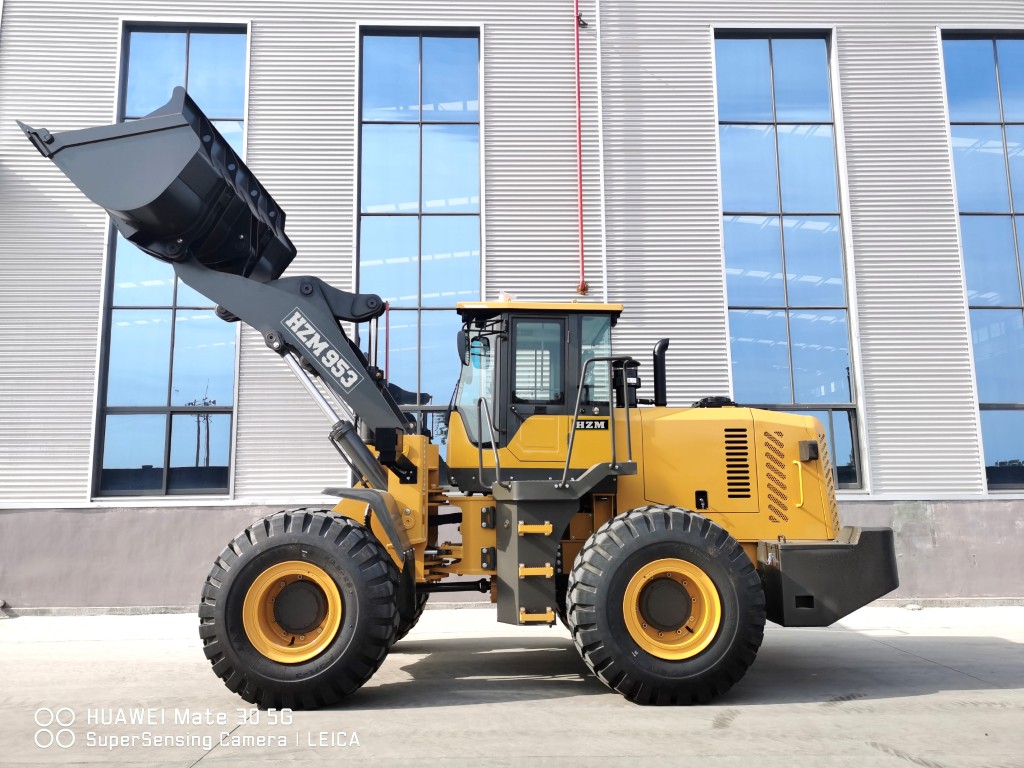

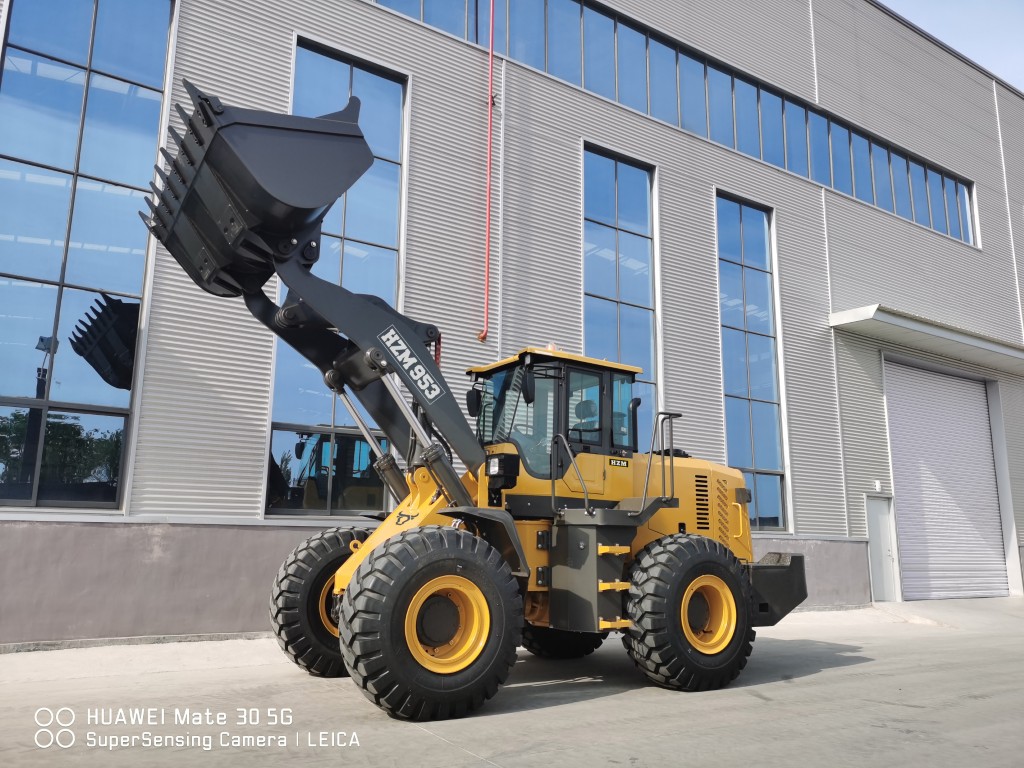

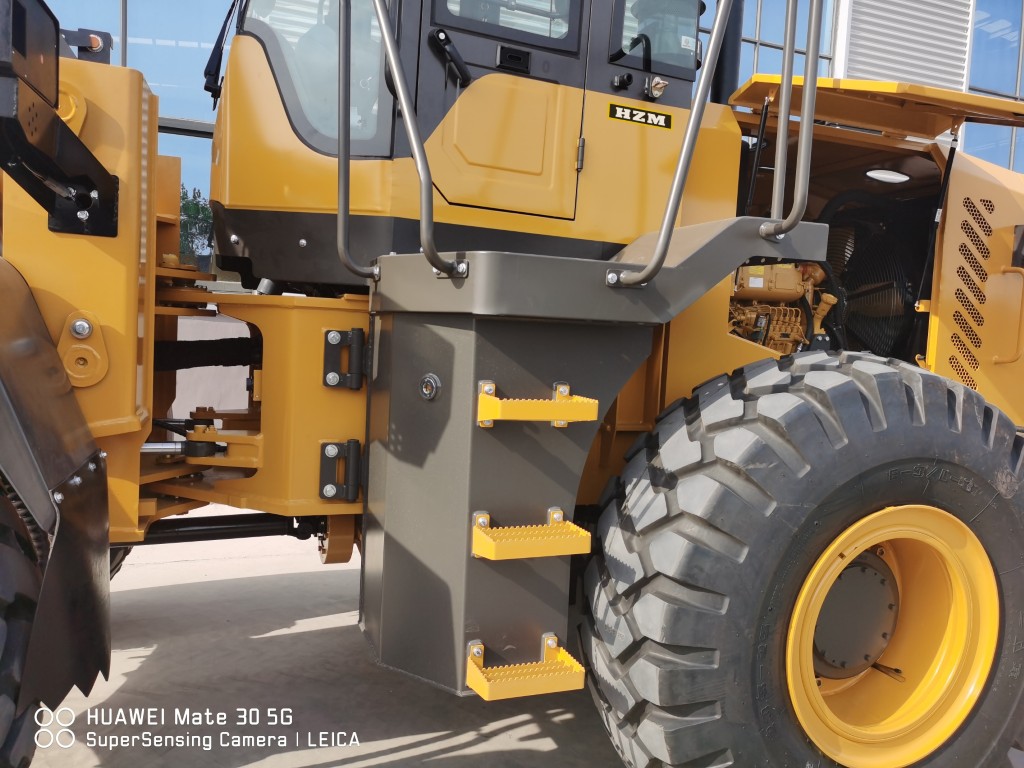

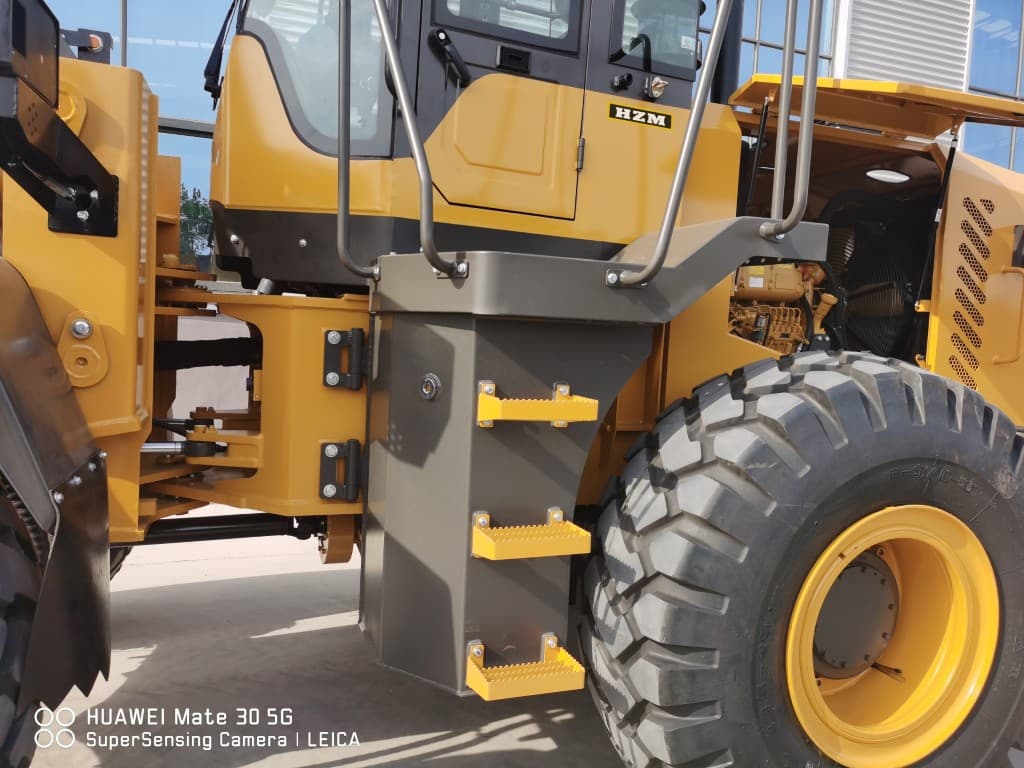

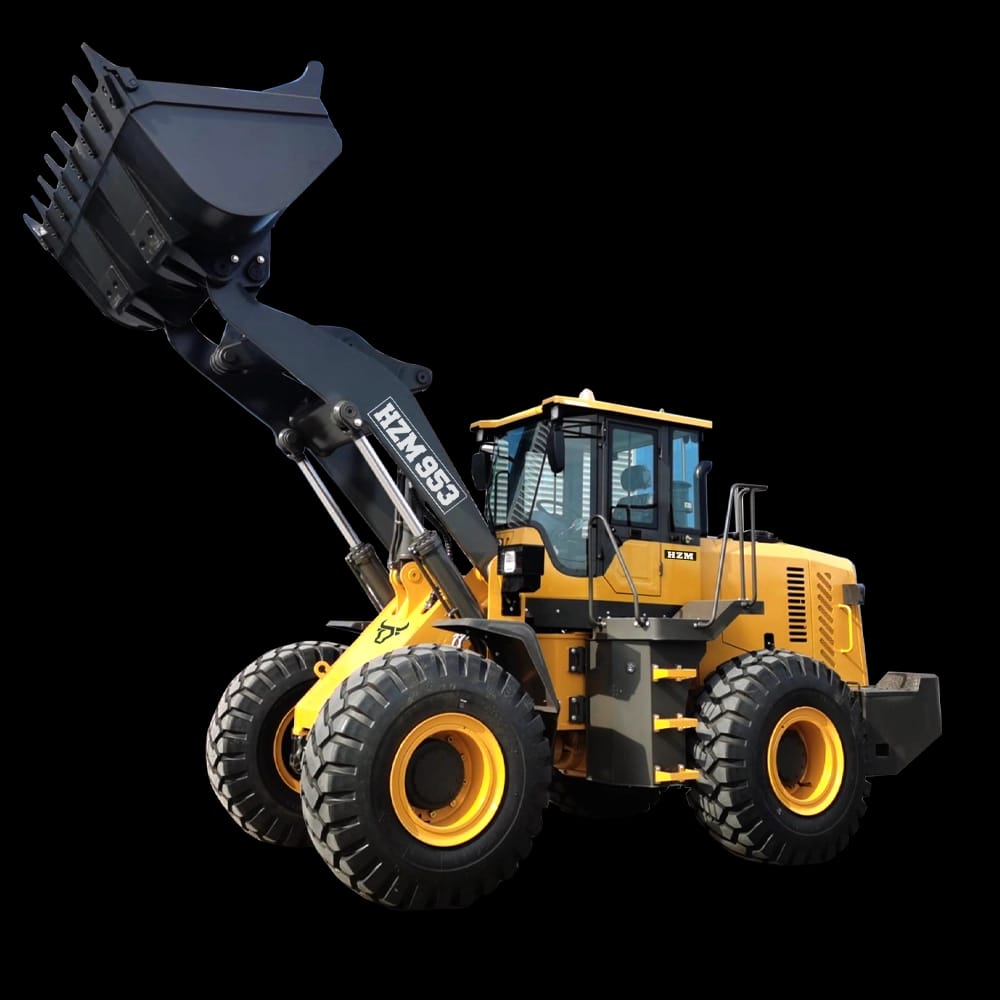

HZM 953 Front End Loader
Be the first to reviewThe HZM 953 Front End Loader is a wheel loader with 162 kW (220 hp) engine power and 16700 kg operating weight. It costs R 1 250 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Price and details updated 1 November 2026
R 1 250 000excl. VAT
Engine Power
162 kW (220 hp)Operating Weight
16700 kgRated Load
5000 kgBucket Capacity
3.0 m³Max Dump Height
3.05 mEngine Model
Weichai WD10G220E23Downloads
Delivery
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
Already own one? Request a service
Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA
Key facts: HZM 953 Front End Loader
- Brand
- HZM
- Size
- Joint largest of our 26 front end loaders by rated load: 5000 kg
- Next size down
- HZM 938 Front End Loader: 3000 kg, R 950 000 excl. VAT
- Price
- R 1 250 000 excl. VAT
- Buy from
- our branches in Cape Town, George, Bloemfontein and Midrand
Overview

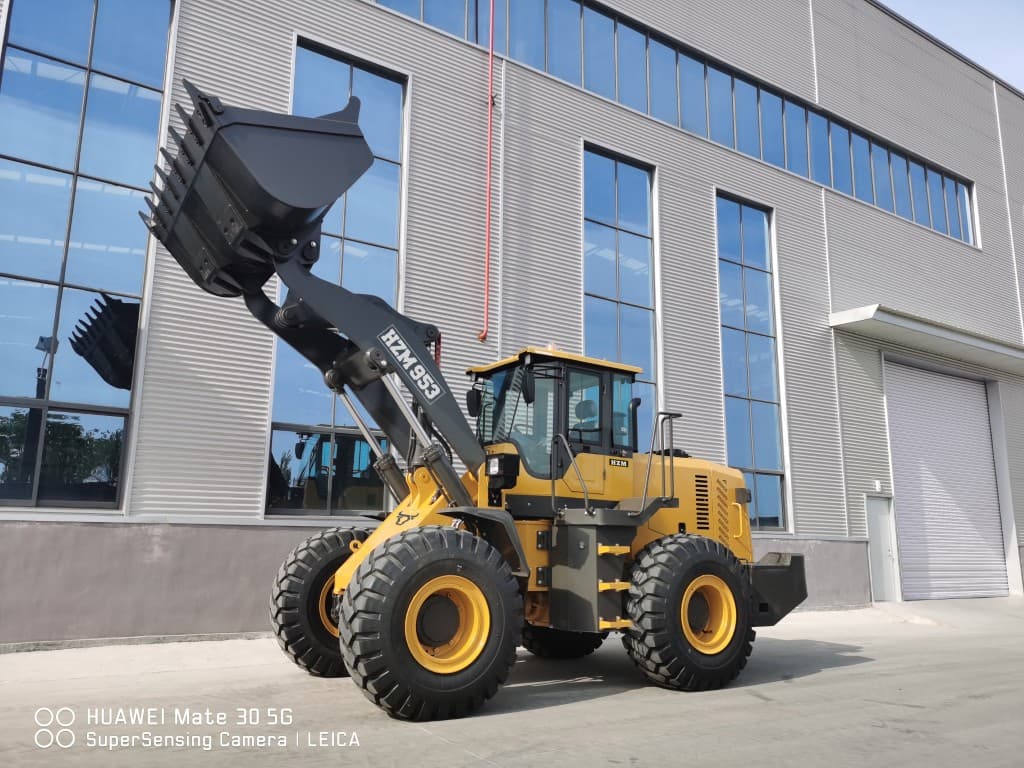

The HZM 953 is the largest loader in the HZM range: 5 000 kg rated load, a 3.0 m³ bucket and a 162 kW Weichai diesel, for mines, quarries and bulk terminals moving serious tonnage.
Five tons per pass
The HZM 953 is a 16.7-ton wheel loader rated for 5 000 kg with a 3.0 m³ bucket. That is close to double the capacity of the HZM 938, so it loads a road truck in far fewer passes and suits operations measured in tons per hour.
Engine and systems

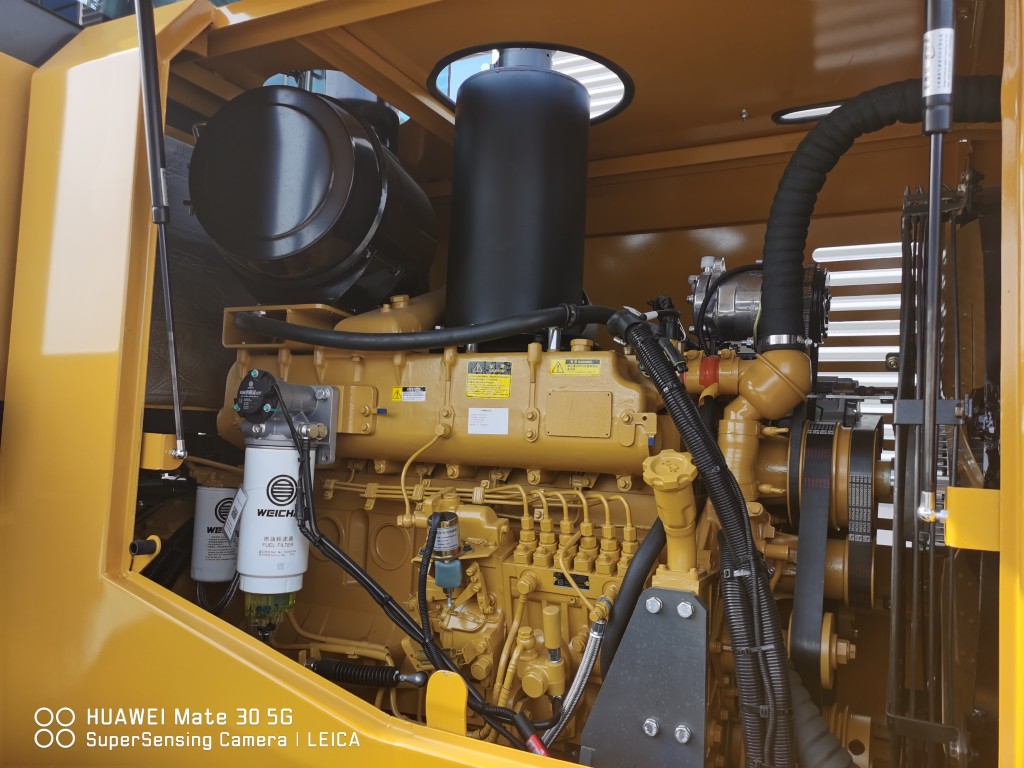

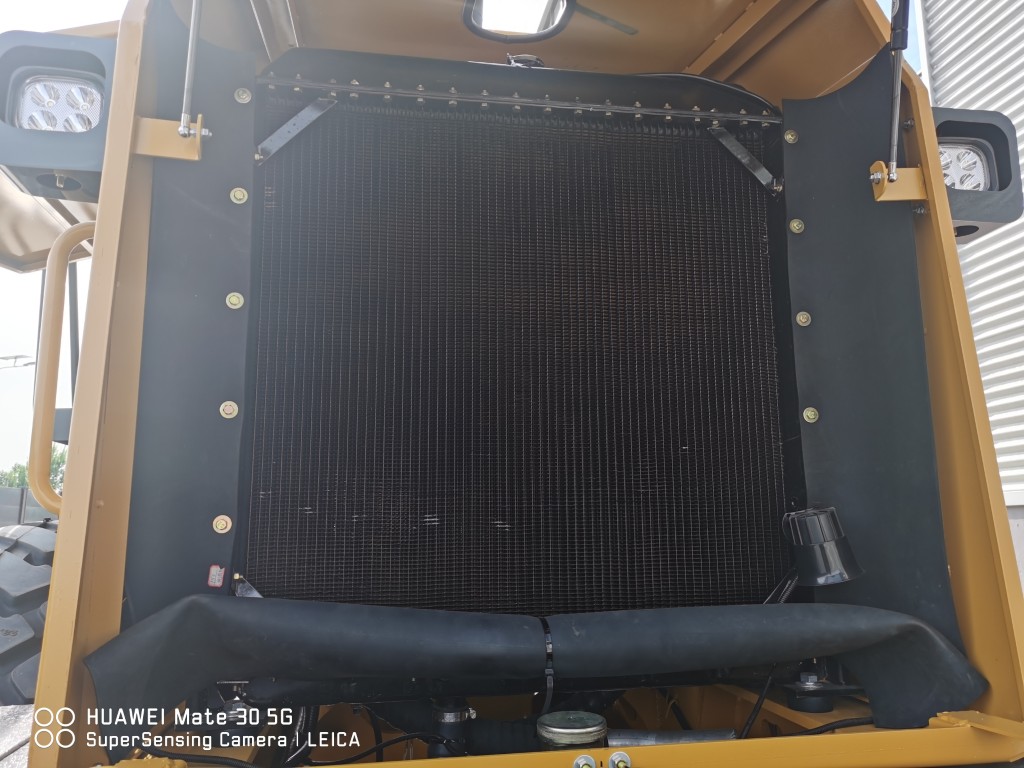

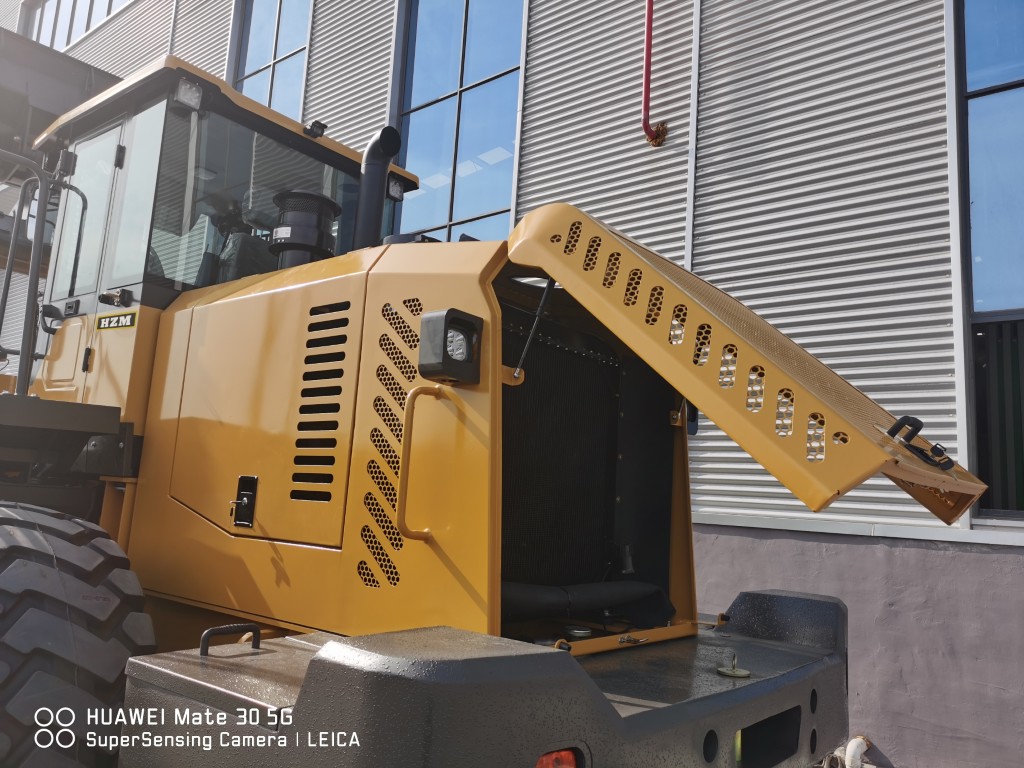

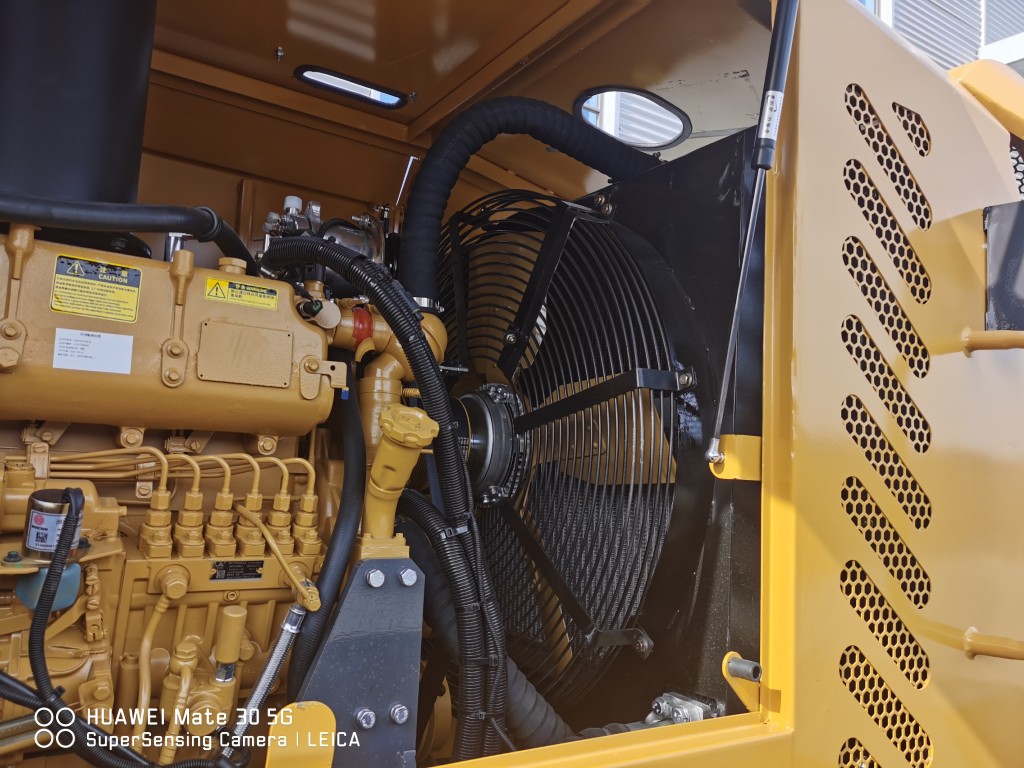

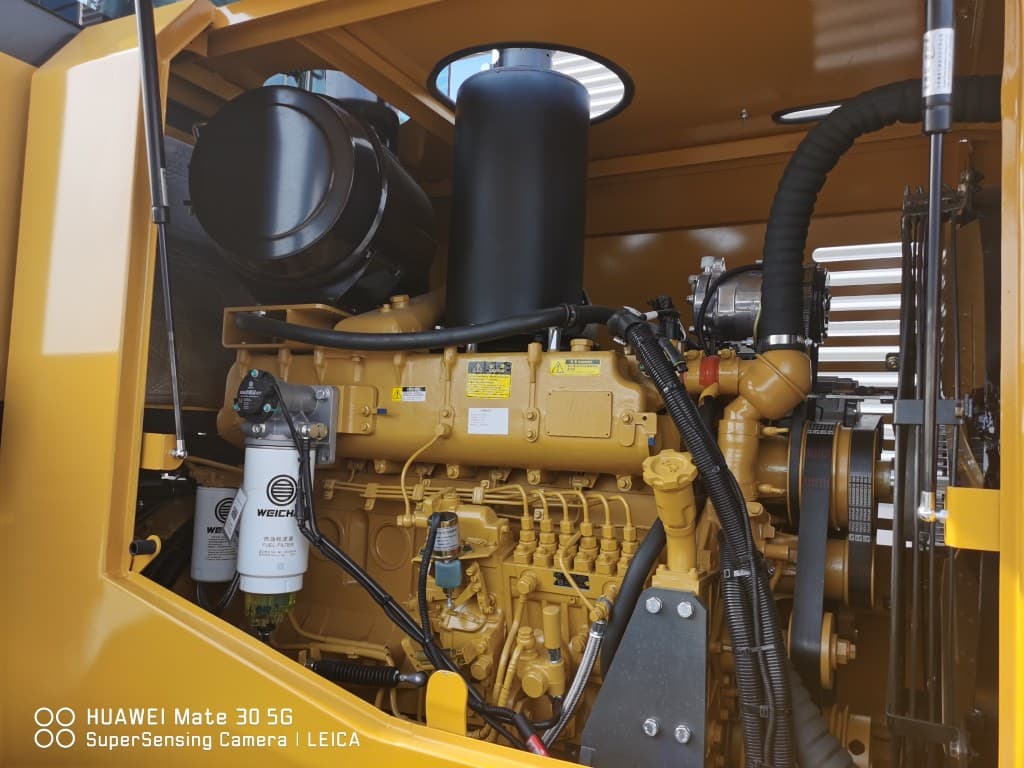

| Engine | Weichai WD10G220E23, 6-cyl water-cooled diesel |
| Rated power | 162 kW (220 hp) at 2 200 rpm |
| Torque converter | YJH340 (Hangchi), fixed-spindle power shift |

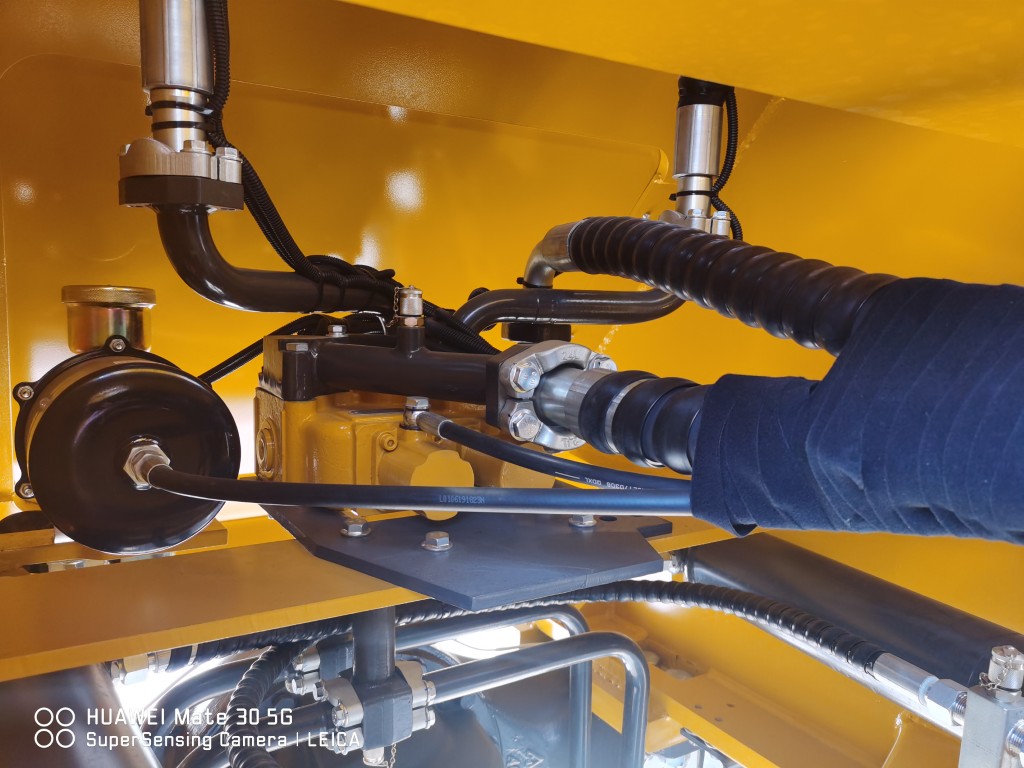

| Hydraulic working pressure | 16 MPa, DF32 distribution valve |

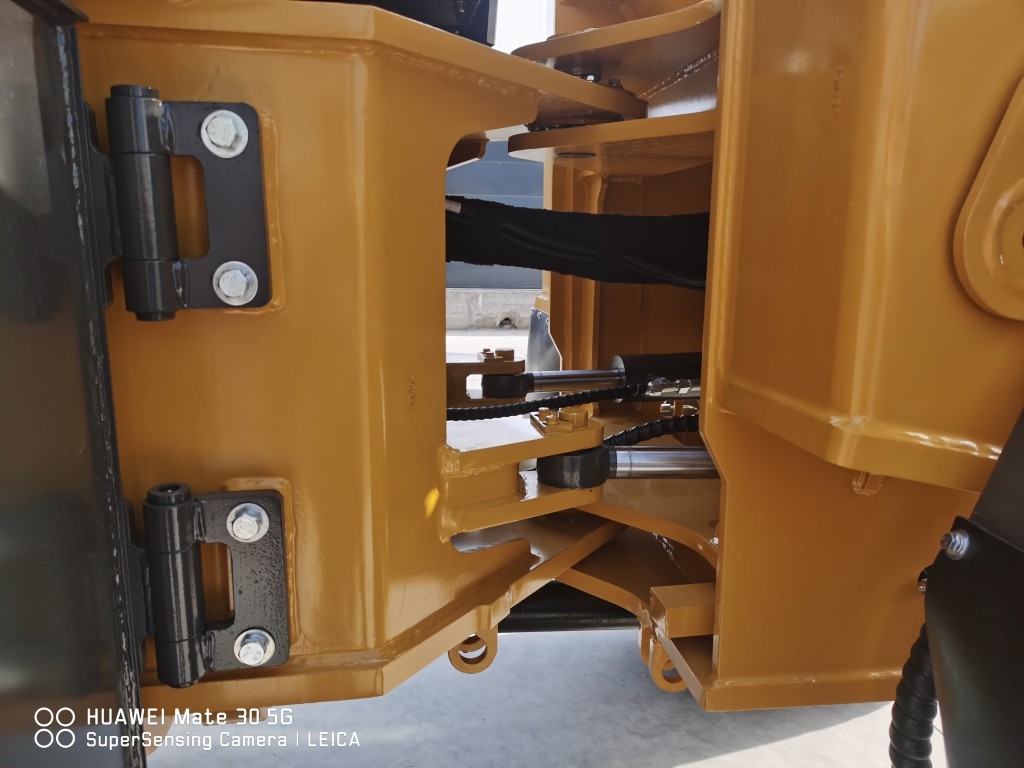

| Steering | Full hydraulic |
| Brakes | Air-over-hydraulic caliper disc; manual caliper-disc parking brake |

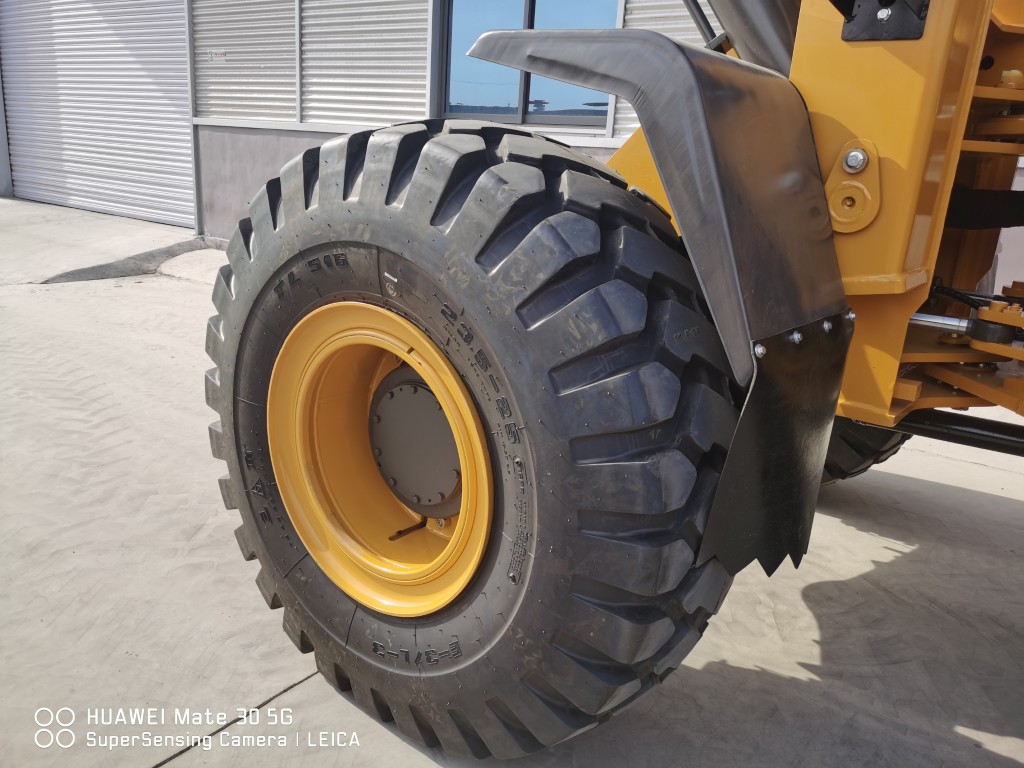

| Tyres | 23.5-25 |
Dimensions and reach
Maximum breakout force 160 kN · maximum dump height 3.05 m · wheelbase 2 920 mm · minimum turning radius 7.25 m · overall 7.72 × 3.03 × 3.38 m · operating weight 16 700 kg.
Who buys a 953
Quarries and mines loading haul trucks, coal, sand and aggregate yards, port and rail bulk terminals, and large civil contractors. Its size needs space to work, so check site access and transport before delivery.
Range
The LGMA LA956 is the other 5-ton, 3 m³ machine MCM supplies. See all front end loaders.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.
No reviews yet
Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.
HZM 953 Front End Loader — Frequently Asked Questions
How much does the HZM 953 Front End Loader cost?
+
The HZM 953 Front End Loader starts from R 1 250 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
What are the key specifications of the HZM 953 Front End Loader?
+
Key specs for the HZM 953 Front End Loader include Engine Power: 162 kW (220 hp), Operating Weight: 16700 kg, Rated Load: 5000 kg, Bucket Capacity: 3.0 m³, Max Dump Height: 3.05 m. See the full spec sheet on this page or request the brochure for complete details.
What is the HZM 953 Front End Loader used for?
+
The HZM 953 Front End Loader is a front-end loader used for loading trucks, moving bulk material like soil, sand, gravel and feed, stockpiling and yard work on farms, quarries and construction sites. It is built for South African conditions and backed by local parts and service support.
Can I finance the HZM 953 Front End Loader?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the HZM 953 Front End Loader?
+
The HZM 953 Front End Loader includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the HZM 953 Front End Loader nationwide?
+
Yes. MCM Group delivers the HZM 953 Front End Loader anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the HZM 953 Front End Loader in South Africa?
+
Buy the HZM 953 Front End Loader from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 250 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
Compare Front End Loaders models
Key specifications and prices side by side to help you pick the right machine.
| Model | Engine Power | Operating Weight | Rated Load | From* (excl. VAT) |
|---|---|---|---|---|
| HZM 953 Front End Loader | 162 kW (220 hp) | 16700 kg | 5000 kg | R 1 250 000 |
| LGMA LA956 Front End Loader | 162 kW (220 hp) | 16500 kg | 5000 kg | R 1 350 000 |
| LGMA LM946 Front End Loader | 97 kW (130 hp) | 8200 kg | 2800 kg | R 725 000 |
| MCM 912 Front End Loader | 36.8 kW (49 hp) | 2200 kg | 800 kg | R 274 500 |
| LGMA LG938 Front End Loader | 74 kW (99 hp) | 5200 kg | 2000 kg | R 599 500 |
* Prices exclude VAT.
