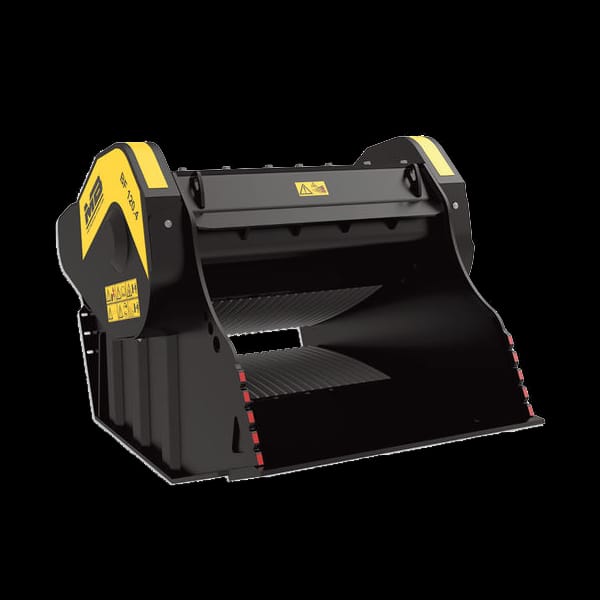

BF120.4 S4 Bucket Crusher available from MCM Group South Africa

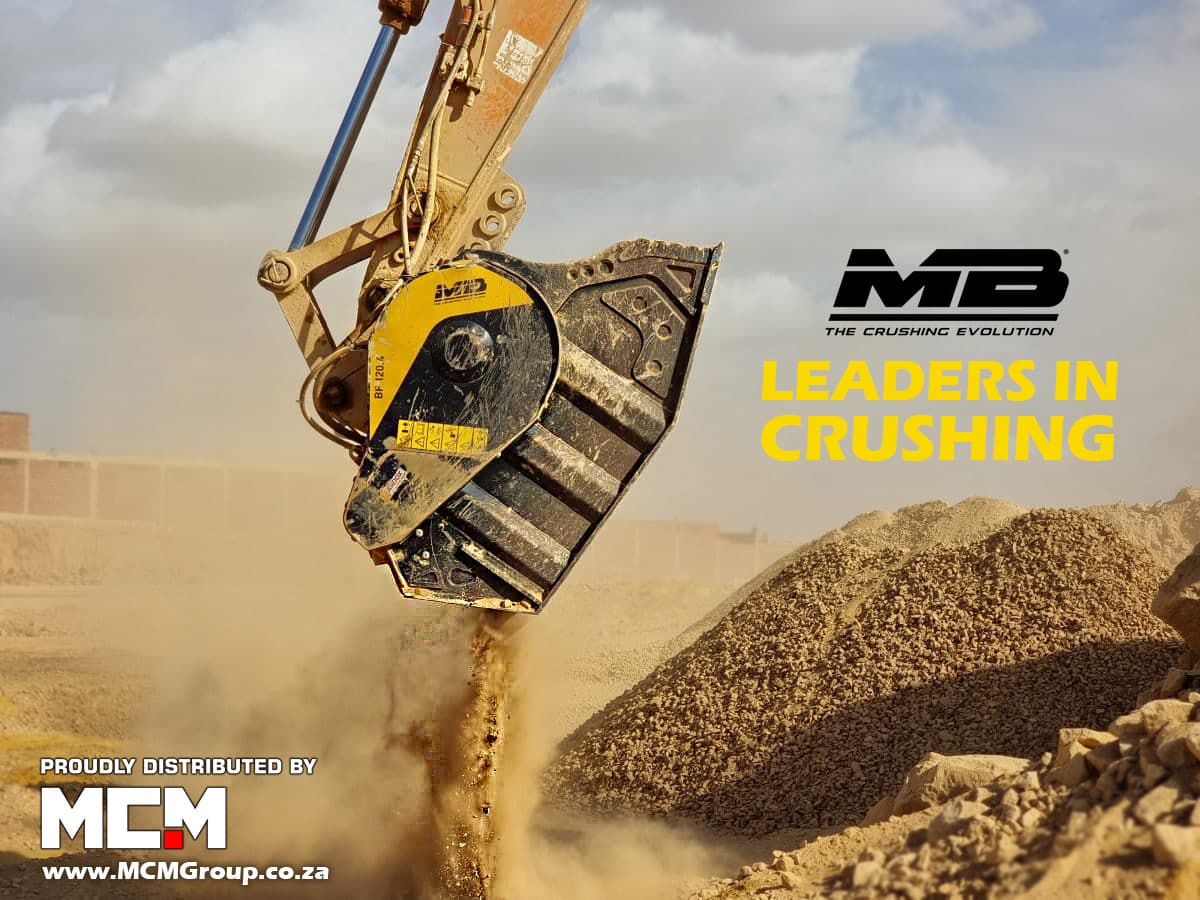

BF120.4 S4 Bucket Crusher

Be the first to review
Bucket Crushers

The BF120.4 S4 Bucket Crusher has 4800 kg working weight and 1.30 m³ load capacity. It costs R 1 085 500 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.

Price and details updated 2 November 2026

R 1 085 500excl. VAT
Working Weight
4800 kg
Load Capacity
1.30 m³
Mouth Opening
1205 x 540 mm
Oil Flow Rate
190 - 250 L/min
Operating Pressure
220 - 280 bar
Carrier Weight Class
30 - 45 t excavator

Delivery

Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy

Need help choosing?

Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.

WhatsApp

Already own one? Request a service

Warranty included
Nationwide delivery
Finance in 48-72h
Parts stocked in SA

Key facts: BF120.4 S4 Bucket Crusher

Fits
30 - 45 t excavator
Size
3rd largest of our 12 bucket crushers by working weight: 4800 kg
Next size down
MB BF90.3 Bucket Crusher: 3500 kg, R 945 000 excl. VAT
Next size up
BF135.8 Bucket Crusher: 7500 kg, R 1 595 000 excl. VAT
Price
R 1 085 500 excl. VAT
Buy from
our branches in Cape Town, George, Bloemfontein and Midrand

Overview

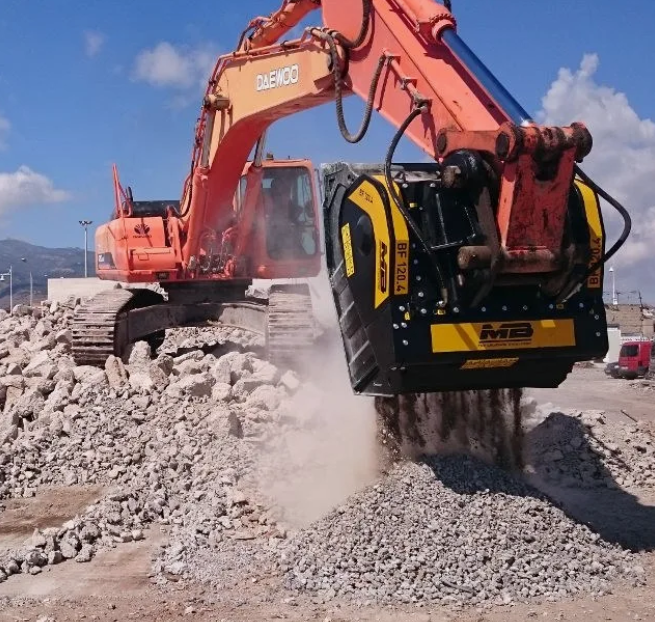

The MB BF120.4 S4 is a 4.8 t bucket crusher with a 1 205 × 540 mm mouth and 1.30 m³ capacity, for 30–45 t excavators.

For 30-ton-plus excavators

The BF120.4 S4 opens 1 205 mm wide and carries 1.30 m³, so big excavators of 30–45 t keep their cycle times while crushing. It needs 190–250 L/min of oil.

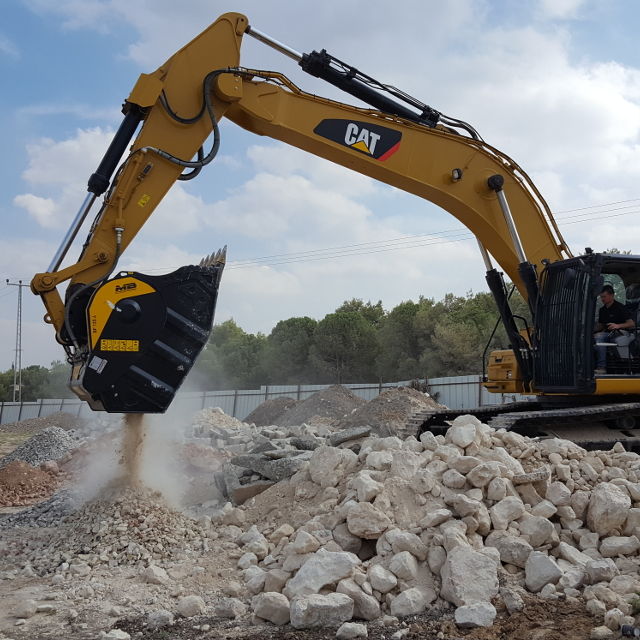

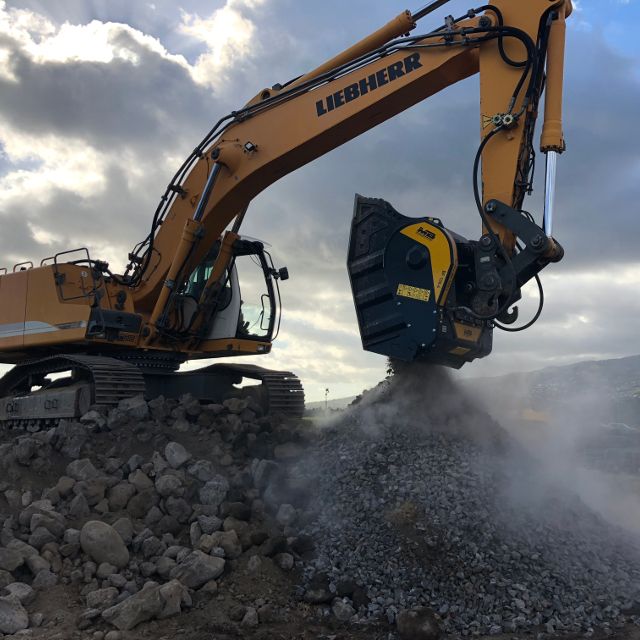

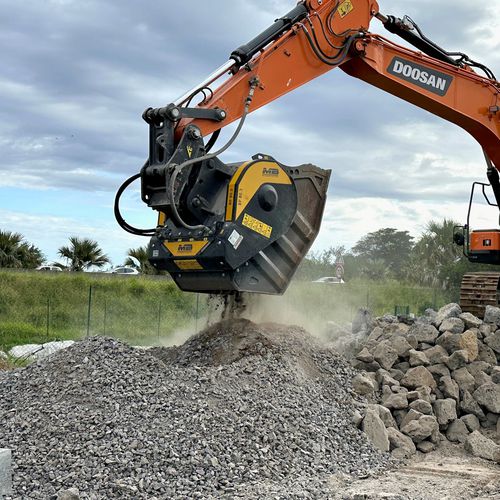

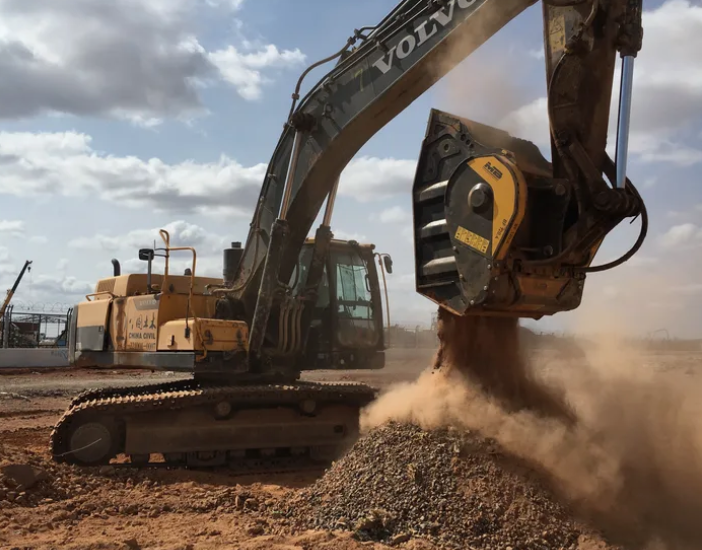

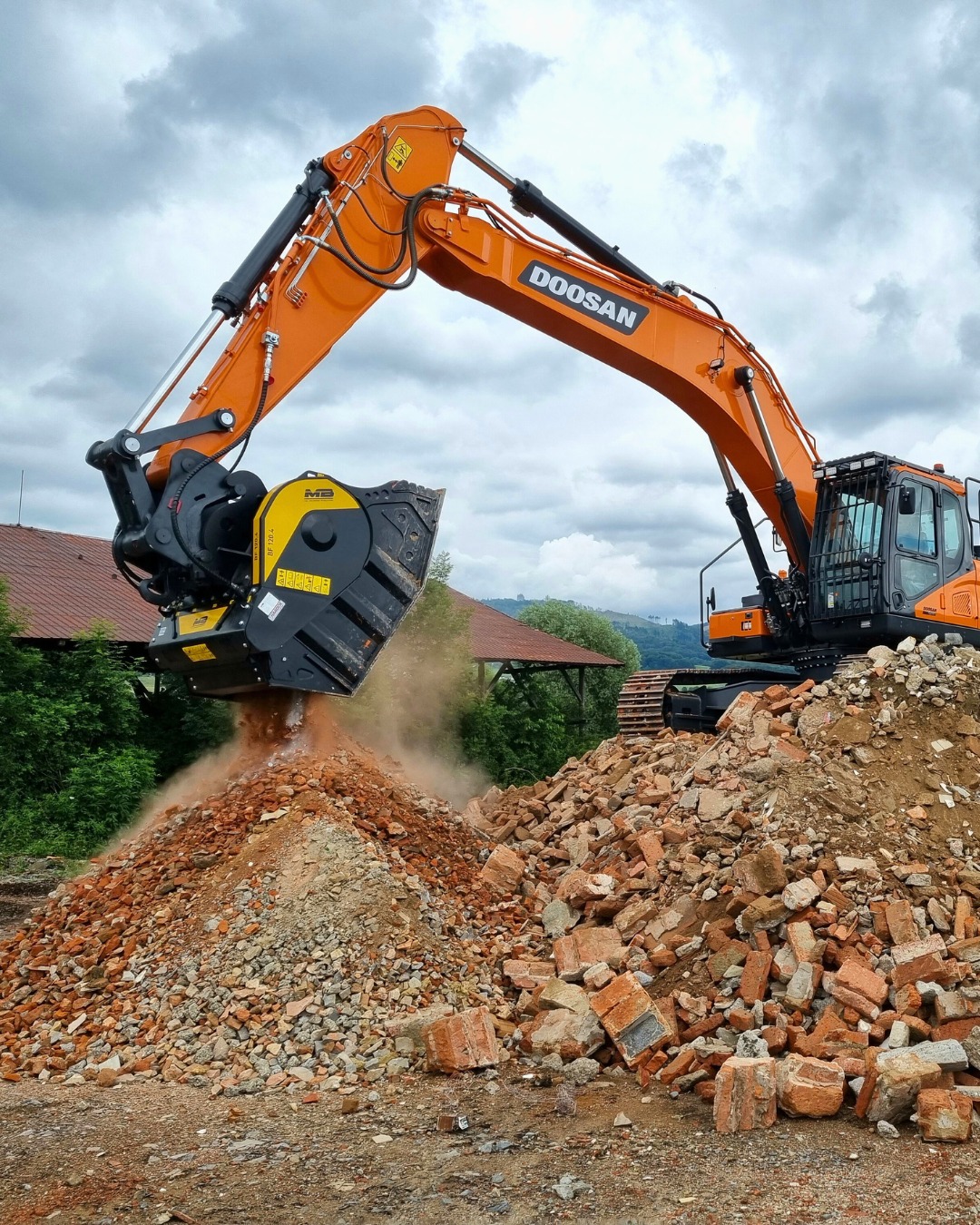

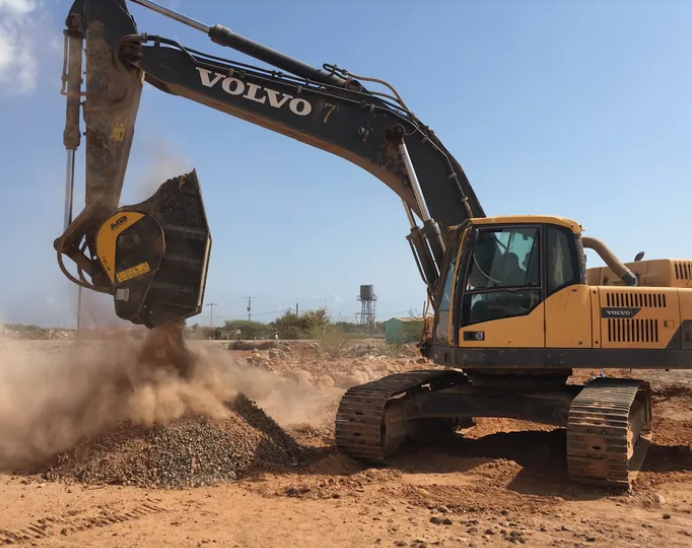

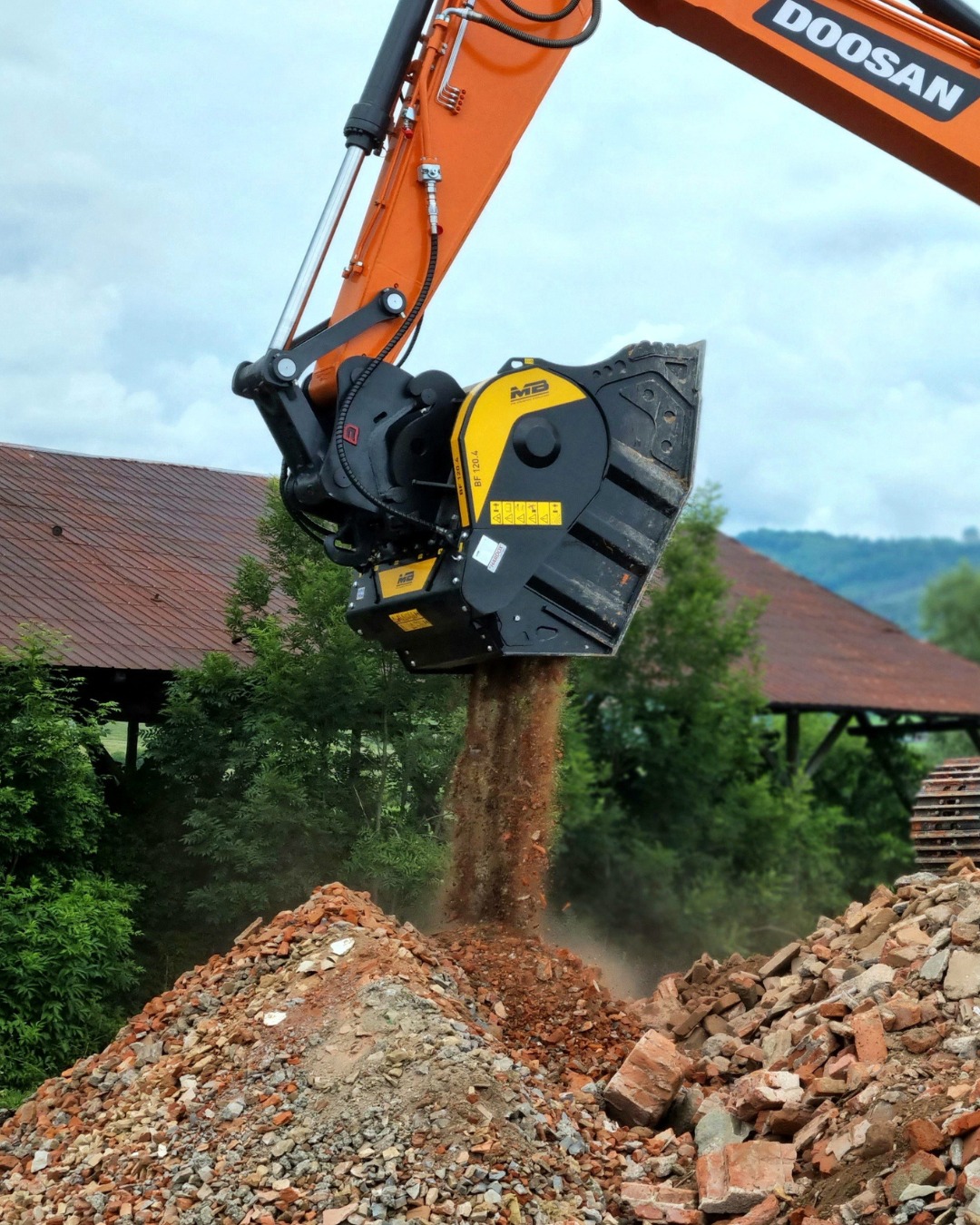

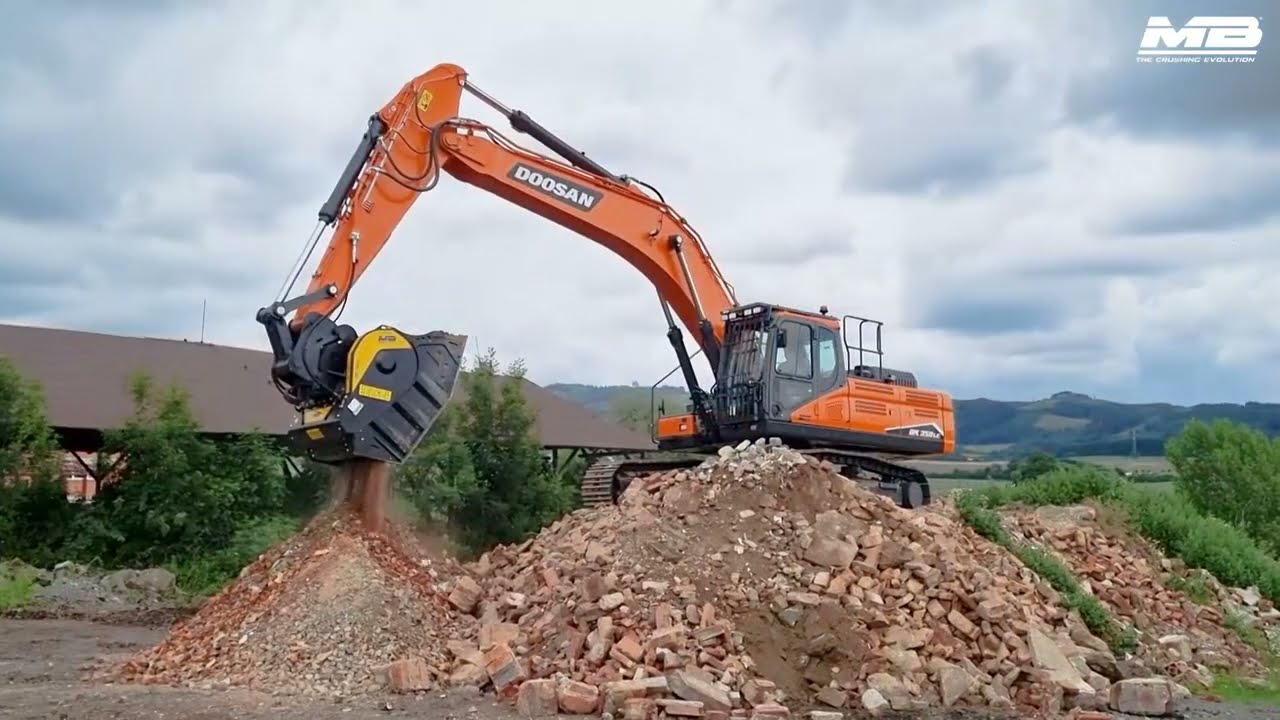

A bucket crusher is a jaw crusher built into a bucket. The operator scoops rubble through the mouth, lifts it and runs the jaw; crushed material drops out of the back at a controlled size, ready to be reused as fill or sub-base.

Specifications

  • Working weight: 4 800 kg
  • Load capacity: 1.30 m³
  • Mouth opening: 1 205 × 540 mm
  • Oil flow: 190–250 L/min
  • Operating pressure: 220–280 bar
  • Carrier: 30–45 t excavator

Applications

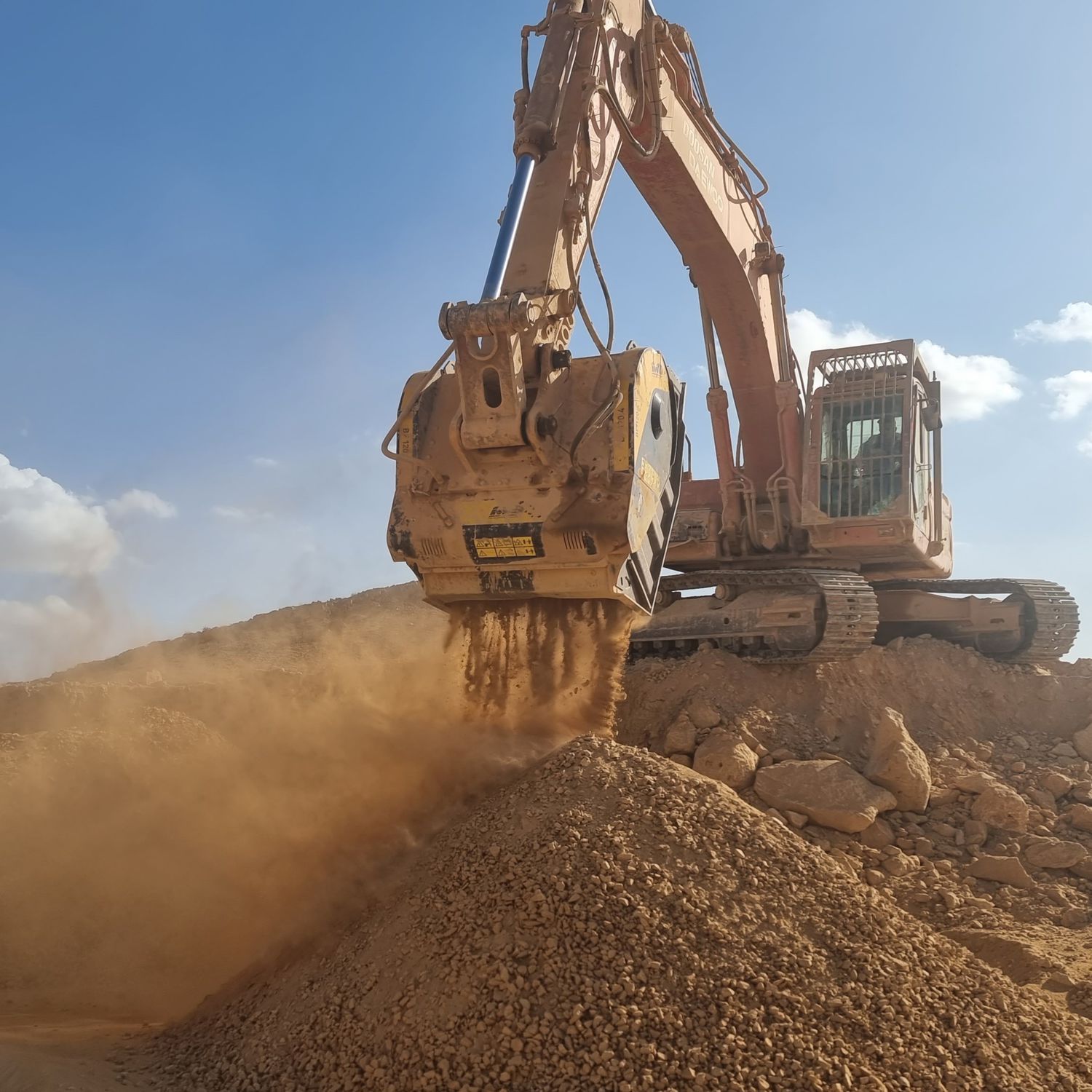

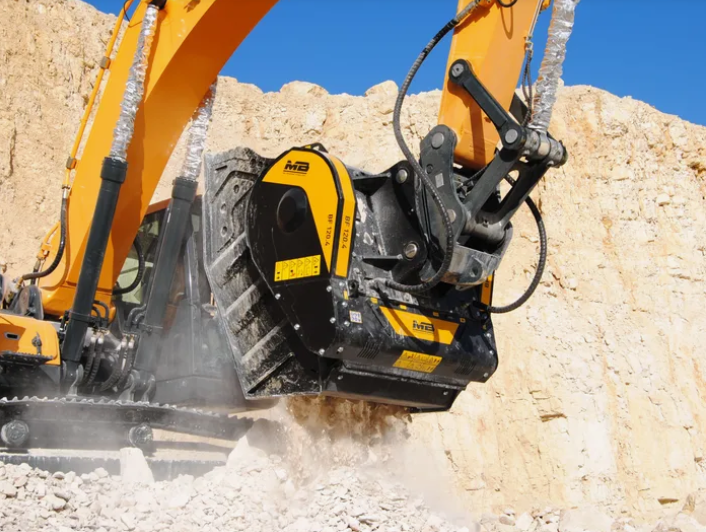

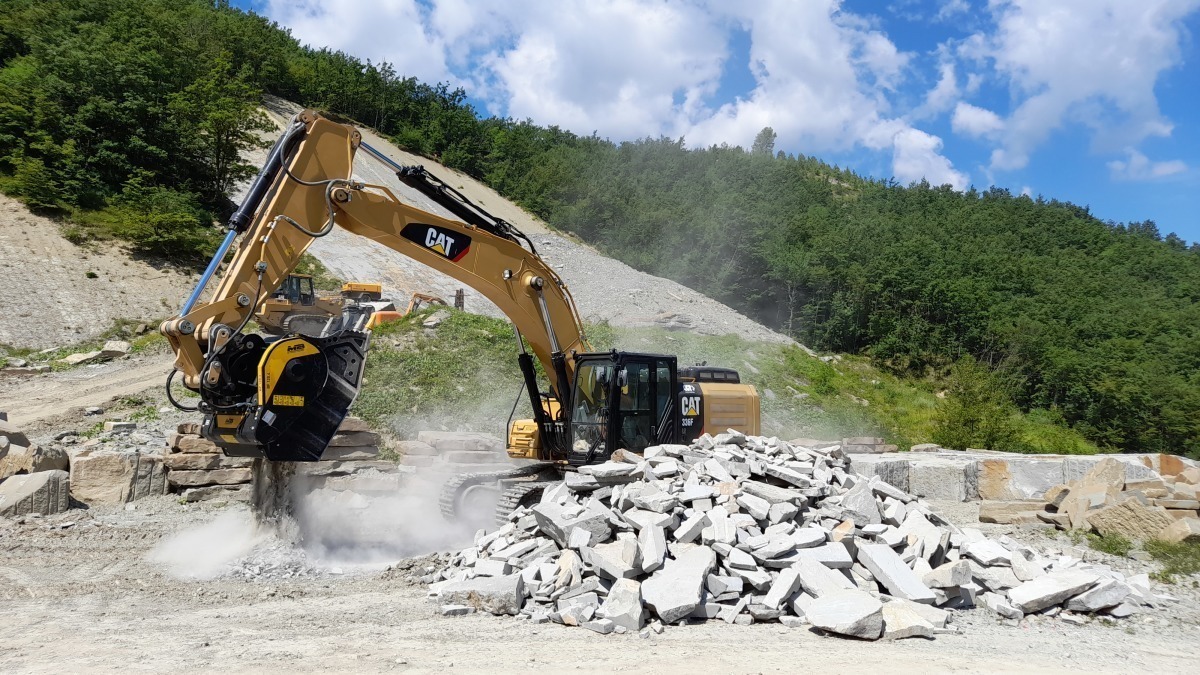

Mine and quarry work, bulk demolition, and crushing oversize rock at the face instead of hauling it to a plant.

Price: R 1 085 500 excl. VAT. Next: BF135.8. All bucket crushers.

Ready to take the next step?

Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.

+27 81 885 0535 sales@mcmco.co.za Cape Town · George · Midrand · Bloemfontein
Get Price

No reviews yet

Be the first to review this machine. Bought one from MCM? Share your experience to help other buyers.

BF120.4 S4 Bucket Crusher — Frequently Asked Questions

How much does the BF120.4 S4 Bucket Crusher cost?

+

The BF120.4 S4 Bucket Crusher starts from R 1 085 500 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.

What are the key specifications of the BF120.4 S4 Bucket Crusher?

+

Key specs for the BF120.4 S4 Bucket Crusher include Working Weight: 4800 kg, Load Capacity: 1.30 m³, Mouth Opening: 1205 x 540 mm, Oil Flow Rate: 190 - 250 L/min, Operating Pressure: 220 - 280 bar. See the full spec sheet on this page or request the brochure for complete details.

Can I finance the BF120.4 S4 Bucket Crusher?

+

Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.

What warranty and support comes with the BF120.4 S4 Bucket Crusher?

+

The BF120.4 S4 Bucket Crusher includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.

Does MCM Group deliver the BF120.4 S4 Bucket Crusher nationwide?

+

Yes. MCM Group delivers the BF120.4 S4 Bucket Crusher anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.

Where can I buy the BF120.4 S4 Bucket Crusher in South Africa?

+

Buy the BF120.4 S4 Bucket Crusher from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 1 085 500 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.

Compare Bucket Crushers models

Key specifications and prices side by side to help you pick the right machine.

ModelWorking WeightLoad CapacityMouth OpeningFrom* (excl. VAT)
BF120.4 S4 Bucket Crusher4800 kg1.30 m³1205 x 540 mmR 1 085 500
MB-L200 S2 Bucket Crusher1500 kg0.43 m³1185 x 280 mmRequest quote
MB-L160 S2 Bucket Crusher1450 kg0.35 m³1180 x 280 mmR 499 500
MB-L140 S2 Bucket Crusher980 kg0.20 m³800 x 250 mmR 475 500
MB-L120 S2 Bucket Crusher950 kg0.19 m³790 x 250 mmR 445 500

* Prices exclude VAT.
