The HZM 45-12S TLB is a backhoe loader with 40 kW engine power and 3500 kg operating weight. It costs R 475 000 excl. VAT, with finance, nationwide delivery and a local warranty from MCM Group's four branches.
Delivered anywhere in South Africa by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping. Shipping & delivery policy
Need help choosing?
Talk to an MCM equipment specialist about specs, attachments, finance & nationwide delivery.
5.0 out of 5 from 2 reviews. Latest, from Frans Luck (October 2025): “Die TLB doen sy ding. Ons is besig om wingerd te vestig en ek's bly ek het my eie een vir hierdie job. Het my al heelwat gespaar in huur kostes.” Read the reviews

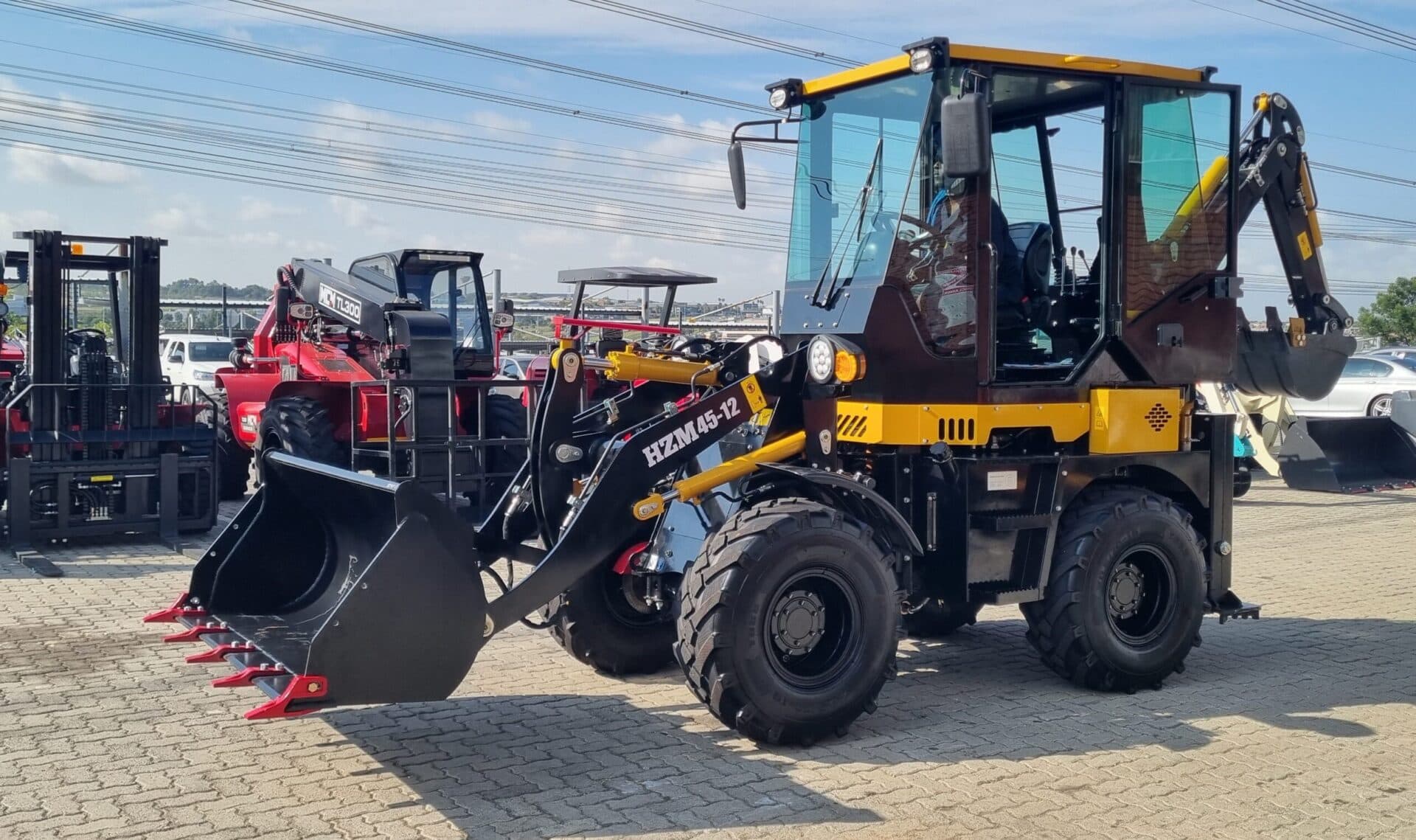

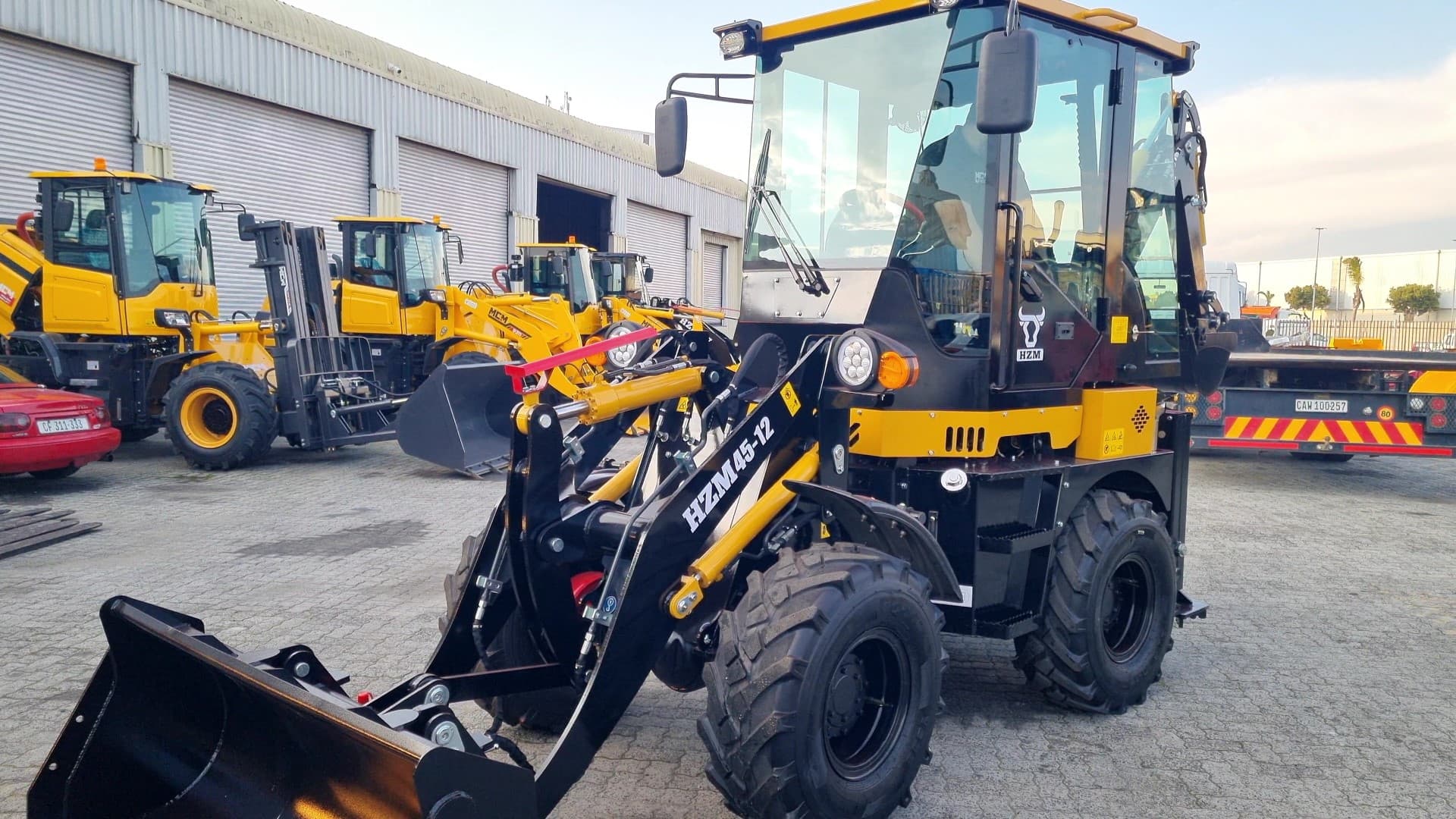

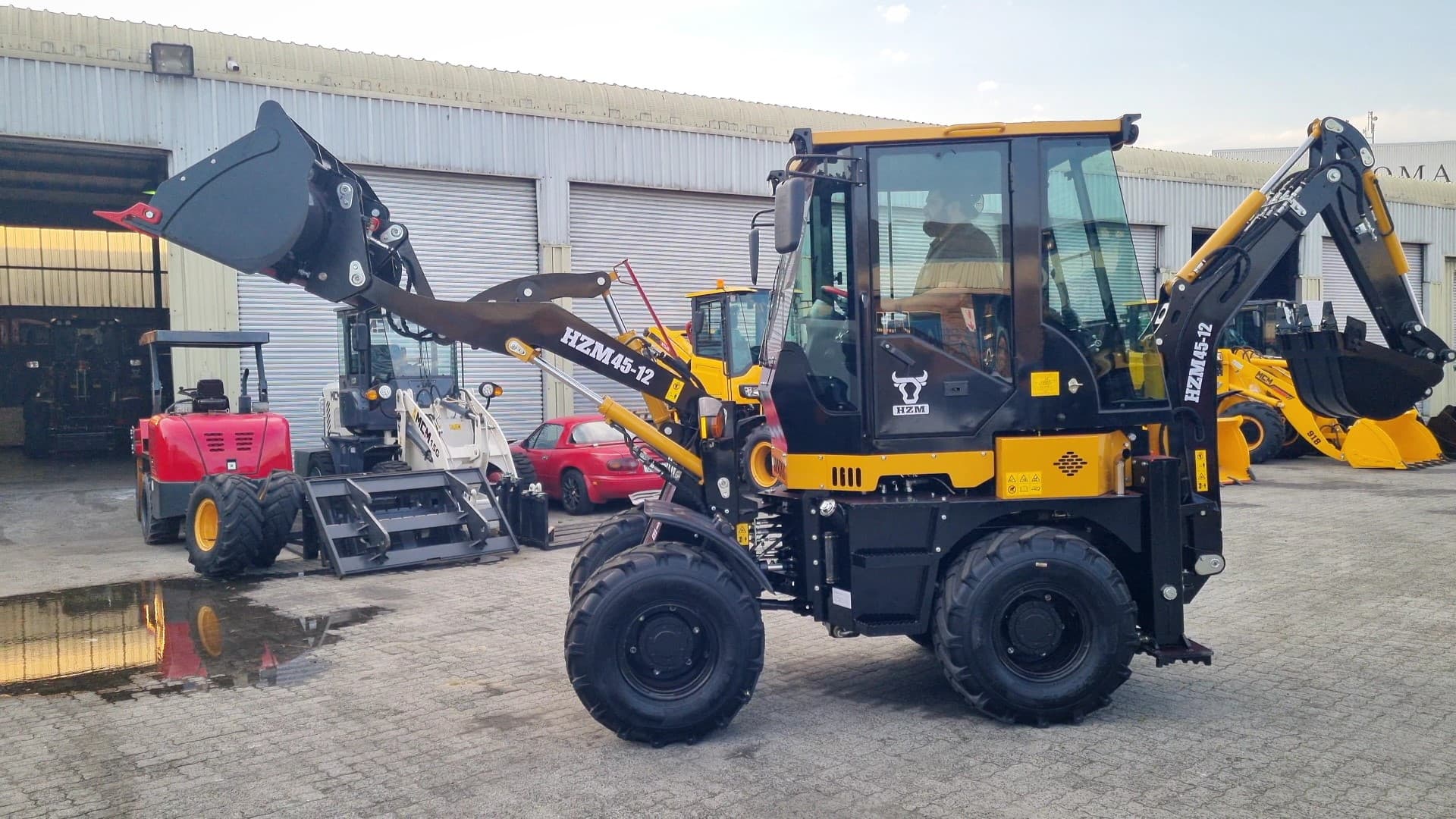

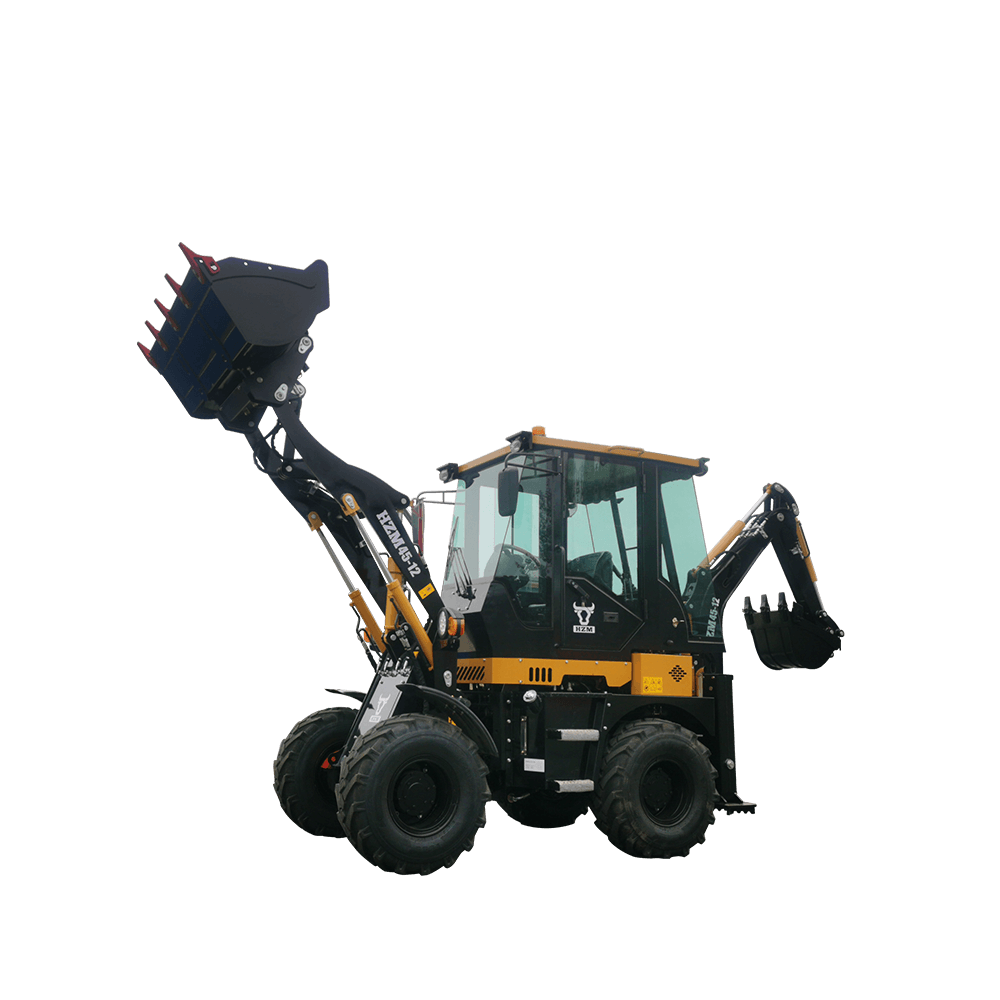

The HZM 45-12S is a 3.5-ton mini backhoe loader with a 40 kW Xinchai diesel, a 0.8 m³ loader bucket and 2.63 m digging depth, compact enough for tight residential and farm sites.
Compact TLB, bigger bucket

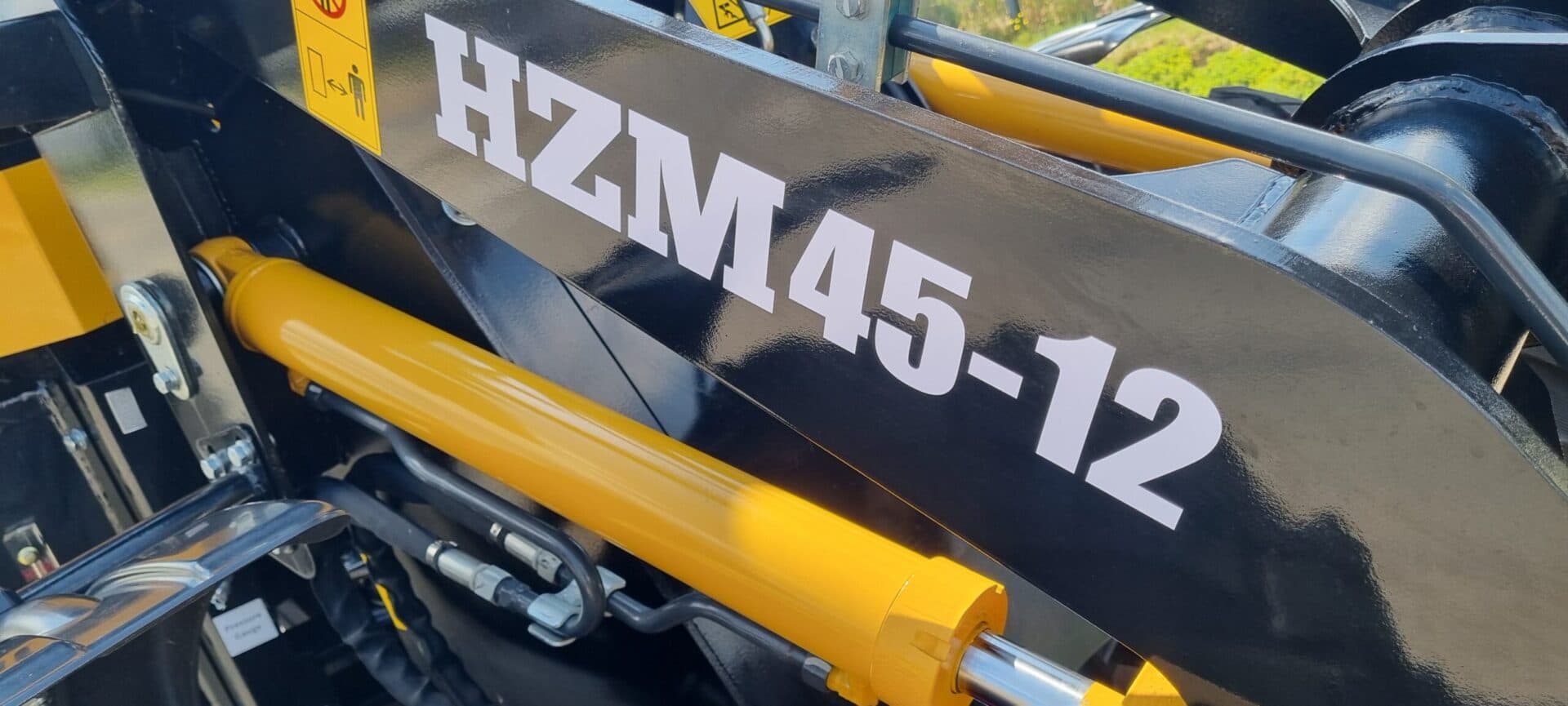

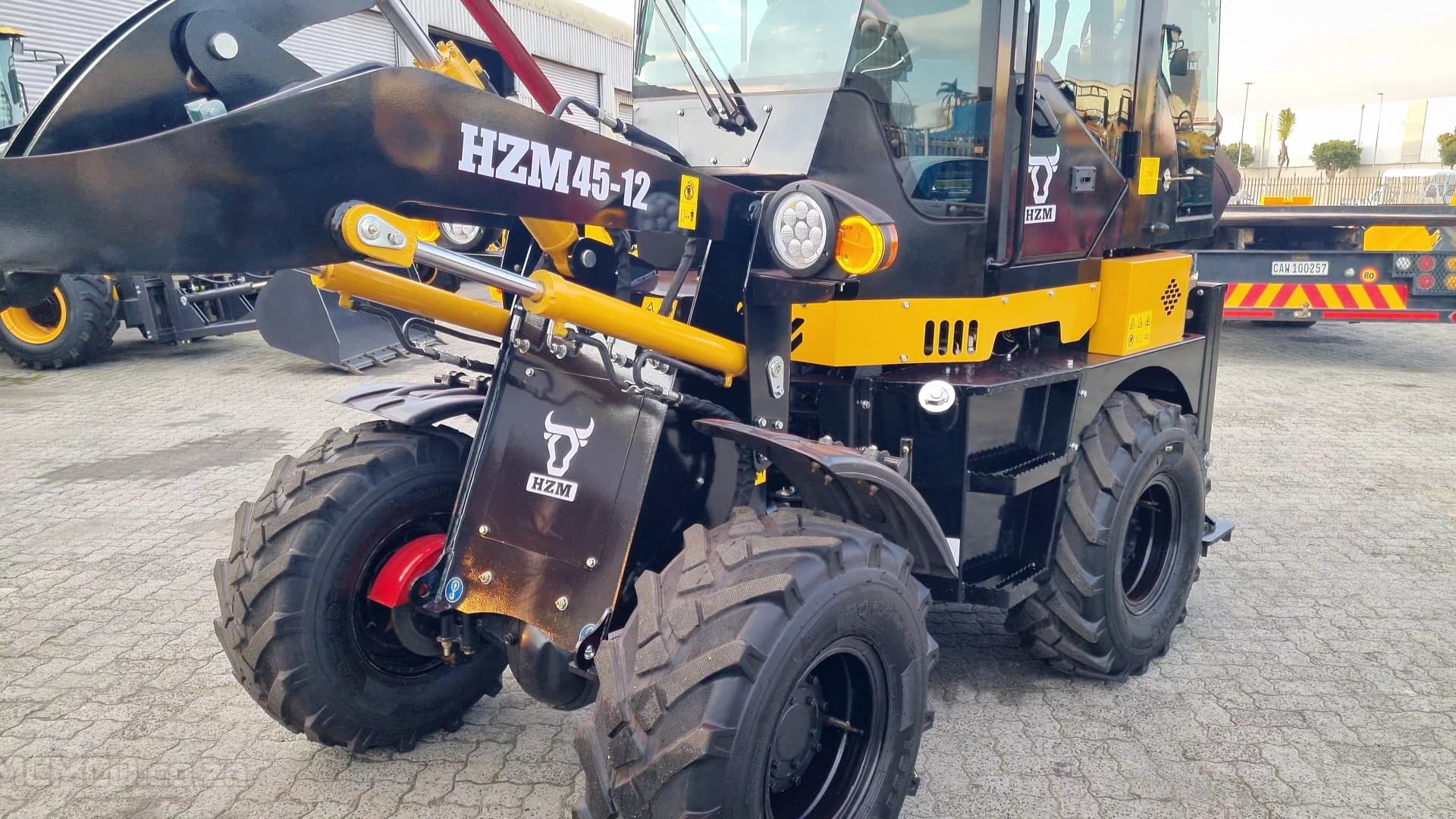

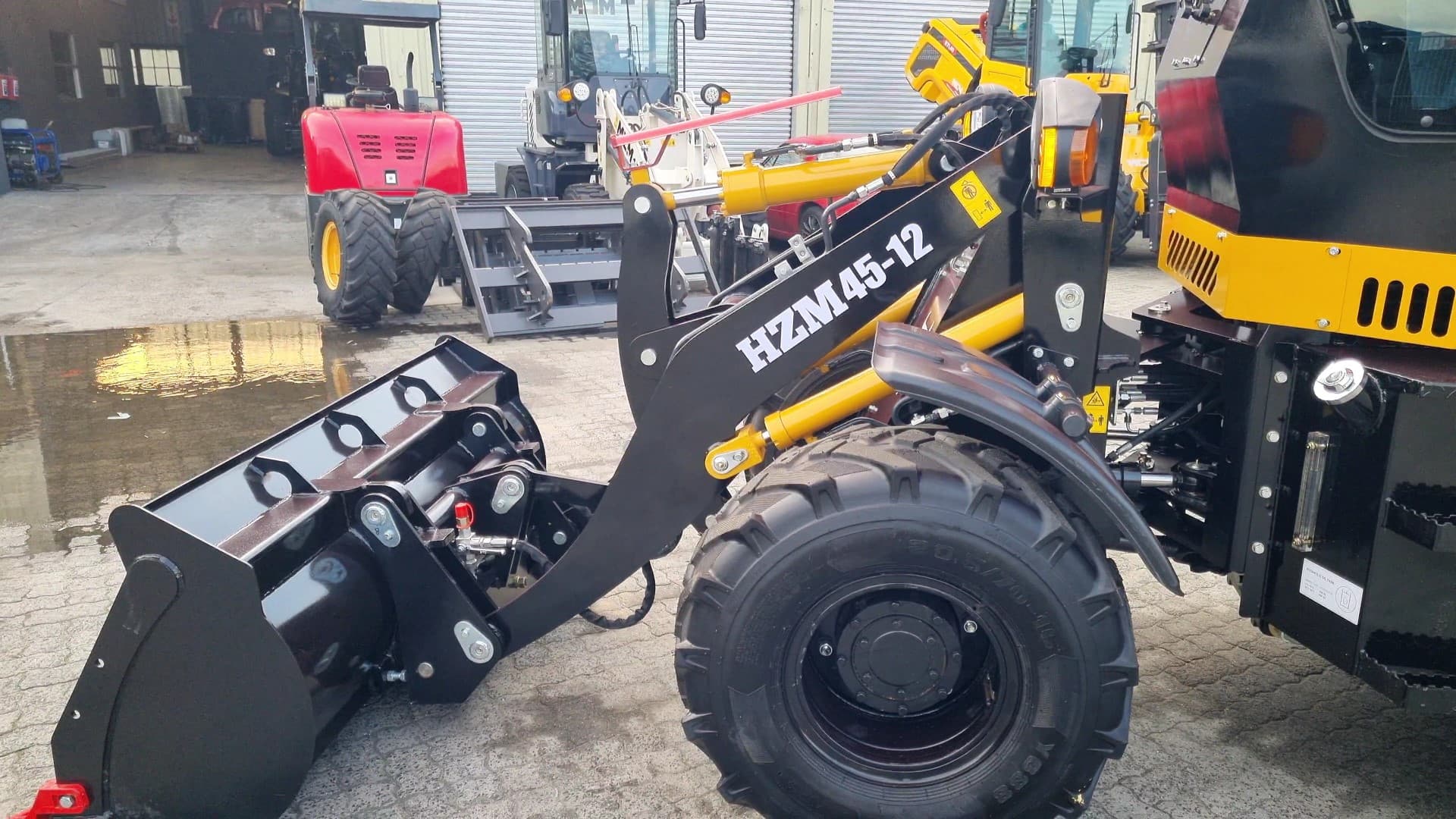

The HZM 45-12S is a mini backhoe loader for contractors who want TLB versatility without a full-size machine. Its fixed loader arm carries a 0.8 m³ bucket with a 1 200 kg rated load, and the rear backhoe digs to 2.63 m with a 0.2 m³ bucket.
Specifications
Engine: Xinchai 490, 40 kW
Operating weight: 3 500 kg
Loader bucket: 0.8 m³; rated load 1 200 kg
Dumping height: 2 755 mm; dumping distance 1 116 mm
Transmission: 265 torque converter, two forward and two reverse gears; up to 18 km/h
Tyres: 20.5/70-16; wheelbase 1 775 mm
Length × width × height: 5 629 × 1 680 × 2 746 mm
Who buys it
Small builders, landscapers, irrigation and pipeline contractors, and farms. It loads and backfills with the bigger bucket, then digs trenches and footings with the backhoe, and turns in a 3 000 mm radius on tight sites.
Need more lift height?
The HZM 45-12T swaps the fixed arm for a telescopic boom that dumps at 3 638 mm. Compare all backhoe loaders.
Ready to take the next step?
Get a personalised quote, finance options, and full after-sales support from MCM Group's nationwide branch network.

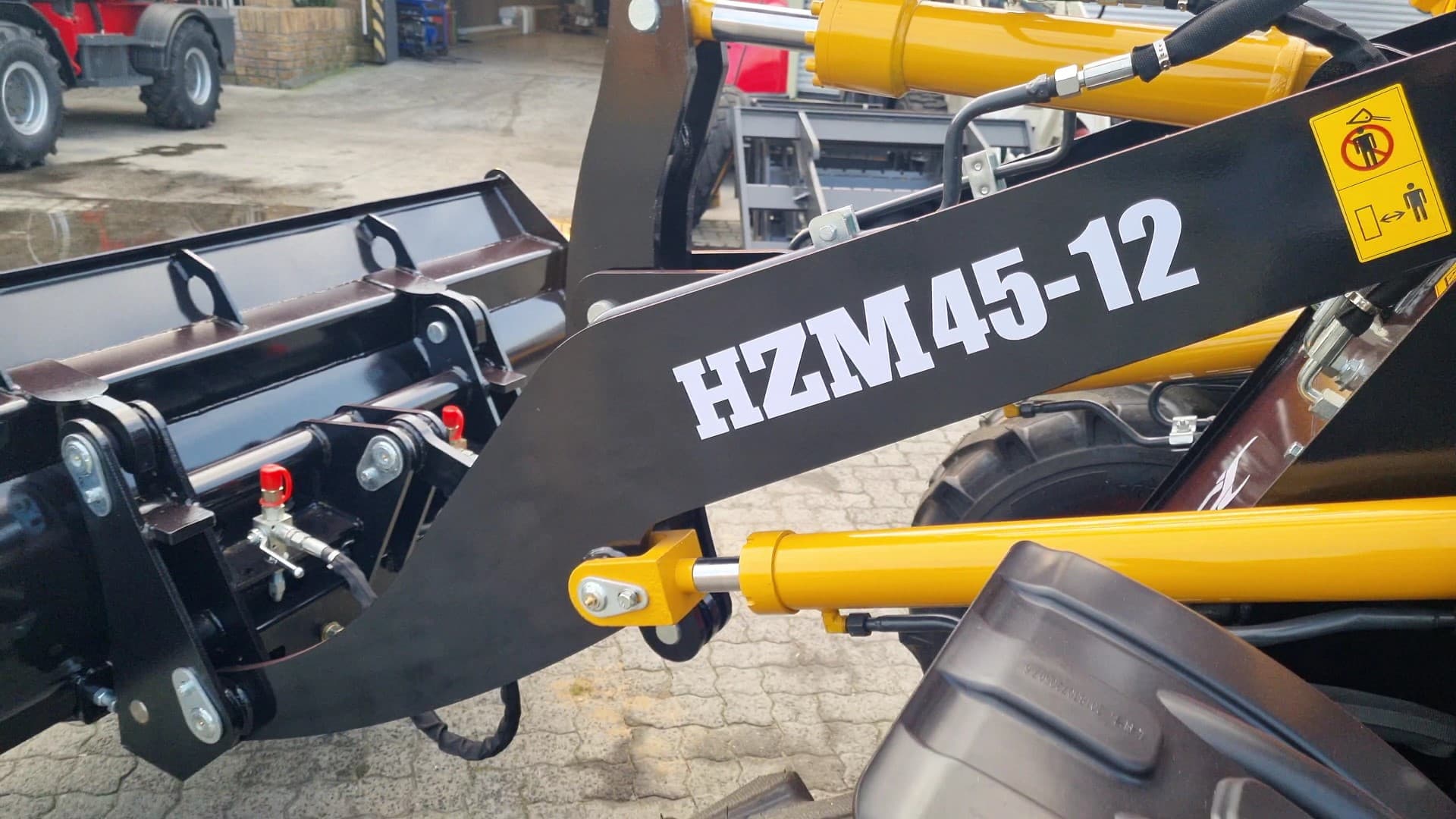

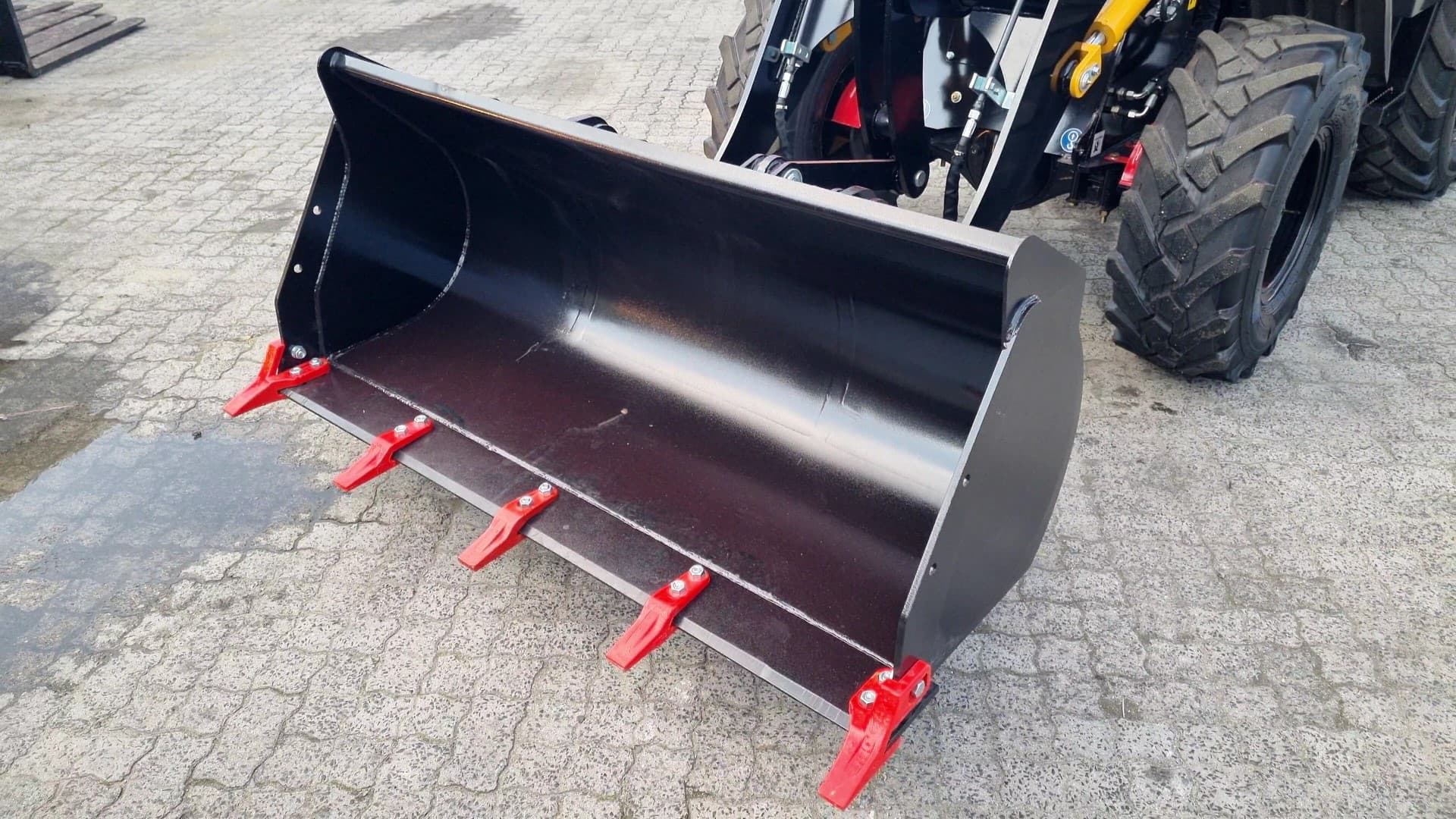

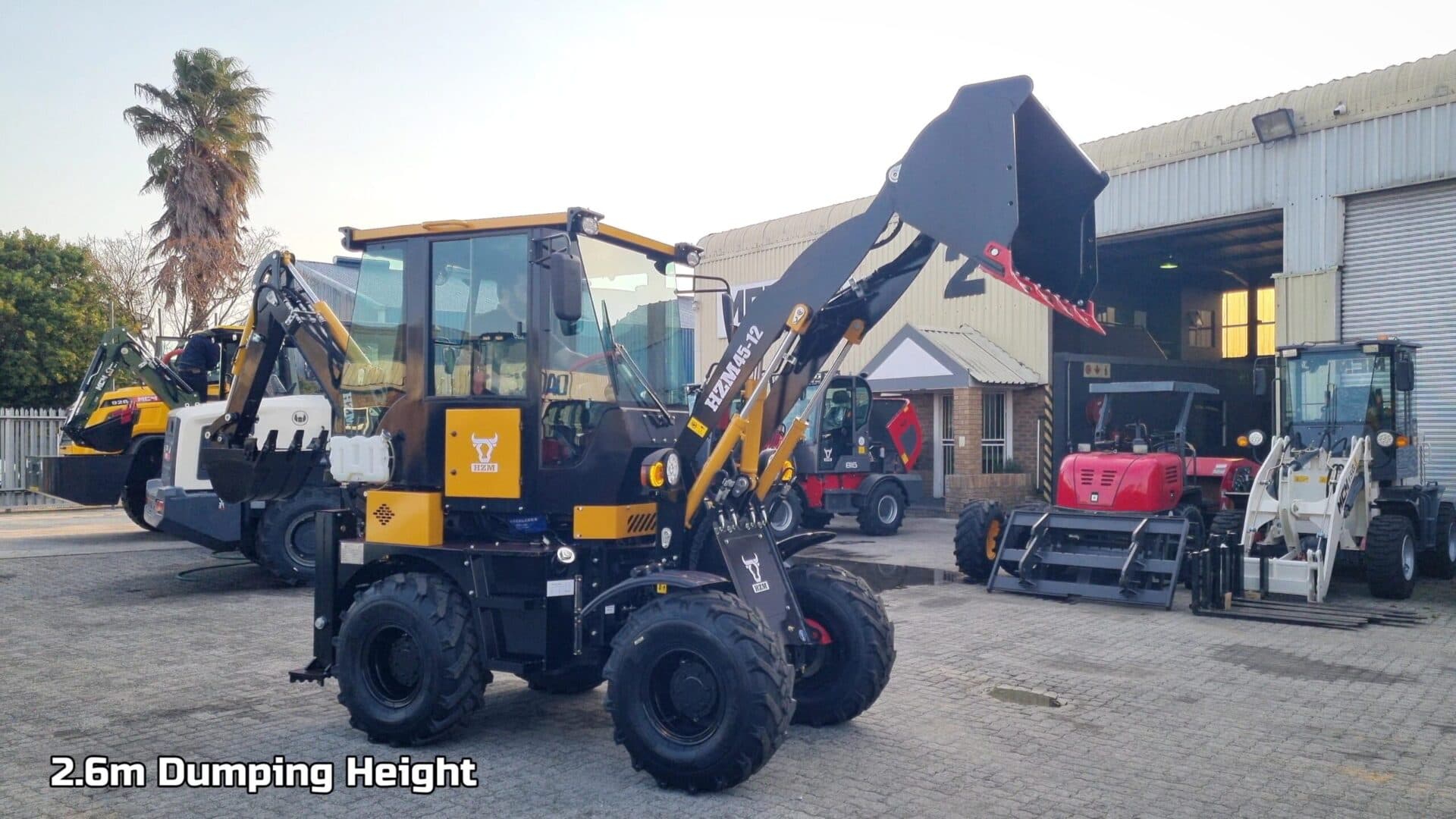

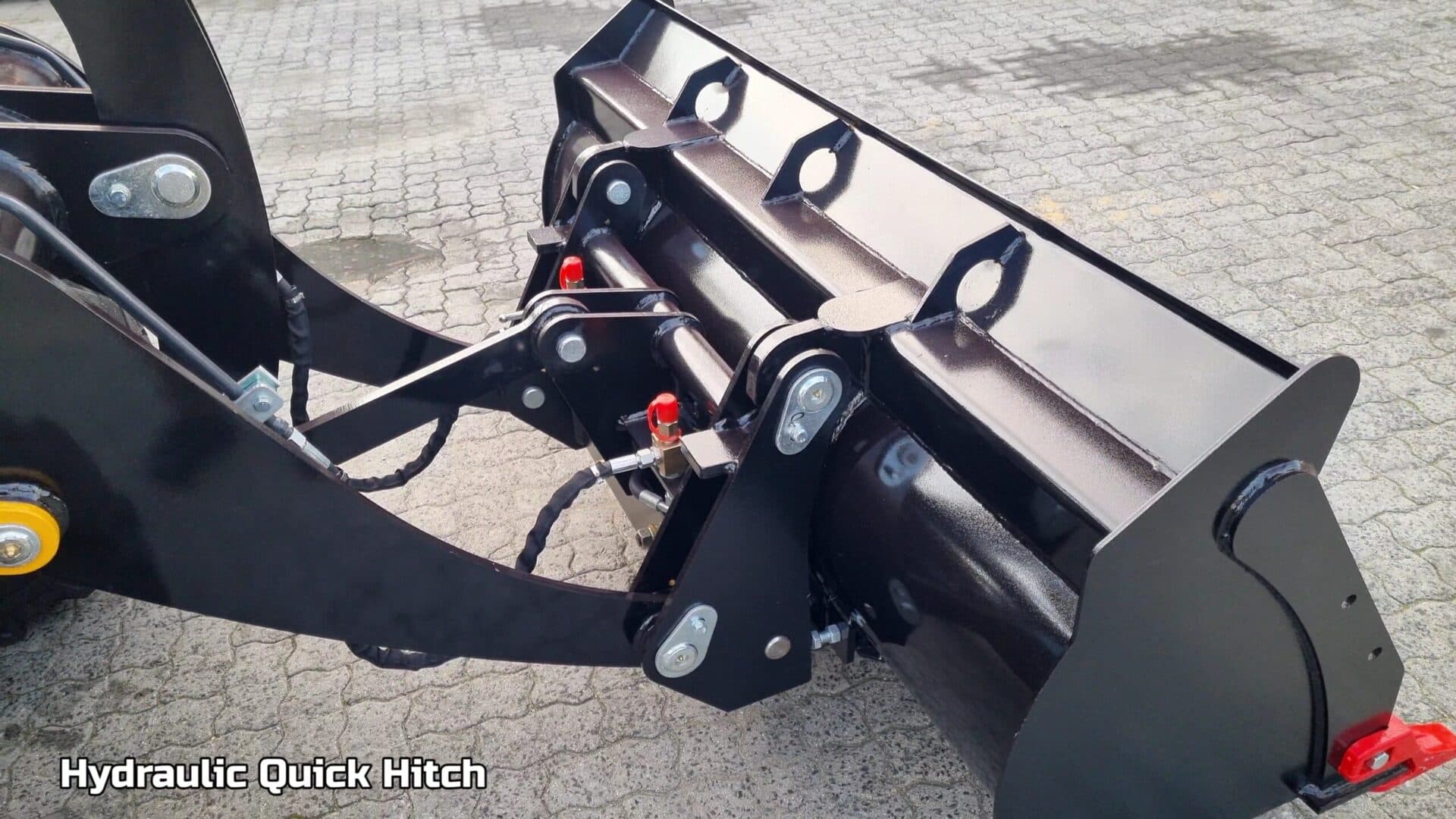

The HZM 45-12S carries a 0.8 m³ loader bucket with a 1 200 kg lifting capacity. A dumping height of 2 755 mm and a dumping distance of 1 116 mm let it load a tipper truck cleanly, and the hydraulic quick hitch makes it quick to change the bucket for other attachments. Backfilling, levelling and moving soil, sand and stone all go faster.

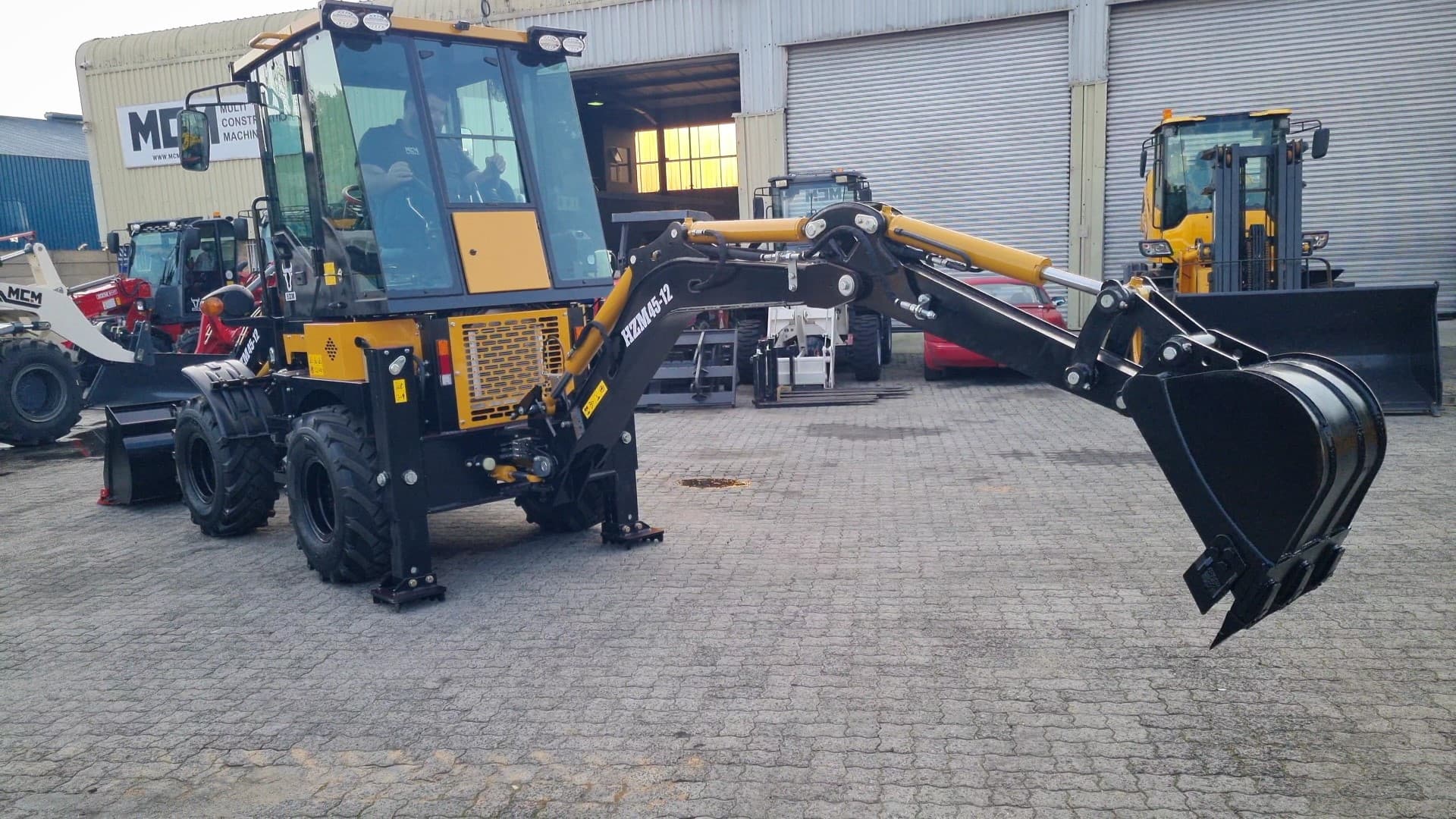

Backhoe Digs To 2.63 m

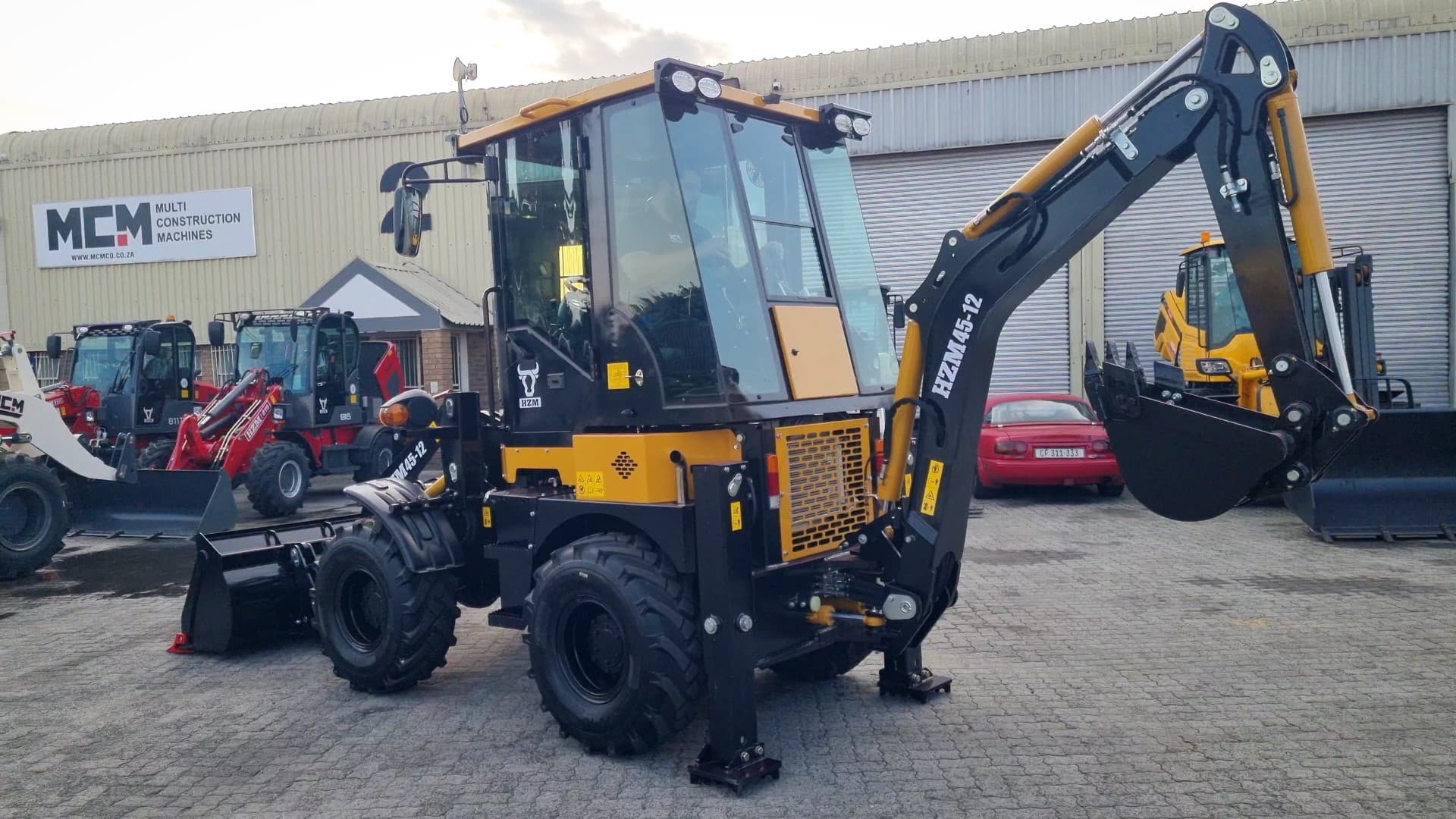

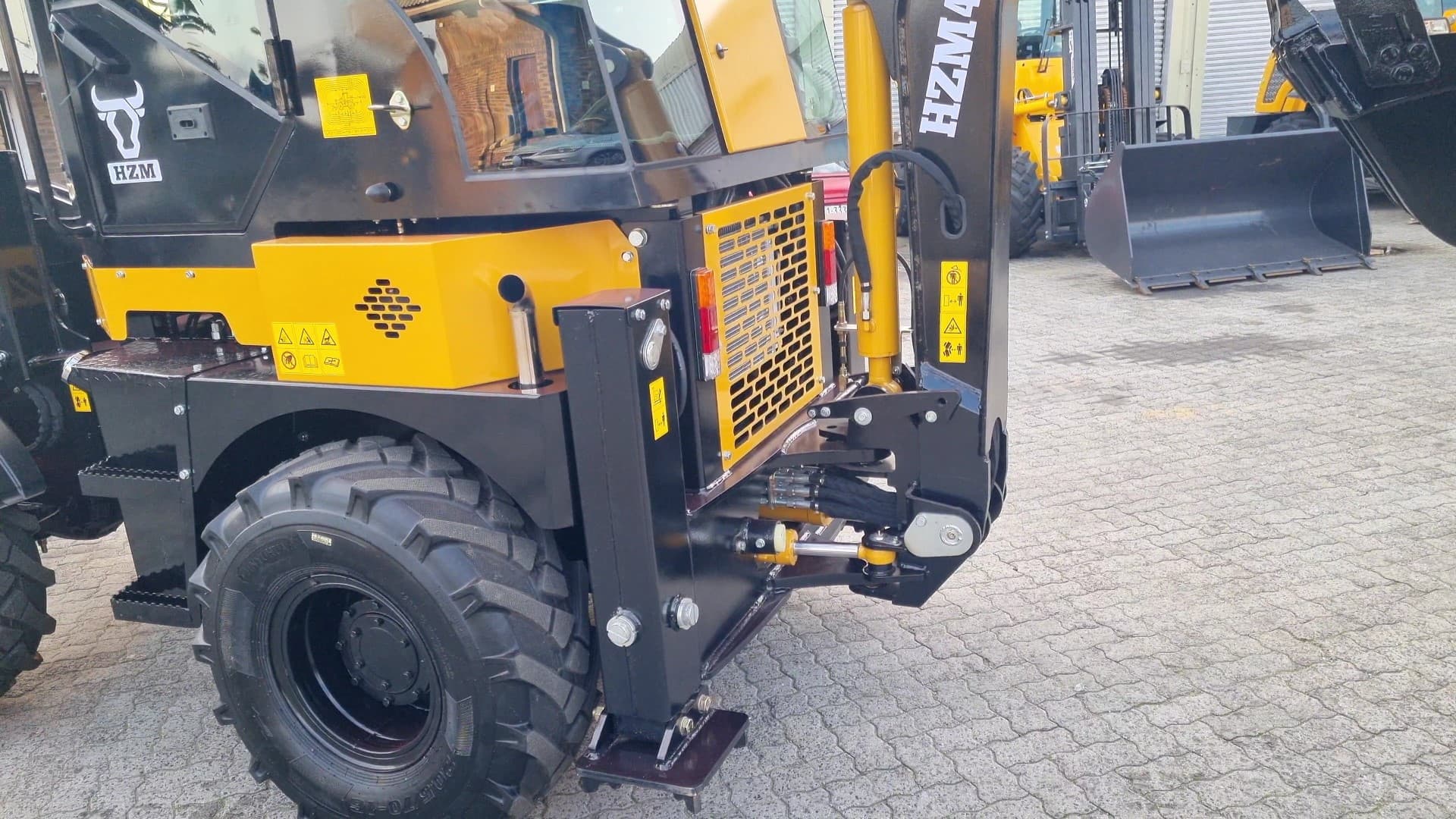

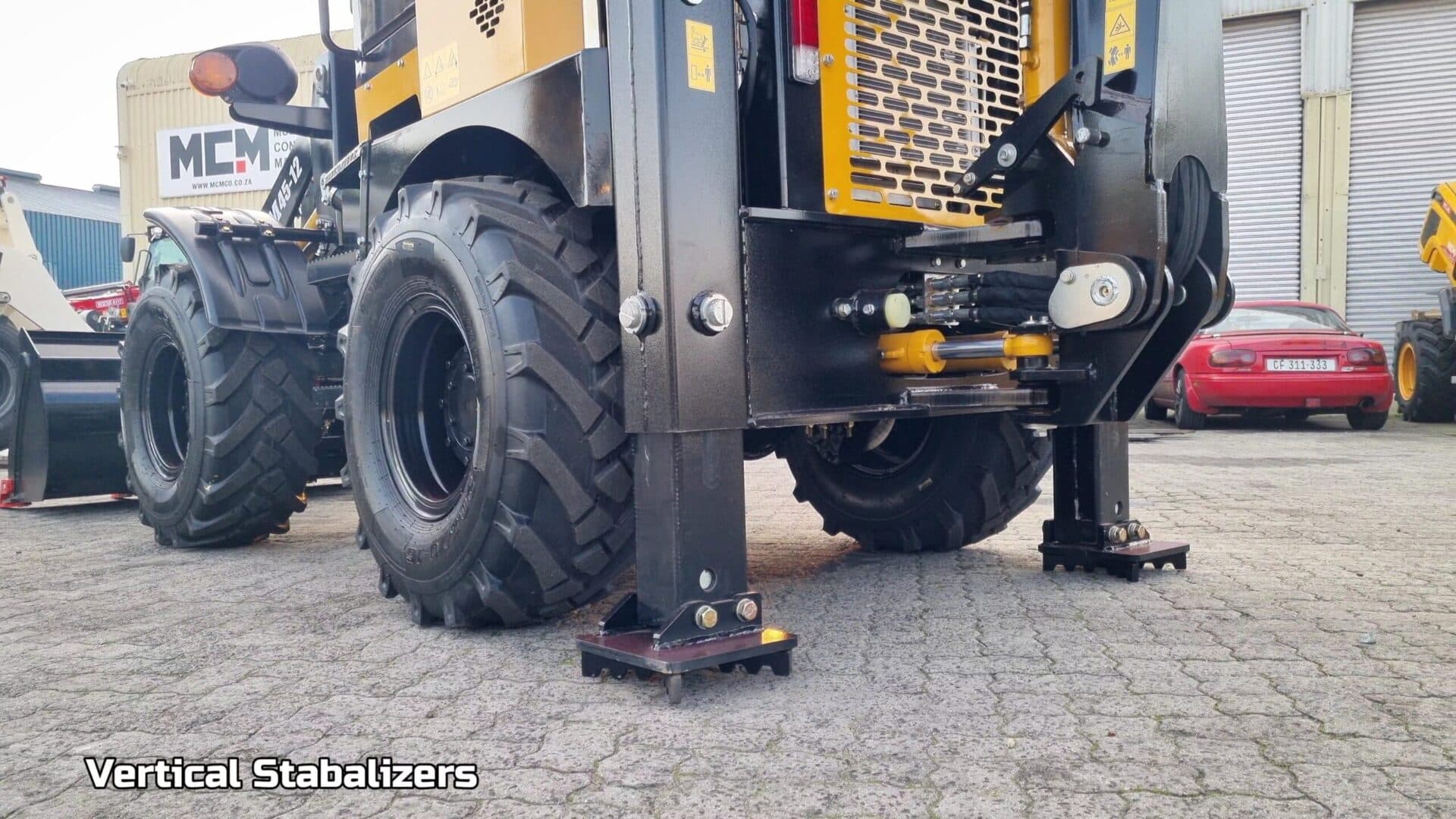

At the rear, the backhoe digs to 2 630 mm and swings through 170° with a 0.2 m³ bucket. Vertical stabiliser legs keep the machine steady while it digs trenches for irrigation, water and electrical lines, footings and drainage. Dig the trench with the backhoe, then turn around and backfill it with the loader, all with one machine.
40 kW Xinchai 490 Diesel Engine
A water-cooled, 4-cylinder Xinchai 490 diesel delivers 40 kW at 2 650 rpm. It drives through a 265 hydraulic torque converter with 2 forward and 2 reverse gears for smooth, easy operation, and a top speed of 18 km/h. Hydraulic steering keeps the 45-12S light and easy to handle on busy sites.
Tight 3 000 mm Turning Radius
Hydraulic steering turns the HZM 45-12S in a 3 000 mm radius, so it works comfortably in back yards, between buildings and on cramped residential and farm sites where space to manoeuvre is limited. At only 1 680 mm wide with 280 mm of ground clearance, it moves easily over uneven ground and through narrow access, saving time every time it repositions.
5.0
Based on 2 reviews
5 star
100%
4 star
0%
3 star
0%
2 star
0%
1 star
0%
FL
Frans Luck
HZM 45-12S TLB
Die TLB doen sy ding. Ons is besig om wingerd te vestig en ek's bly ek het my eie een vir hierdie job. Het my al heelwat gespaar in huur kostes.
C
Clive
HZM 45-12S TLB
I've been using the 45-12 TLB for just over a year now, and it’s been an outstanding investment for my business. The machine is incredibly durable and has handled everything I’ve thrown at it, from digging trenches to loading materials.
HZM 45-12S TLB — Frequently Asked Questions
How much does the HZM 45-12S TLB cost?
+
The HZM 45-12S TLB starts from R 475 000 excl. VAT at MCM Group. The final price depends on configuration and any attachments — contact your nearest branch or request a quote for current pricing and available specials.
How big and powerful is the HZM 45-12S TLB?
+
The HZM 45-12S TLB has an operating weight of 3500 kg and an engine power of 40 kW.
How deep can the HZM 45-12S TLB dig?
+
The HZM 45-12S TLB digs to a maximum depth of 2.63 m.
What bucket sizes and load does the HZM 45-12S TLB have?
+
The HZM 45-12S TLB has a 0.8 m³ front loader bucket, a 0.2 m³ backhoe bucket and a rated load of 1200 kg.
What is the HZM 45-12S TLB best for?
+
The HZM 45-12S TLB is best for small contractors and farms. Our TLB comparison puts all 12 TLBs side by side.
What is the HZM 45-12S TLB used for?
+
The HZM 45-12S TLB is a TLB used for loading, digging trenches and foundations, site clearing, material handling and general earthmoving on construction sites, farms and municipal works. It is built for South African conditions and backed by local parts and service support.
What is the difference between the HZM 45-12S TLB and the MCM 27X TLB?
+
On their spec sheets (the HZM 45-12S TLB first): engine power 40 kW against 37 kW (49.6 hp); operating weight 3500 kg against 2800 kg; maximum digging depth 2.63 m against 1.6 m; loader bucket capacity 0.8 m³ against 0.45 m³; backhoe bucket capacity 0.2 m³ against 0.04 m³; rated load 1200 kg against 1000 kg. Prices excl. VAT: HZM 45-12S TLB R 475 000; MCM 27X TLB from R 399 500. See the MCM 27X TLB.
What is the difference between the HZM 45-12S TLB and the HZM 45-12T TLB?
+
On their spec sheets (the HZM 45-12S TLB first): loader bucket capacity 0.8 m³ against 0.6 m³. The other figures are the same. Prices excl. VAT: HZM 45-12S TLB R 475 000; HZM 45-12T TLB R 499 500. See the HZM 45-12T TLB.
Can I finance the HZM 45-12S TLB?
+
Yes. MCM Group submits your finance application to multiple banks and asset-finance houses simultaneously — including Nedbank, WesBank and Standard Bank. Approval typically takes 48 to 72 hours and we handle the paperwork end-to-end.
What warranty and support comes with the HZM 45-12S TLB?
+
The HZM 45-12S TLB includes a local warranty, with genuine parts and technical support available through MCM Group's National Parts Division and four branches (Cape Town, George, Bloemfontein, Midrand). Service and warranty are handled in-country — no waiting on overseas suppliers.
Does MCM Group deliver the HZM 45-12S TLB nationwide?
+
Yes. MCM Group delivers the HZM 45-12S TLB anywhere in South Africa from our four branches (Cape Town, George, Bloemfontein, Midrand), by our own transporter or a third party, with transport quoted by deck space and delivery address. A machine in stock is prepared for collection or delivery the same or next day once payment is confirmed, and is delivered in most cases within 4 to 8 business days. A machine not in stock needs 7 to 10 working days, or up to 3 months depending on the machine and shipping.
Where can I buy the HZM 45-12S TLB in South Africa?
+
Buy the HZM 45-12S TLB from MCM Group at any of our four branches — Cape Town, George, Bloemfontein, Midrand — or request a quote on this page for delivery anywhere in South Africa, starting from R 475 000 excl. VAT. Phone +27 81 885 0535 or email sales@mcmco.co.za.
