At MCM, we’re passionate about providing innovative solutions for aerial work that prioritize safety, efficiency, and reliability. Our Cherry Picker range, the TCP Series of towable articulated boom lifts, is designed to tackle a variety of professional applications, from maintenance and construction to installation tasks at height. These compact yet powerful machines offer exceptional reach and towability, making them ideal for businesses and contractors who need versatile equipment that can be easily transported between job sites.
Whether you’re installing signage, or performing building maintenance, our Cherry Pickers combine robust performance with user-friendly features to ensure you get the job done effectively.
Overview of the MCM TCP Series

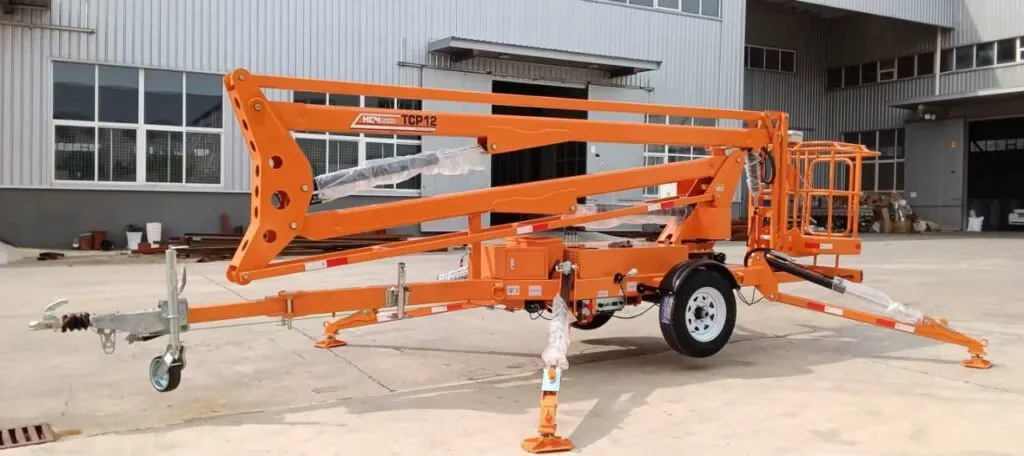

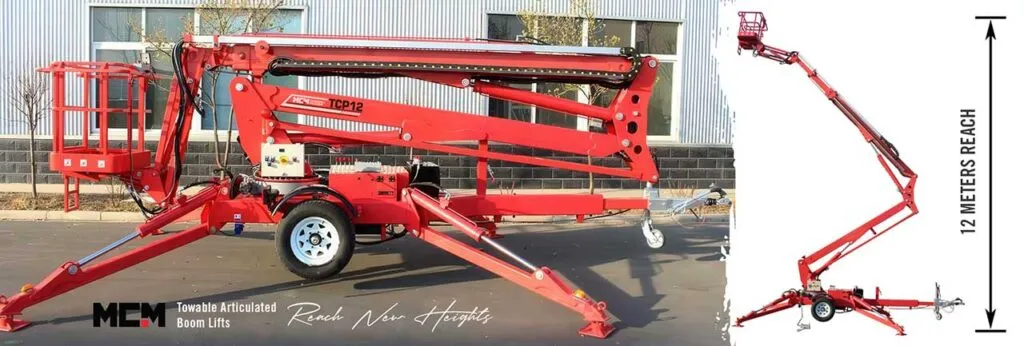

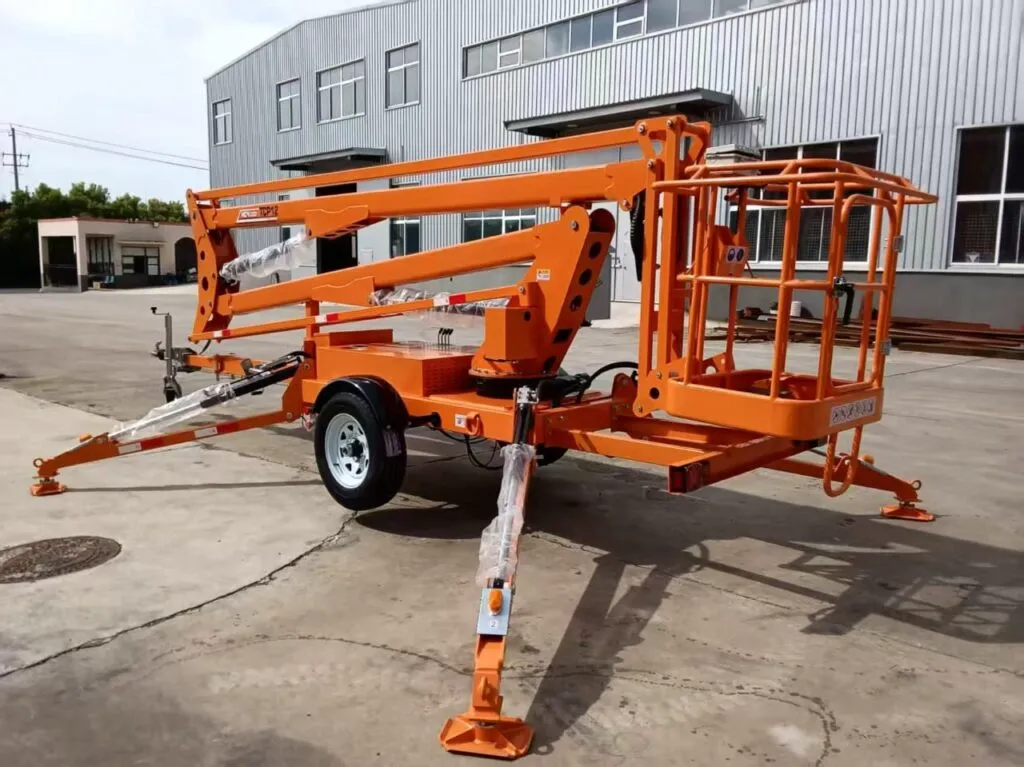

The MCM TCP Series Cherry Pickers are towable boom lifts engineered for professional aerial work. With models ranging from the TCP10 to the TCP22, these units provide lifting heights from 10m to 22m and working heights up to 24m. All models boast a consistent 200kg load capacity, ensuring they can handle operators and tools without compromise. Their compact design allows for easy towing behind standard vehicles, while straight-forward hydraulics and features make them a go-to choice for demanding environments.
These machines are built with precision in mind. The supporting legs provide stable stride distances, both horizontal and vertical, for secure operation on uneven terrain.
Detailed Specifications
Here’s a breakdown of the key specs across our TCP Series models:
| Model Type | Lifting Height | Working Height | Load Capacity | Platform Size (L*W) | Working Radius | Net Weight | Overall Size (LxWxH) | Supporting Legs Stride Distance (Horizontal/Vertical) | Wind Resistance Level |
|---|---|---|---|---|---|---|---|---|---|
| TCP10 | 10m | 12m | 200kg | 0.9*0.7m | 5.5m | 1655kg | 5.2x1.7x2.1m | 3.0m / 4.7m | ≤5 |
| TCP12 | 12m | 14m | 200kg | 0.9*0.7m | 6.5m | 2050kg | 6.2x1.7x2.1m | 3.6m / 4.7m | ≤5 |
| TCP14 | 14m | 16m | 200kg | 0.9*0.7m | 8.5m | 2500kg | 5.8x1.7x2.1m | 3.8m / 4.7m | ≤5 |
| TCP16 | 16m | 18m | 200kg | 1.0*0.7m | 10.5m | 2800kg | 6.8x1.7x2.2m | 3.9m / 4.0m | ≤5 |
| TCP18 | 18m | 20m | 200kg | 1.1m*0.7m | 11m | 2800kg | 7.1x1.8x2.2m | 3.8m / 4.8m | ≤5 |
| TCP20 | 20m | 22m | 200kg | 1.1m*0.7m | 11m | 3000kg | 6.8x1.9x2.3m | 3.9m / 4.9m | ≤5 |
| TCP22 | 22m | 24m | 200kg | 1.2*0.7m | 12m | 4500kg | 5.41x1.9x2.3m | 3.9m / 4.0m | ≤5 |
Key Features That Set MCM Cherry Pickers Apart
Our Cherry Pickers are packed with advanced features to enhance safety, durability, and ease of use. Here’s a highlight of what makes them stand out:
Power and Mobility Options
- Standard Diesel Motor: Reliable and equipped with a manual accelerator for precise control.
- Optional Switzerland Bucher DC Battery Motor: Eco-friendly electric option with a smart battery charger and charging socket available upon request.
- Optional AC choice.
Safety Enhancements
- Dead Man Switch and Waterproof Control Panels: Ensures operator safety with responsive controls.
- Tilt Angle Sensor: Prevents platform up/down if the body tilt exceeds 4°.
- Limited Switch for Safety Precaution: Adds an extra layer of protection.
- Basket Adjust Leveling Switch and Safety Locks: Prevents shaking during towing and keeps the platform horizontal.
- Hydraulic Oil Tank Filtration Alarm System: Alerts to potential issues before they become problems.
Durability and Design
- Germany Imported ALKO Brand Brakes: High-quality, free-included braking system.
- Precise Hydraulic Hose: Absolutely no oil leaks for reliable performance.
- Torsion Shaft with Shock Absorption: Paired with pneumatic rubber wheels and electric magnetic brake for smooth towing.

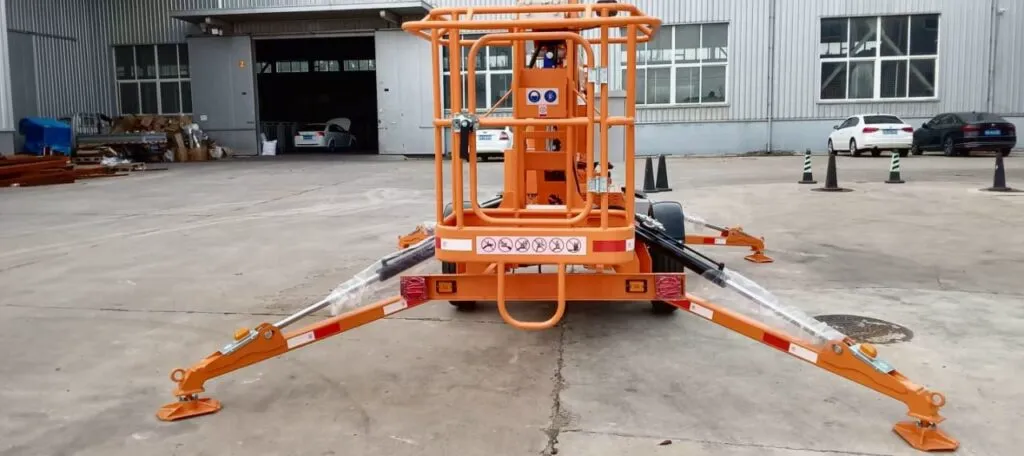

- 4pcs Automatic Hydraulic Supporting Legs: With flexible angle adjustment for stable setup on varied surfaces.
- Excellent Powder Coating Spray Paint: Provides a durable, weather-resistant finish.
- Compact Structure Design: Includes dismountable towing rod and neat wiring/hydraulic hoses.
Additional Conveniences
- Two Windows for Easy Maintenance: Quick access to internals.
- 360° Turn Plate with Speed Reducer Technology Motor: Smooth rotation for precise positioning.
- Telescopic Boom (optional): Extends reach efficiently.
- Durable Basket with Anti-Pinch Design: Includes ladder, door, and small cylinder under basket for horizontal stability.
- Rubber Balance Wheels: Enhance stability during operation.
These features make our Cherry Pickers not just tools, but reliable partners for your aerial work needs.
Why Choose MCM Cherry Pickers?
In a market full of options, MCM stands out by delivering machines that are straight-forward, versatile, and towable.. Their compact design means you can transport them easily, while the powerful hydraulics provide the reach you need for challenging jobs. Whether it’s for tree care, electrical installations, or building inspections, these boom lifts offer exceptional value, combining reliability with cost-effectiveness.
Our commitment to quality is evident in every detail.
Ready to Elevate Your Work?
If you’re looking to enhance your aerial work capabilities, explore our 2025 Cherry Picker range today. Contact MCM at one of our locations in Cape Town, Gauteng, or Free State, or visit www.mcmgroup.co.za for more details. Let’s help you reach new heights—safely and efficiently!
